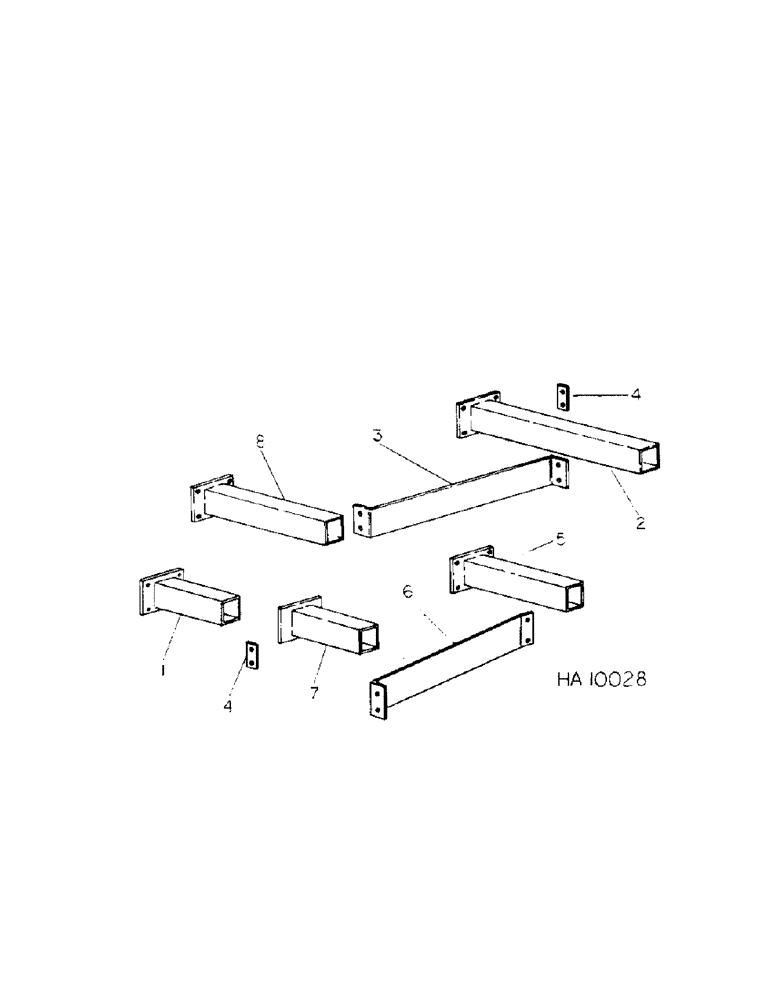

Запчасти Case IH 4700 (A-31[A]) - EXTENSIONS AND BRACES

1

811363C1

EXTENSION

ASSY, 7 in. frame, 178 mm

1шт.

2

811669C2

EXTENSION

ASSY, 25 in. frame, 635 mm

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

4шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

3

810621C1

BRACE

28.5 in. extension, 723 mm

1шт.

3

810908C1

BRACE

33 in. extension, 837 mm

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

(Not used this application)

1шт.

5

811362C2

EXTENSION

ASSY, 15 in. frame, 381 mm

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

4шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

6

(Not used this application)

1шт.

7

811367C1

TUBE ASSY.

EXTENSION ASSY, 10 in. frame, 254 mm

1шт.

8

811668C2

TUBE ASSY.,457.2 mm Length

EXTENSION ASSY, 18 in. frame, 457 mm

1шт.

8

811368C2

EXTENSION

ASSY, 20 in. frame, 508 mm

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

4шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
