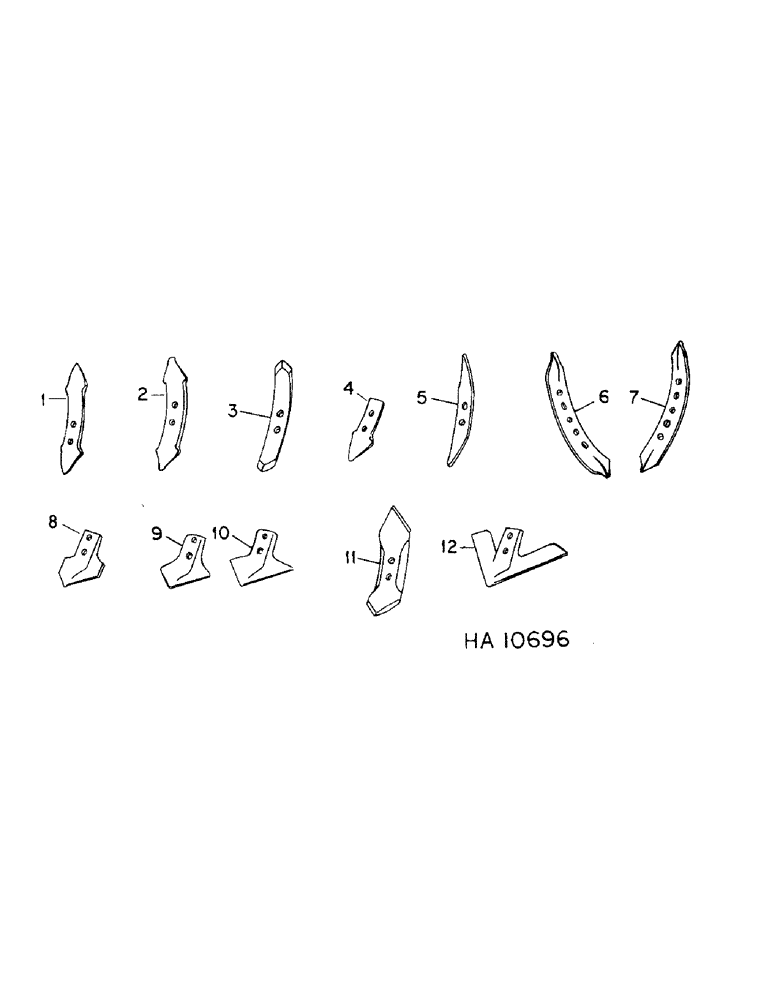

Запчасти Case IH 4700 (A-30[A]) - GROUND TOOL CONNECTING BOLTS FOR VIBRA CHISEL

1

596623R1

POINT

1-3/4 in reversible chisel, vibra shank

1шт.

1

811889C1

POINT

2 in reversible chisel, vibra shank

1шт.

2

811799C1

POINT

2 in reversible chisel, vibra shank

1шт.

3

811860C1

POINT

2 in reversible chisel 1/2 in ga, vibra chisel

1шт.

3

601986C1

POINT, 2 in reversible chisel 5/8 in ga, vibra chisel

1шт.

4

594227R1

TOOTH

POINT, 2 in pencil, vibra chisel

1шт.

5

602594R1

POINT

2 in reversible spike, vibra chisel

1шт.

6

594545R1

SHOVEL

3 in twisted LH, vibra chisel

1шт.

7

59546R1

SPARE PART

SHOVEL, 3 in twisted RH, vibra chisel

1шт.

8

591588R1

TIP

SHOVEL, 4-1/2 in, vibra chisel

1шт.

9

602276R2

SWEEP

SHOVEL, 8 in, vibra chisel

1шт.

10

602596R2

TIP

SHOVEL, 10 in, vibra chisel

1шт.

11

602595R1

TIP

SHOVEL, 4-1/2 in, vibra chisel

1шт.

12

591589R2

TIP

SWEEP, 7-1/2 in., vibra shank

1шт.

12

591590R2

TIP

SWEEP, 9 in, vibra shank

1шт.

12

602257R3

TOOTH

SWEEP, 12 in., 1/4 in ga, vibra chisel

1шт.

12

602257R3

TOOTH

SWEEP, 12 in., 5/16 in ga, vibra chisel

1шт.

12

603055R3

TIP

SWEEP, 14 in. 1/4 in ga, vibra chisel

1шт.

12

601988R3

SWEEP

14 in. 5/16 in ga, vibra chisel

1шт.

12

602592R3

TIP

SWEEP, 16 in. 1/4 in ga, vibra chisel

1шт.

12

602207R3

TOOTH

SWEEP, 16 in. 5/16 in ga, vibra chisel

1шт.

604472R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 plow type 5, for use on vibra chisel with two and three inch ground working tools

2шт.

PO21281

PLOW BOLT,1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 plow type 5, for use on vibra chisel with over three inch ground working tools

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

21148R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/8", Gr 2

BOLT, 7/16 x 1-3/8 plow type 1

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

2шт.

21331R1

WASHER

.469 x 1.250 x .054

1шт.
