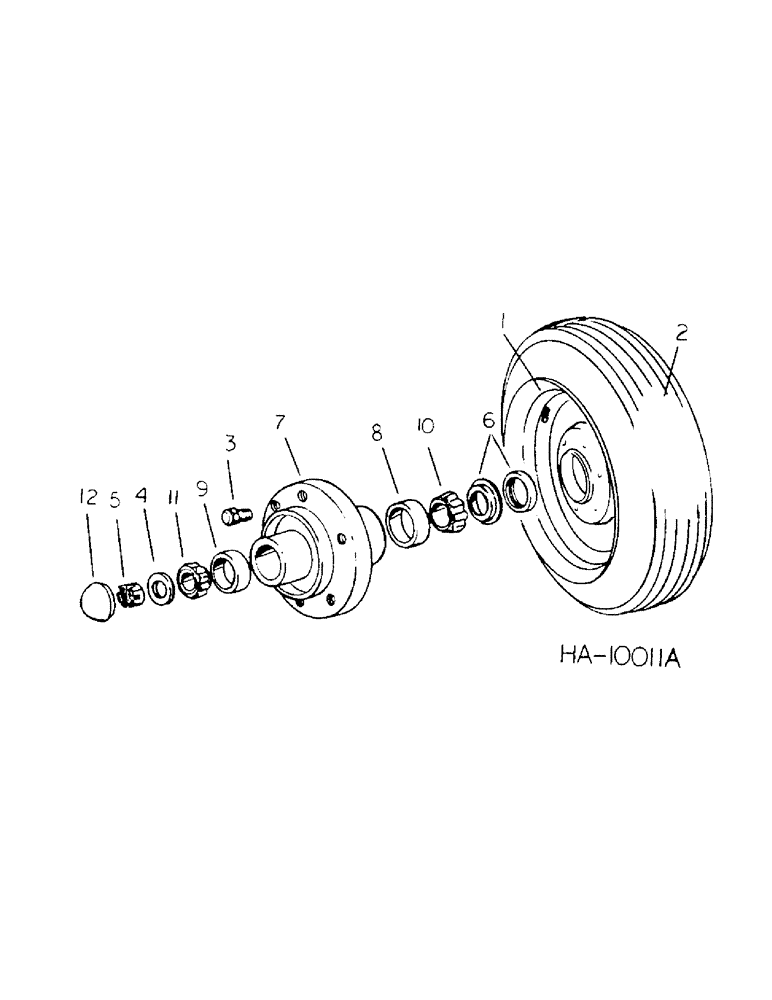

Запчасти Case IH 4700 (A-26) - WHEEL AND HUB-MAIN FRAME

1

811389C1

RIM

WHEEL, 14 x 6 KB, 31 to 41 ft wing models

4шт.

810768C1

VALVE

steel tubeless tire

4шт.

1

486101R2

RIM

WHEEL, 15 x 8 KB main, 44 to 51 ft double fold models

4шт.

810769C1

VALVE

steel tubeless tire

4шт.

2

TIRE, 9.5L 14 6 PR I-1 tubeless for use w/811389C1 wheel

1шт.

2

TIRE, 9.5L 15 8 PR I-1 tubeless for use w/486101R2 wheel

1шт.

3

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2-20 x 1-1/2 conical hd

24шт.

4

619373R1

WASHER

.906 x 2.000 x .064

4шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 hex sltd

4шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

4шт.

6

606556R91

OIL SEAL

SEAL ASSY, wheel hub oil

4шт.

7

606468R11

HUB

ASSY, main wheel frame, includes 1-663558R1, cup and 1-651817R1, cup

4шт.

8

663558R1

BEARING CUP

CUP, wheel hub inner bearing

4шт.

9

651817R1

BEARING CUP

CUP, wheel hub outer bearing

4шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

4шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing

4шт.

12

663906R1

CAP

wheel hub

4шт.
