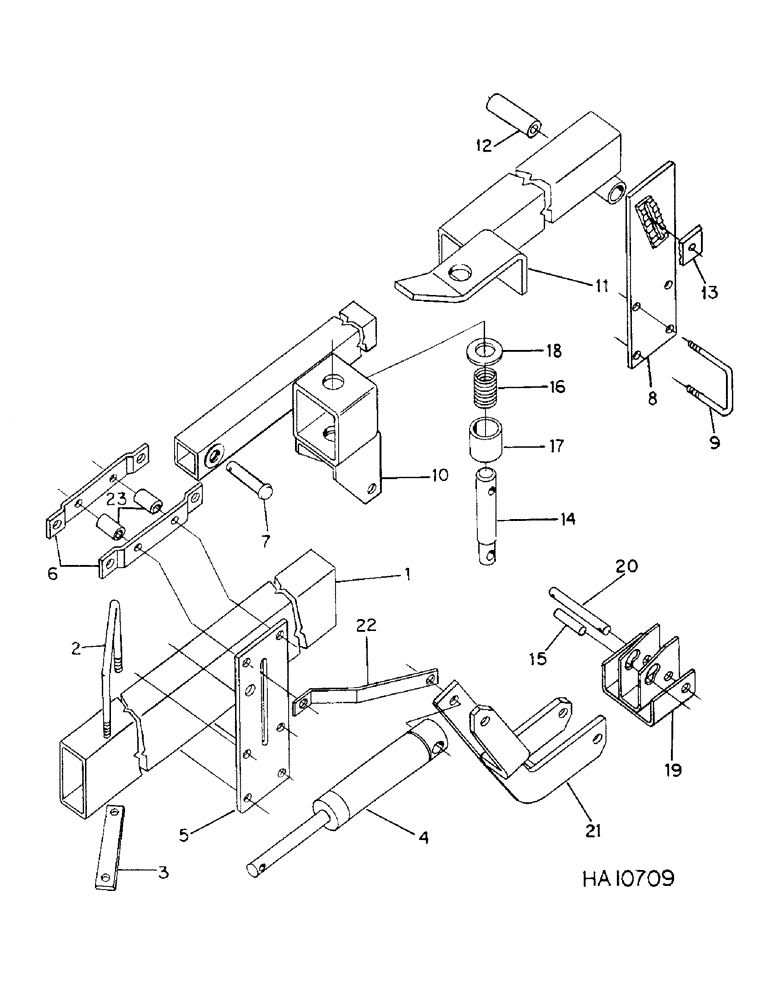

Запчасти Case IH 4700 (A-22) - AUTOMATIC WING TRANSPORT LOCK, LEFT SIDE FRONT VIEW SHOWN MACHINES BUILT PRIOR TO NOV 1984

1

FRAME ASSY, front main

1шт.

2

(Not used this application)

1шт.

3

(Not used this application)

1шт.

4

CYLINDER, hydraulic, Serial Range: refer-hydraulics

1шт.

5

811924C1

BAR

center support

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2 type 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

6

810457C1

SUPPORT

center

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

7

21401R1

HEADED PIN,3/4" x 2 3/4"

PIN, 3/4 x 2.750 hd type 5

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

8

813096C1

SUPPORT

ASSY, transport lock outer RH

1шт.

8

813097C1

SUPPORT

ASSY, transport lock outer LH

1шт.

9

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT, support mounting

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

813041C1

TUBE,164 mm Length

ASSY, inner LH, order 1284078C1

1шт.

10

813042C1

TUBE,164 mm Length

ASSY, inner RH, order 1284079C1

1шт.

11

813147C3

TUBE,1830 mm Length

ASSY, outer LH

1шт.

11

813148C3

TUBE,1830 mm Length

ASSY, outer RH

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

12

813099C1

SPACER

outer tube pivot

2шт.

13

813145C1

ADJUSTER

outer tube

1шт.

14

813102C1

PIN

transport locking

2шт.

616387R1

PIN,3/8" x 2", Coiled

2шт.

15

813103C1

PIN

lock pivot

2шт.

16

656345C2

SPRING

lock pin

2шт.

17

811925C1

SPACER

lock pin

2шт.

18

614451R1

WASHER

1.031 x 1.750 x .105

2шт.

19

813142C2

SUPPORT

ASSY, transport lock

2шт.

20

813100C1

PIN

lever pivot

2шт.

178374R1

WASHER

.531 x 1.250 x .054

4шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

4шт.

21

813048C2

LEVER

ASSY, lock LH

1шт.

21

813049C2

LEVER

ASSY, lock RH

1шт.

22

810384C1

SUPPORT

lock tie

2шт.

22635R1

HEADED PIN,1/2" x 1 1/4"

PIN, HEADED, 1/2 x 1 1/4 inch

1шт.

20601R1

WASHER

.531 x 1.250 x .105

3шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

23

651958R1

SPACER,3/4" Pipe x 2 1/4"

3/4 x 2.250 std pipe

2шт.
