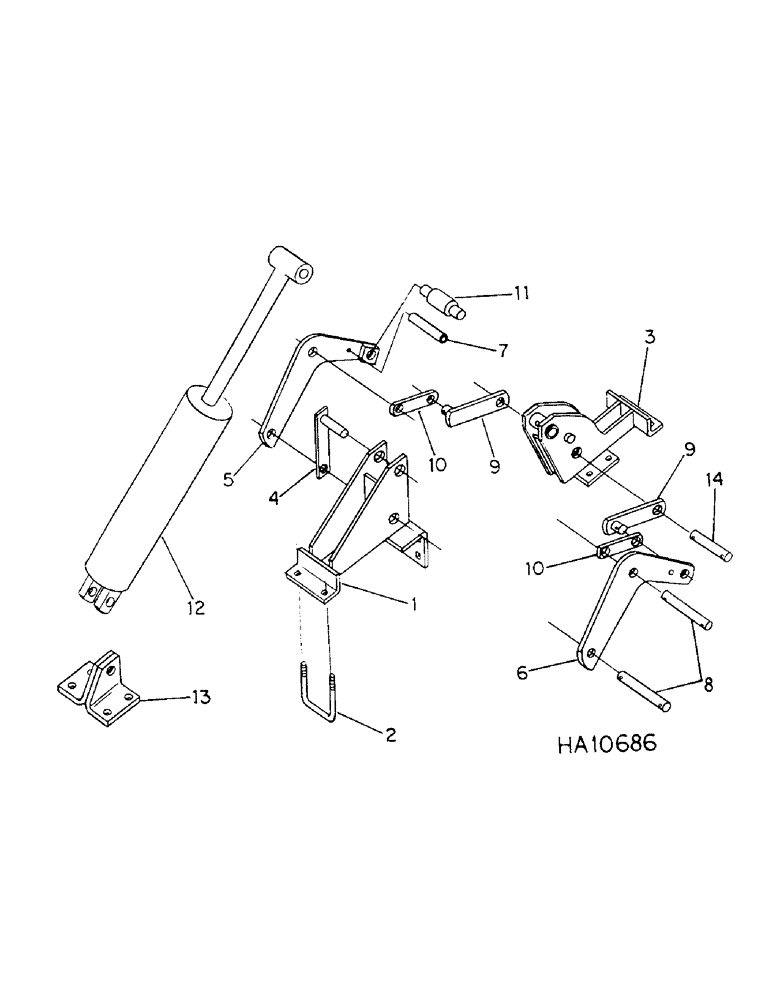

Запчасти Case IH 4700 (A-21) - SECONDARY WING FRAME EXTENSION REAR HINGES, FLOATING TYPE, FOR USE W/47 -52 SIZES DOUBLE FOLD MDLS

1

811956C1

HINGE

ASSY, wing frame inner

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT, inner hinge

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

3

811952C2

HINGE

ASSY, wing frame outer rear

2шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

4

811958C1

PIN

ASSY, hinge

2шт.

25540R1

WASHER,1 1/16" x 2" x .134", HDN

1.062 x 2.000 x .134 PHC hdn

4шт.

5

813184C1

LEVER

ASSY, wing lift LH rear and RH front

2шт.

6

813185C1

LEVER

ASSY, wing lift LH front and RH rear

2шт.

7

512690R1

SPACER,1/2" Pipe x 4 3/4"

1/2 x 4.750 std pipe

1шт.

189315

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

1/2 x 6-1/2 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

811962C1

PIN

pivot

4шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

8шт.

614451R1

WASHER

1.031 x 1.750 x .105

12шт.

609836R1

WASHER

1.031 x 1.750 x .054

4шт.

9

813181C1

PIVOT

ASSY, wing lift

4шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

4шт.

10

813640C1

BAR

wing lift control

4шт.

11

813189C1

PIN

roller

2шт.

12

CYLINDER, wing lift, refer to hydraulic system

1шт.

13

811961C2

SUPPORT

ASSY, wing lift cylinder

2шт.

14

810750C1

PIN

wing lift pivot

2шт.

609836R1

WASHER

1.031 x 1.750 x .054

6шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

4шт.
