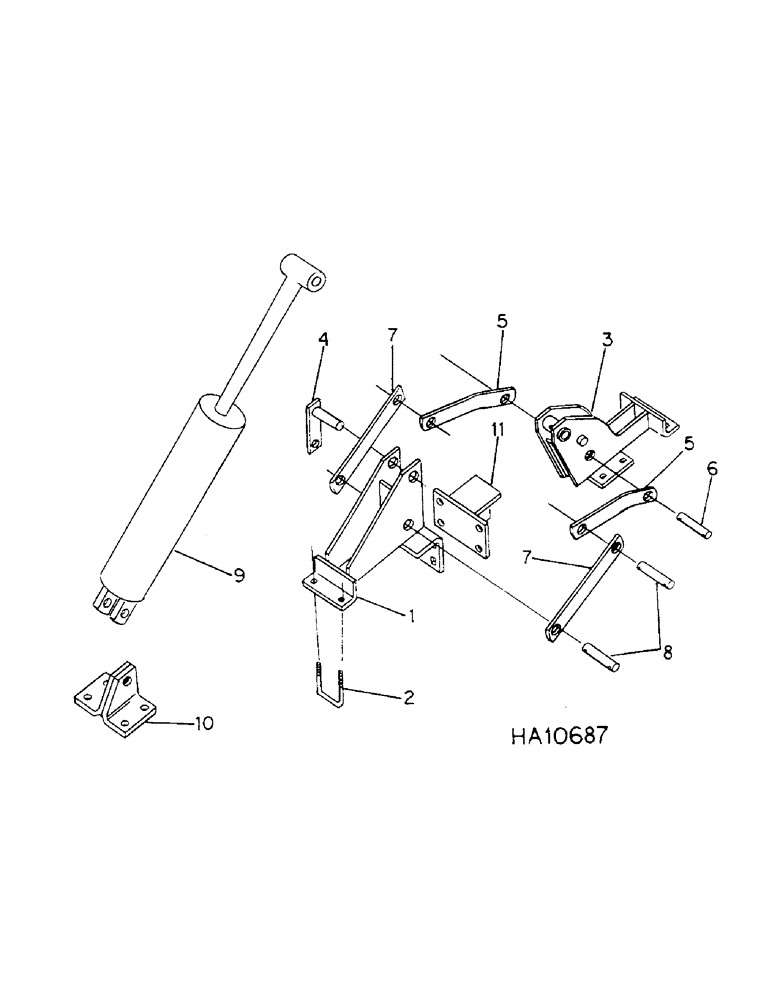

Запчасти Case IH 4700 (A-20) - SECONDARY WING FRAME EXTENSION REAR HINGES, RIGID TYPE, FOR USE W/44 DOUBLE FOLD MODELS

1

811956C1

HINGE

ASSY, wing frame inner

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT, inner hinges

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

3

811952C2

HINGE

ASSY, wing frame outer rear

2шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

4

811958C1

PIN

ASSY, hinge

2шт.

25540R1

WASHER,1 1/16" x 2" x .134", HDN

1.062 x 2.000 x .134 PHC hdn

4шт.

5

811963C1

BAR

wing lift

2шт.

6

810750C1

PIN

wing lift pivot

2шт.

609836R1

WASHER

1.031 x 1.750 x .054

6шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

4шт.

7

813191C1

BAR

wing lift arm

4шт.

8

811962C1

PIN

pivot

4шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

8шт.

614451R1

WASHER

1.031 x 1.750 x .105

11шт.

609836R1

WASHER

1.031 x 1.750 x .054

8шт.

9

CYLINDER, wing lift, refer to hydraulic system

1шт.

10

811961C2

SUPPORT

ASSY, wing lift cylinder

2шт.

11

810612C1

STOP

ASSY, front and rear

4шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.
