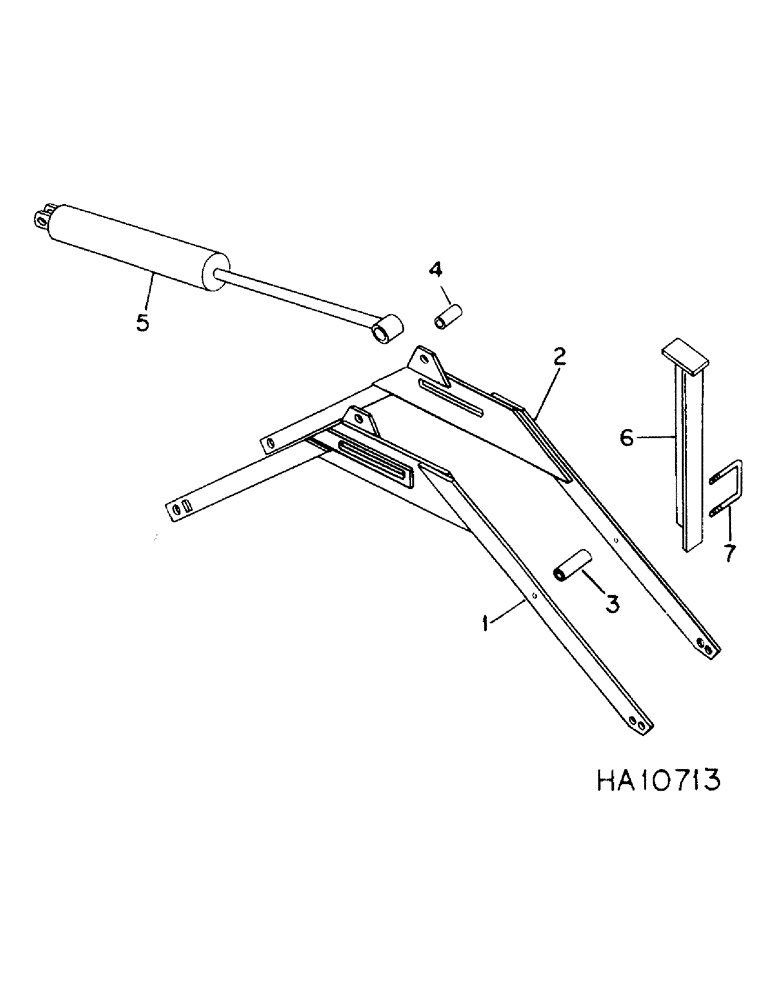

Запчасти Case IH 4700 (A-19) - WING LIFT SUPPORTS

1

810550C1

SUPPORT

ASSY, wing lift front LH and rear RH

2шт.

2

810551C1

SUPPORT

ASSY, wing lift front RH and rear LH

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

8шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6 type 5

2шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

810736C1

SPACER

.875 x 6.37 in wing lift

2шт.

4

810737C1

SPACER

.875 x 2.36 in wing lift

2шт.

5

CYLINDER, wing lift, refer to hydraulic system

1шт.

6

812343C1

SUPPORT

ASSY, extension frame, for use with double fold models

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
