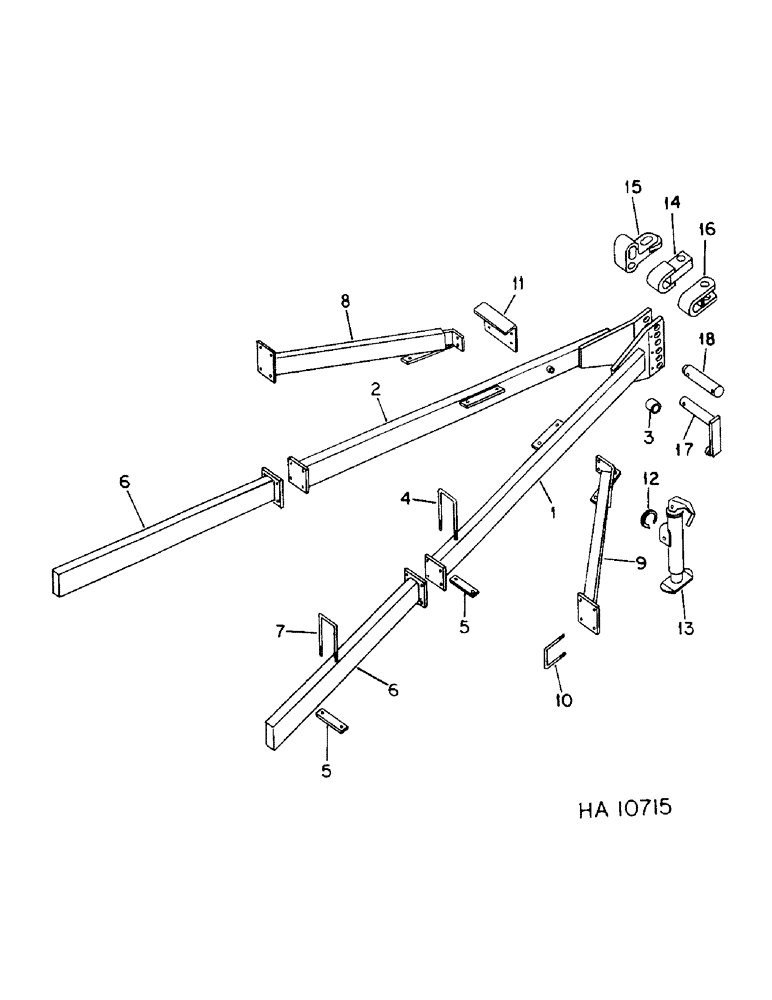

Запчасти Case IH 4700 (A-17) - HITCH

1

810530C2

BEAM

ASSY, hitch front RH

1шт.

2

810531C2

BEAM

ASSY, hitch front LH

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4 x 6 type 5

3шт.

280954

NUT,3/4"-10, G5

3шт.

3

850367C1

SPACER

safety chain

1шт.

597176R1

WASHER

.781 x 3 x .25

1шт.

4

810050C1

BOLT,U, 5/8" - 11 x 13.50

U-BOLT, front beam

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

812865C1

BAR

u-bolt clamping

10шт.

6

812448C1

BEAM

ASSY, hitch rear

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

8шт.

280954

NUT,3/4"-10, G5

8шт.

7

812864C1

U-BOLT,5/8" - 11 x 11.6"

rear beam

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

8

810547C1

BEAM

ASSY, hitch brace LH

1шт.

9

810548C1

BEAM

ASSY, hitch brace RH

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

10

597307R1

BOLT,U, 5/8" - 11 x 4.31"

U-BOLT, brace beam

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

11

810528C1

ANGLE

hitch brace tie

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

12

(Not used this application)

1шт.

13

810363C91

JACK ASSY.

JACK ASSY, hitch

1шт.

14

605866R91

TOW BAR

TONGUE ASSY, heavy duty hitch, for use w/crawler tractors or four wheel drive tractors

1шт.

15

810442C1

TOW BAR

TONGUE, heavy duty rigid hitch

1шт.

16

597324R1

CLEVIS

ASSY, heavy duty standard hitch

1шт.

17

810536C1

PIN

ASSY, hich, for use w/605866R91 tongue and 597324R1 clevis

1шт.

621006C1

PIN

hitch klik

1шт.

21718R1

WASHER

1.531 x 2.250 x .105

1шт.

18

810462C1

PIN

hitch, for use w/810442C1 tongue

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

22051R1

WASHER

1.531 x 2.250 x .054

2шт.

61023C2

TOW BAR

TONGUE hitch

1шт.
