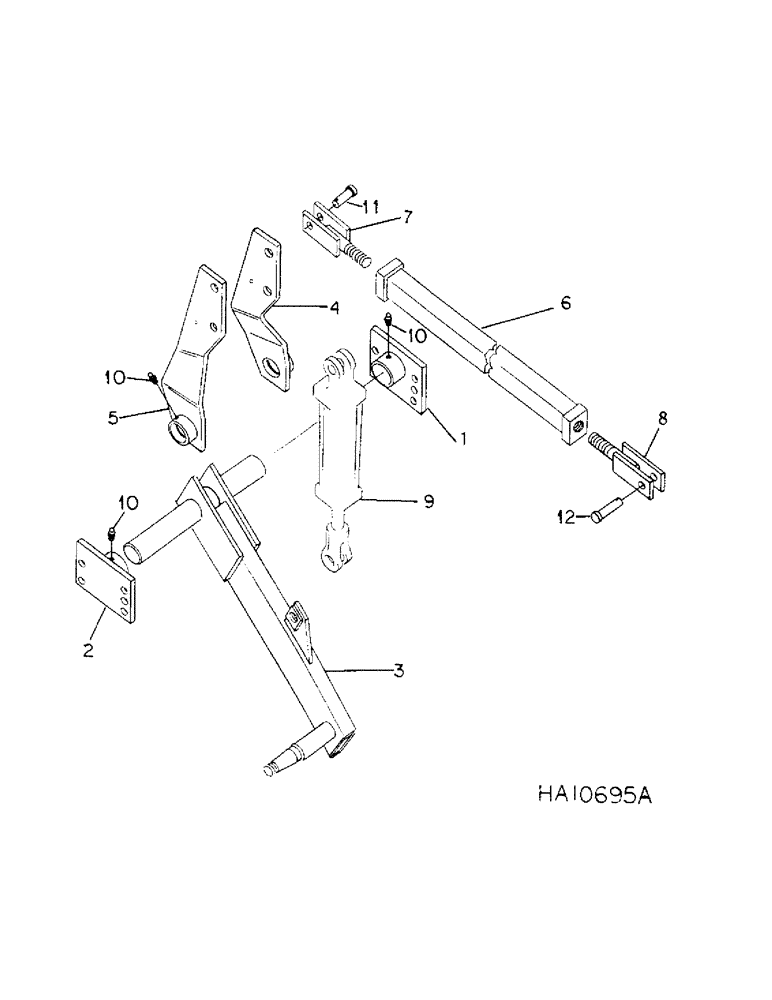

Запчасти Case IH 4700 (A-16) - SECONDARY WING EXTENSION AXLE AND DEPTH CONTROL, FOR USE WITH DOUBLE FOLD MODELS

1

810473C1

SUPPORT

ASSY, axle

2шт.

2

810473C1

SUPPORT

ASSY, axle

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

8шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

3

813084C91

AXLE

ASSY, wing frame extension LH

1шт.

1284027C3

SPINDLE

1шт.

3

813085C91

AXLE

ASSY, wing frame extension RH

1шт.

1284027C3

SPINDLE

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

2шт.

467750R1

WASHER

.781 x 1.500 x .105

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

4

813710C1

SUPPORT

ASSY, axle cylinder LH

2шт.

5

813711C1

SUPPORT

ASSY, axle cylinder RH

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

811982C1

ROD

ASSY, cylinder support truss

2шт.

7

811975C1

CLEVIS

ASSY, truss rod LH

2шт.

8

811976C1

CLEVIS

ASSY, truss rod RH

2шт.

9849649

NUT,1 1/4"-7, G5

2шт.

9

CYLINDER, depth control, refer to hydraulic system

1шт.

10

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

8шт.

11

25419R1

PIN

1 x 2.750 hd type 5

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

12

22457R1

HEADED PIN,1" x 4"

PIN, 1 x 4. hd type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.
