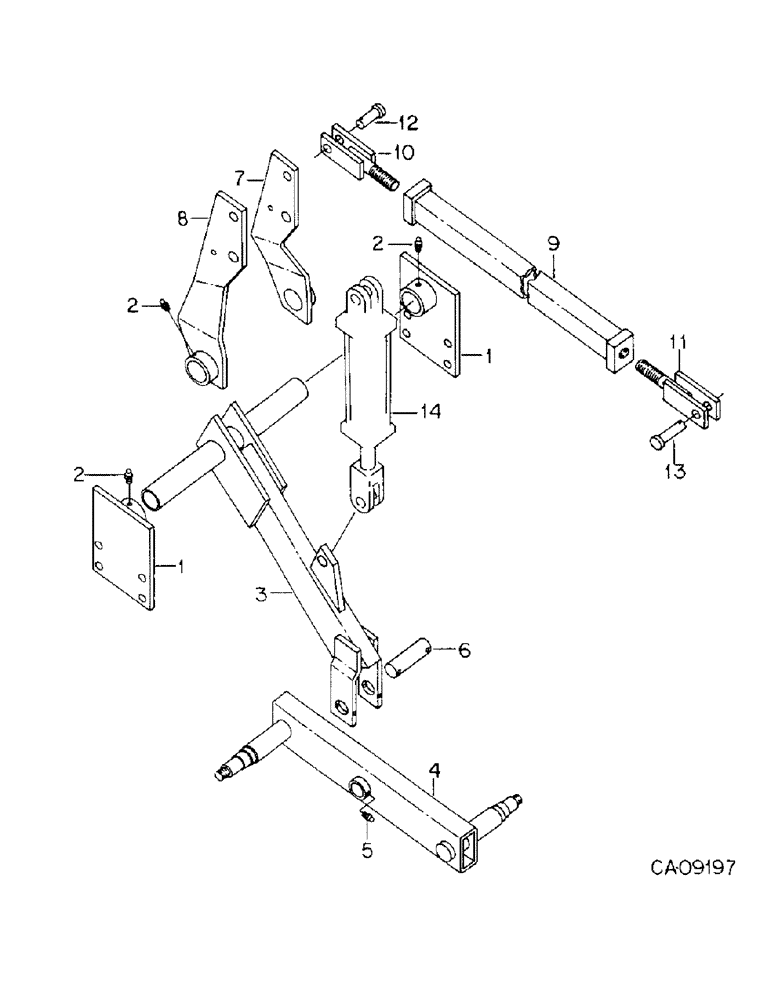

Запчасти Case IH 4700 (A-14) - WING FRAME ROCKSHAFT WITH AXLE AND DEPTH CONTROL, MACHINES W/AXLE PIVOT THRU AXLE TUBE

1

810503C1

SUPPORT

ASSY, wing frame LH

2шт.

1

810504C1

SUPPORT

ASSY, wing frame RH

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

8шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

2

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

8шт.

3

1284023C1

ROCKSHAFT

ASSY, wing frame

1шт.

4

1284065C91

TUBE ASSY.

AXLE ASSY, wheel

2шт.

467750R1

WASHER

.781 x 1.500 x .105

4шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

4шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

4шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 UNF lub

4шт.

6

1279363C1

PIN

pivot

2шт.

1284022C1

LARGE PLATE

1шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

4шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 znd hex lock

4шт.

7

813710C1

SUPPORT

ASSY, rockshaft cyl LH

2шт.

8

813711C1

SUPPORT

ASSY, rockshaft cyl RH

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

811981C1

ROD

ASSY, cyl support truss

2шт.

10

811975C1

CLEVIS

truss rod LH

2шт.

11

811976C1

CLEVIS

truss rod RH

2шт.

9849649

NUT,1 1/4"-7, G5

2шт.

12

25419R1

PIN

1 x 2.750 hd type 5

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

13

22457R1

HEADED PIN,1" x 4"

PIN, 1 x 4 hd type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

14

CYLINDER, depth control, refer to hydraulic system

1шт.
