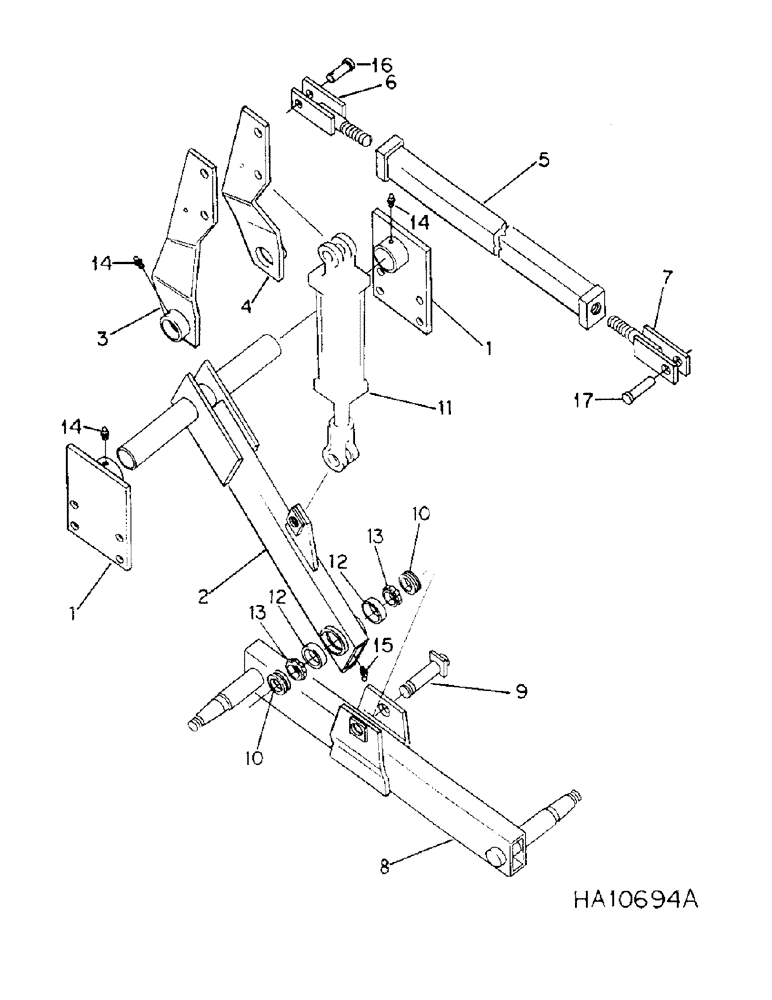

Запчасти Case IH 4700 (A-12) - WING FRAME ROCKSHAFT WITH AXLE AND DEPTH CONTROL, MACHINES W/AXLE PIVOT THRU ROCKSHAFT TUBE

1

810503C1

SUPPORT

ASSY, wing frame LH

2шт.

1

810504C1

SUPPORT

ASSY, wing frame RH

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

8шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

2

810499C1

SHAFT

ROCKSHAFT ASSY, wing frame, replaced by 1284023C1, for service also furnish

2шт.

1284023C1

ROCKSHAFT

1шт.

1284065C91

TUBE ASSY.

AXLE

1шт.

1279363C1

PIN

1шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

4шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 znd hex lock

4шт.

3

813711C1

SUPPORT

ASSY, wing frame rockshaft cylinder RH

2шт.

4

813710C1

SUPPORT

ASSY, wing frame rockshaft cylinder LH

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

811981C1

ROD

ASSY, cylinder support truss

2шт.

6

811975C1

CLEVIS

ASSY, truss rod LH

2шт.

7

811976C1

CLEVIS

ASSY, truss rod RH

2шт.

9849649

NUT,1 1/4"-7, G5

2шт.

8

AXLE ASSY, wing frame LH

1шт.

8

AXLE ASSY, wing frame RH, order package 1284361C91

1шт.

619373R1

WASHER

.906 x 2.000 x .164 pln

4шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex jam

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

9

813121C1

STUD

STUD ASSY, axle pivot

2шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-NF slt type 5

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

10

813159C2

SEAL

ASSY, axle pivot

4шт.

11

CYLINDER, depth control, refer to hydraulic system

1шт.

12

651817R1

BEARING CUP

CUP, axle pivot bearing

4шт.

13

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, axle pivot bearing

4шт.

14

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

8шт.

15

19628R91

NIPPLE, LUBE

FITTING, 1/8 pipe thd 45D lub

2шт.

16

25419R1

PIN

1 x 2.750 hd type 5

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

17

22457R1

HEADED PIN,1" x 4"

PIN, 1 x 4. hd type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

1284361C91

PACKAGE

axle, replaces axles 811540C91 & 811541C91, consists of

1шт.

1284065C91

TUBE ASSY.

AXLE ASSY

1шт.

467750R1

WASHER

.781 x 1.500 x .105

2шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

1284022C1

LARGE PLATE

PLATE

2шт.

1279363C1

PIN

1шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

2шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 znd hex lock

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 UNF lub

2шт.

INSTRUCTIONS, installing (NSS)

1шт.
