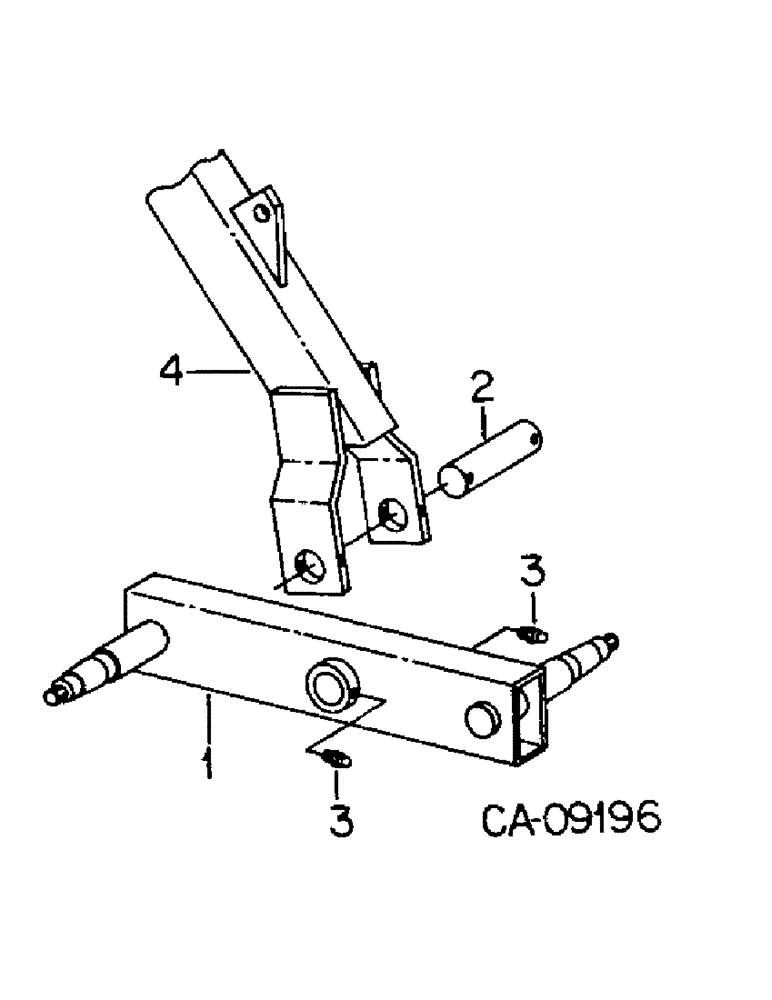

Запчасти Case IH 4700 (A-10) - MAIN FRAME AXLE MACHINES WITH AXLE PIVOT THRU AXLE TUBE

1

1284064C91

TUBE ASSY.

AXLE ASSY, wheel

2шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex jam

4шт.

619373R1

WASHER

.906 x 2.000 x .164 pln

4шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

4шт.

2

1279363C1

PIN

pivot

2шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

4шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 znd hex lock

4шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 UNF lub

4шт.

4

ROCKSHAFT

1шт.

1337614C1

PACKAGE

axle pivot

1шт.
