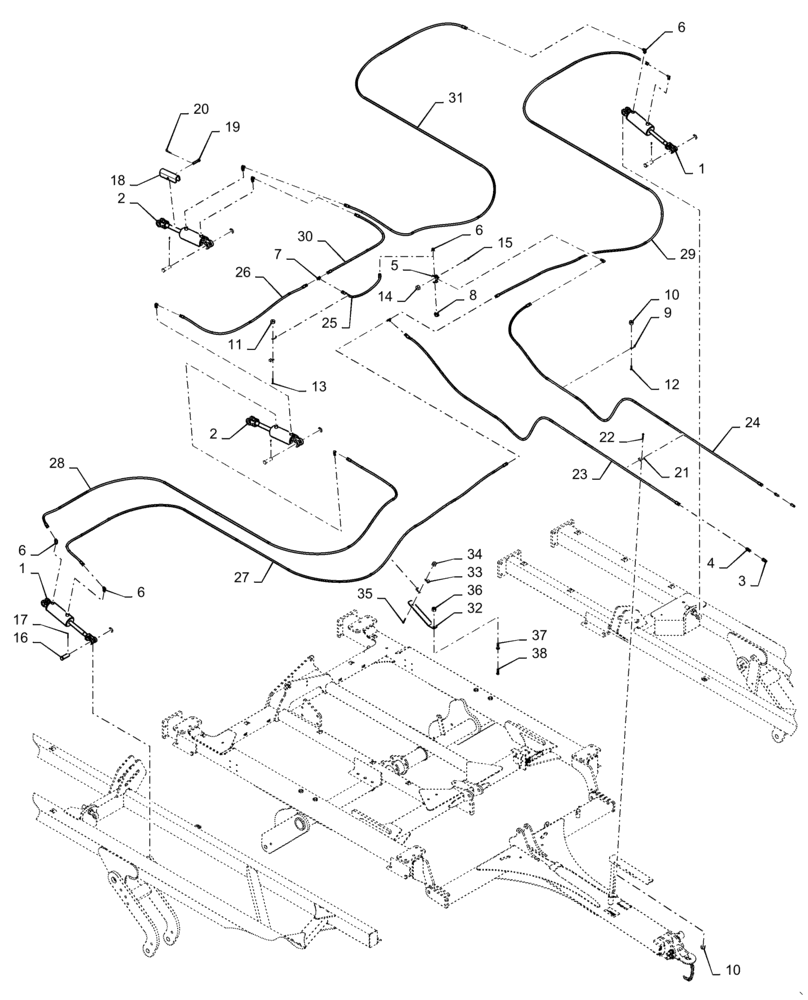

Запчасти Case IH TRUE-TANDEM 375 (35.106.AA[07]) - TRANSPORT HYDRAULICS 375 37 FOOT (35) - HYDRAULIC SYSTEMS

1

47455517

HYDRAULIC CYLINDER

4.25 X 8 Chrome Rod

2шт.

2

47460302

HYDRAULIC CYLINDER

4.5 X 8 Chrome Rod

2шт.

3

25705041

COUPLING

3/4"

2шт.

4

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

5

396150A1

VALVE, CONTROL

Depth

1шт.

6

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

10шт.

7

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

8

214389

PLUG,3/4" - 16 ORB

1шт.

9

22510700

HOSE CLAMP,15.86mm

3/8"

19шт.

10

88902

NUT,3/8"-16

19шт.

11

9628503

NUT,3/8"-16, G5

1шт.

12

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

17шт.

13

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

1шт.

14

86992212

NUT

2шт.

15

280622

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

2шт.

16

84156994

CLEVIS PIN

8шт.

17

88182

COTTER PIN,1/4" OD x 2" L

8шт.

18

47666377

STOP

Transport

2шт.

19

14810251

HEADED PIN,15.88mm OD x 96.77mm L

2шт.

20

14720411

COTTER PIN

2шт.

21

06200125

HOSE CLAMP

2шт.

22

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

23

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8" X 185"

1шт.

24

435694A1

HYDRAULIC HOSE

3/8" X 190"

1шт.

25

1336840C1

HYDRAULIC HOSE

3/8" X 25"

1шт.

26

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

3/8" X 75"

1шт.

27

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

3/8" X 275"

1шт.

28

1284292C1

HYDRAULIC HOSE

3/8" X 245"

1шт.

29

47629209

HYDRAULIC HOSE

3/8" X 270"

1шт.

30

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8" x 55"

1шт.

31

139522C2

HOSE

3/8" X 255"

1шт.

32

47519212

PLATE

Support

2шт.

33

22510700

HOSE CLAMP,15.86mm

3/8"

4шт.

34

88902

NUT,3/8"-16

2шт.

35

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

36

85700693

NUT,5/8" - 11, Gr C

2шт.

37

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

2шт.

38

280508

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

2шт.
