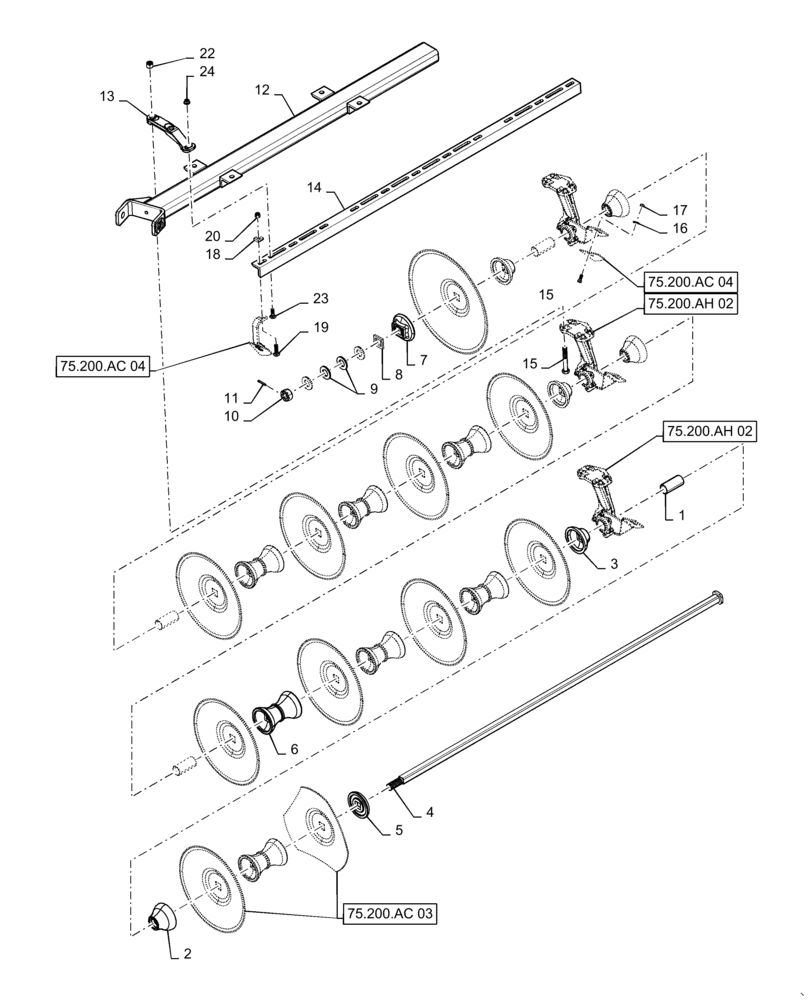

Запчасти Case IH TRUE-TANDEM 375 (75.200.AI[08]) - RIGHT REAR WING-375 RIGID GANG WITH 9 IN. SPACING (75) - SOIL PREPARATION

1

86983480

BUSHING,49.28mm ID x 55.17mm OD x 122mm L

3шт.

2

437774A1

SPOOL

3шт.

3

437775A1

SPOOL

3шт.

4

447943A1

PLOW BOLT

1шт.

5

60615C1

WASHER

1шт.

6

437773A1

SPOOL

7шт.

7

549973R2

SQ HOLE WASHER

1шт.

8

87428606

NUT

1шт.

9

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

1шт.

10

84151572

SLOTTED NUT

1шт.

11

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

1шт.

12

47559314

TUBE

1шт.

13

86988730

MOUNTING PARTS

3шт.

14

47720515

ANGLE

1шт.

15

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

6шт.

16

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

6шт.

17

86992215

LOCK NUT,1/2"-13, GC

6шт.

18

87623346

WASHER,16.66mm ID x 38.1mm OD x 13.72mm Thk

8шт.

19

84180924

CARRIAGE BOLT

8шт.

20

85700693

NUT,5/8" - 11, Gr C

8шт.

21

47686201

BOLT

6шт.

22

87681198

NUT,Hex, 7/8"-9, 0.45 high

6шт.

23

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

3шт.

24

84180923

FLANGE NUT

3шт.
