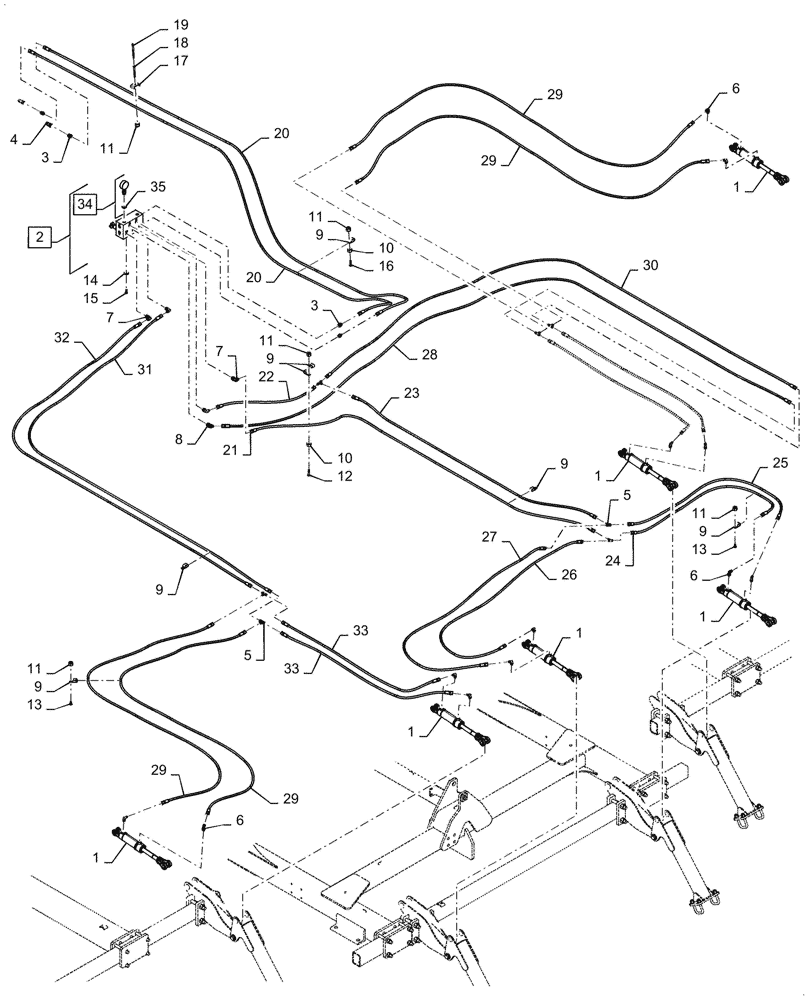

Запчасти Case IH TRUE-TANDEM 375 (35.525.AA[10]) - HYDRAUILC BASKET 31 FOOT 375 (35) - HYDRAULIC SYSTEMS

1

47404915

HYDRAULIC CYLINDER

2.0 X 4"

6шт.

2

47442359

VALVE SECTION

Combination, Incl 34, 35

1шт.

3

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

4шт.

4

25705041

COUPLING

3/4"

2шт.

5

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

7шт.

6

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

12шт.

7

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

8

84313

ELBOW,45 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

1шт.

9

22510700

HOSE CLAMP,15.86mm

33шт.

10

9628503

NUT,3/8"-16, G5

3шт.

11

88902

NUT,3/8"-16

20шт.

12

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

13

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

15шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

15

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

2шт.

17

06200125

HOSE CLAMP

2шт.

18

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

19

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

2шт.

20

810606C1

FLEXIBLE HOSE

1/4" X 195"

2шт.

21

1254530C2

HYDRAULIC HOSE

1/4" X 130"

1шт.

22

1254527C2

HYDRAULIC HOSE

1/4" X 37"

1шт.

23

1284291C1

HYDRAULIC HOSE

1/4" X 95"

1шт.

24

810205C1

HYDRAULIC HOSE,6.35mm ID x 1820mm L, SAE 100R17

1/4" X 70"

1шт.

25

97478C1

HOSE,6.35 mm ID x 1905.00 mm, SAE 100 R1

1/4" X 75"

1шт.

26

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

1/4" X 90"

1шт.

27

1284291C1

HYDRAULIC HOSE

1/4" X 95"

1шт.

28

1261441C1

HYDRAULIC HOSE

1/4" X 230"

1шт.

29

315711A1

HOSE,6.35mm ID x 3555mm L

1/4" X 140"

4шт.

30

47629269

HYDRAULIC HOSE

1/4" X 190"

1шт.

31

407167A1

HOSE ASSY.

1/4" X 175"

1шт.

32

97647C1

HYDRAULIC HOSE,12.70 mm ID x 4318.00 mm, SAE 100 R1

1/4" X 170"

1шт.

33

147878C1

HOSE

1/4" X 65"

2шт.

34

47933428

Pressure, 1500 Psi, Incl 35

GAUGE

2шт.

35

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.
