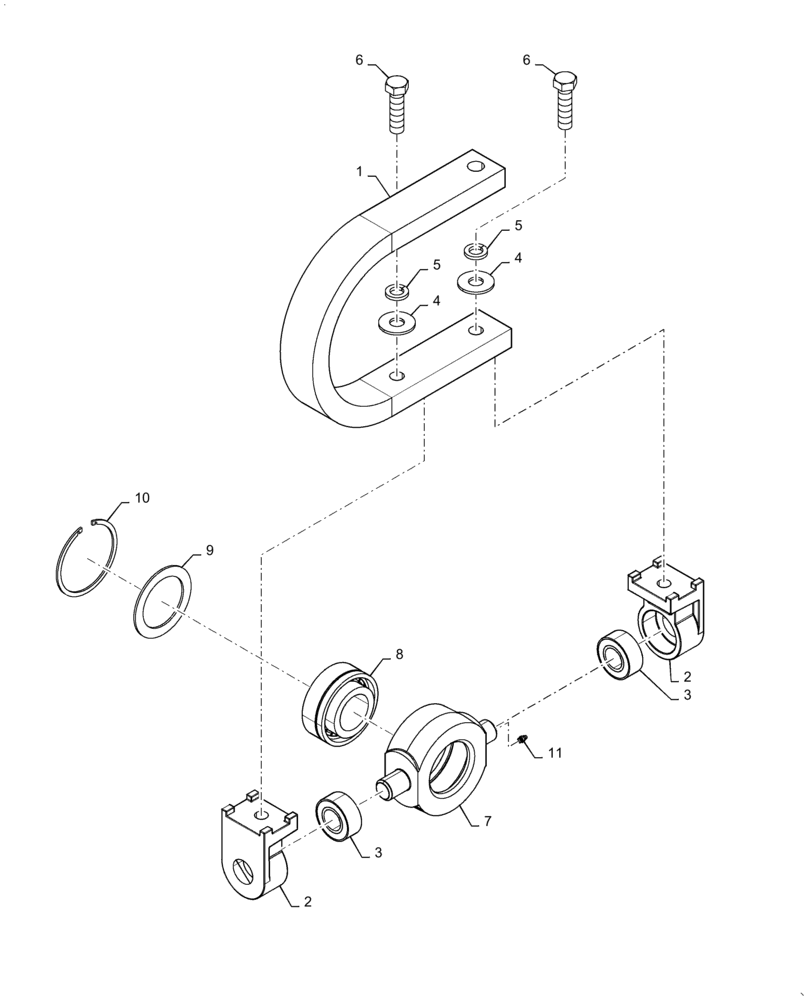

Запчасти Case IH TRUE-TANDEM 375 (75.200.AH[03]) - CUSHION BEARING (75) - SOIL PREPARATION

1

86988372

SPRING

Cushioned

1шт.

2

195109A1

TRUNNION

Pivot

2шт.

3

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

2шт.

4

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

6

280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

2шт.

7

193907A1

HOUSING, BEARING,109.971 mm ID x 133 mm OD x 64 mm

1шт.

8

409556A1

BEARING, BALL,55.56mm ID x 110mm OD x 55.56mm W

1шт.

9

193929A1

WASHER,79 mm ID x 109 mm OD x 3.35 mm

1шт.

10

87016938

SNAP RING,#433, 4.641", Int

1шт.

11

87414

LUBE NIPPLE,1/4" - 28

1шт.
