(75.200.AI[73]) - RIGHT FRONT WING-375 CUSHION GANG WITH 9 IN. SPACING

Запчасти Case IH TRUE-TANDEM 375 (75.200.AI[73]) - RIGHT FRONT WING-375 CUSHION GANG WITH 9 IN. SPACING (75) - SOIL PREPARATION

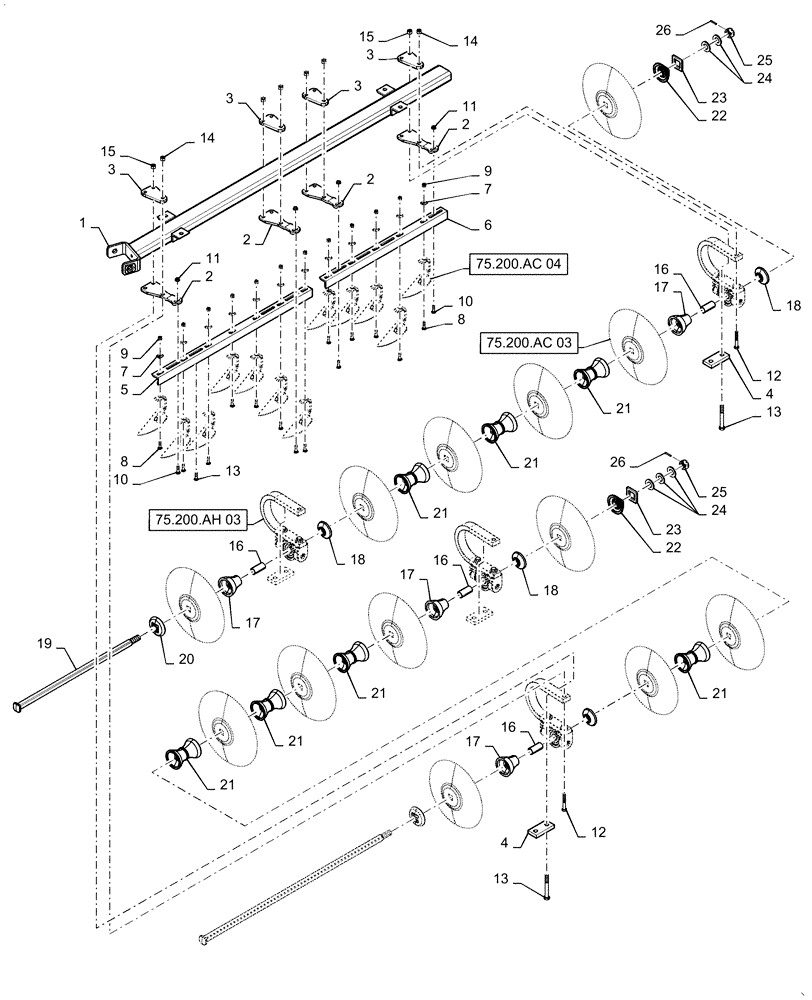

Схема запчастей Case IH TRUE-TANDEM 375 - (75.200.AI[73]) - RIGHT FRONT WING-375 CUSHION GANG WITH 9 IN. SPACING (75) - SOIL PREPARATION
75.200.ac 04
1
14
21
3
19
11
15
16
22
24
14
2
2
15
18
25
8
25
4
26
7
9
22
20
16
13
9
17
17
16
18
18
21
3
21
16
24
21
12
10
13
3
2
21
3
4
7
12
2
6
21
8
10
23
5
26
17
21
23
17
13
11
75.200.ah 03
75.200.ac 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47477450

TUBE

Wing Gang Large

1шт.

2

47401689

PLATE

Mounting Gang Scraper

4шт.

3

47401630

PLATE

Gang Mount 3 x 5"

4шт.

4

47481252

PLATE

Strap Gang

4шт.

5

47720510

ANGLE

9" Spacing

1шт.

6

47720513

ANGLE

9" Scraper

1шт.

7

87623346

WASHER,16.66mm ID x 38.1mm OD x 13.72mm Thk

12шт.

8

84180924

CARRIAGE BOLT

5/8"-11 x 2.5"

12шт.

9

85700693

NUT,5/8" - 11, Gr C

12шт.

10

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

4шт.

11

84180923

FLANGE NUT

5/8"-11

4шт.

12

87490802

BOLT

7/8"-9 x 7"

4шт.

13

88945

BOLT,Hex, 3/4" - 10 x 8", Gr 5

8шт.

14

87681198

NUT,Hex, 7/8"-9, 0.45 high

4шт.

15

280375

NUT,3/4"-10, GC

8шт.

16

86983480

BUSHING,49.28mm ID x 55.17mm OD x 122mm L

2шт.

17

86983463

SPOOL

9" Bearing Long

2шт.

18

86983464

SPOOL

9" Bearing Short

2шт.

19

447938A1

PLOW BOLT

Square

1шт.

20

60615C1

WASHER

Head

1шт.

21

437773A1

SPOOL

Spacing 9" Heavy

3шт.

22

549973R2

SQ HOLE WASHER

End

1шт.

23

87428606

NUT

Square Hole

1шт.

24

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

1шт.

25

84151572

SLOTTED NUT

1 1/2"-6

1шт.

26

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

1шт.
