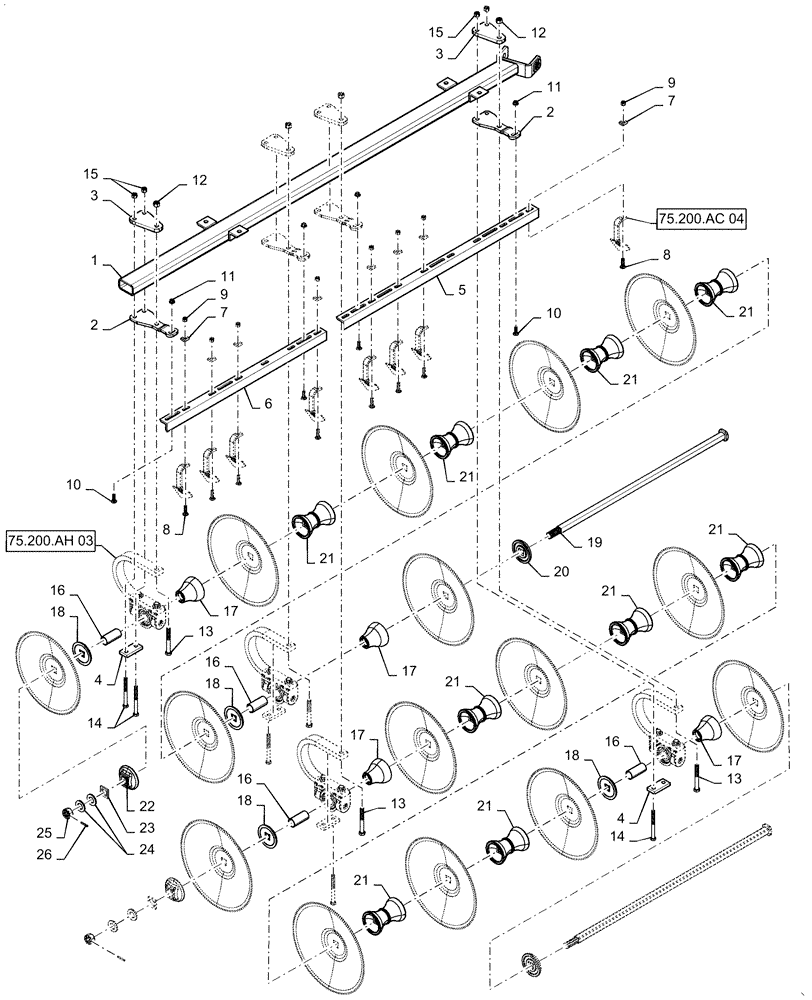

Запчасти Case IH TRUE-TANDEM 375 (75.200.AI[85]) - LEFT FRONT WING-375 CUSHION GANG WITH 9 IN. SPACING (75) - SOIL PREPARATION

1

47545199

TUBE

Wing Gang Large

1шт.

2

47401689

PLATE

Mounting Gang Scrapers

4шт.

3

47401630

PLATE

Gang Mount 3 x 5"

4шт.

4

47481252

PLATE

Strap Gangs

4шт.

5

47720511

ANGLE

8 Blade 8 Scraper 9" Spacing

1шт.

6

47720506

ANGLE

7 Blade 6 Scraper 9" Spacing

1шт.

7

87623346

WASHER,16.66mm ID x 38.1mm OD x 13.72mm Thk

14шт.

8

84180924

CARRIAGE BOLT

5/8"-11 x 2.5"

14шт.

9

85700693

NUT,5/8" - 11, Gr C

14шт.

10

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

4шт.

11

84180923

FLANGE NUT

5/8"-11

4шт.

12

87490802

BOLT

7/8"-9 x 7"

4шт.

13

87681198

NUT,Hex, 7/8"-9, 0.45 high

4шт.

14

88945

BOLT,Hex, 3/4" - 10 x 8", Gr 5

8шт.

15

280375

NUT,3/4"-10, GC

8шт.

16

86983480

BUSHING,49.28mm ID x 55.17mm OD x 122mm L

2шт.

17

86983463

SPOOL

Bearing 9" Long

2шт.

18

86983464

SPOOL

Bearing 9" Short

2шт.

19

447939A1

PLOW BOLT

Square

1шт.

20

60615C1

WASHER

Head

1шт.

21

437773A1

SPOOL

Spool Spacing 9" Heavy

4шт.

22

549973R2

SQ HOLE WASHER

End

1шт.

23

87428606

NUT

Square

1шт.

24

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

1шт.

25

84151572

SLOTTED NUT

1-1/2"-6

1шт.

26

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

1шт.
