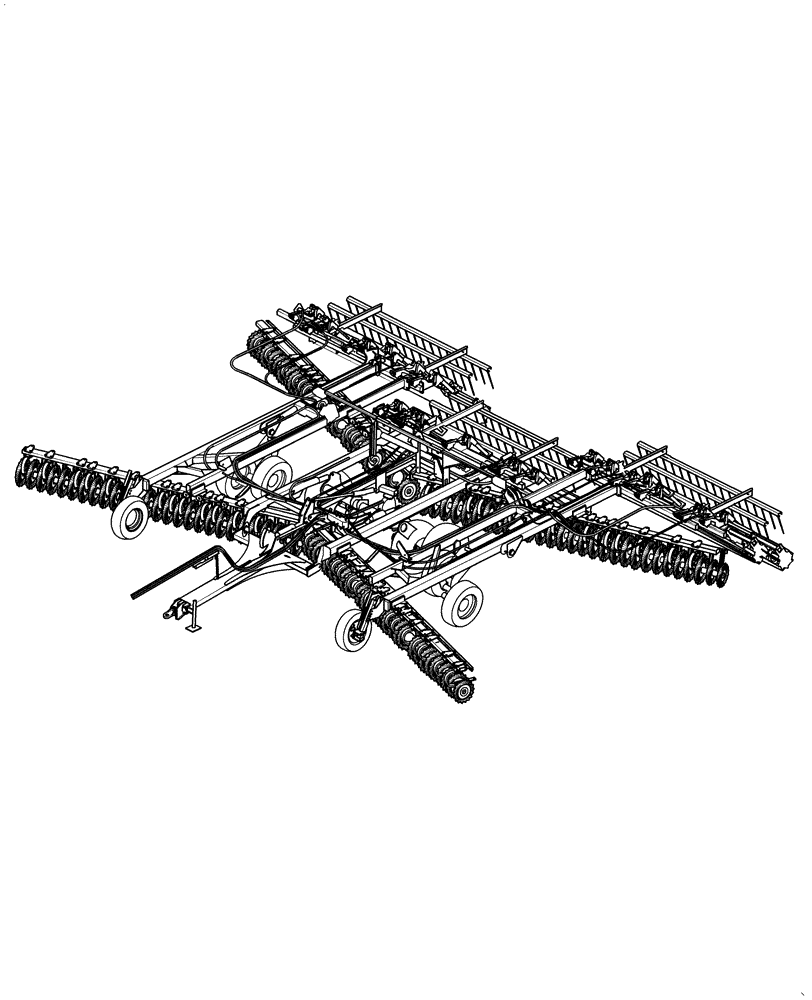

Запчасти Case IH TRUE-TANDEM 375 (05.100.01) - INITIAL STOCKING LIST (05) - SERVICE & MAINTENANCE

1

ST740B

BALL BEARING,55.58mm ID

Rigid Gang Bearing

2шт.

2

47451691

BEARING CONE

Rolling Basket

2шт.

3

409556A1

BEARING, BALL,55.56mm ID x 110mm OD x 55.56mm W

Trunion Gang Bearing

2шт.

4

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Outer 8 Bolt Hub Inner 6 Bolt Hub

2шт.

5

3216619R91

TAPERED BEARING,55mm ID x 26mm W

Inner 8 Bolt Hub

2шт.

6

36726

BEARING CONE,31.75mm ID x 16.76mm W

Outer 6 Bolt Hub

2шт.

7

86983480

BUSHING,49.28mm ID x 55.17mm OD x 122mm L

Gang Bearing

2шт.

8

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

Rock Shaft

2шт.

9

298624A1

VALVE

Hydraulic Leveling

1шт.

10

33404416

TINE

Coil Harrow

5шт.

11

396150A1

VALVE, CONTROL

Depth Control

1шт.

12

242130A1

SUPPORT

Holder Rigid Bearing Standard

2шт.

13

84238032

DUST CAP

8 Bolt Hub

2шт.

14

28477700

HUB CAP

6 Bolt Hub

2шт.

15

47595348

MODULE

Lights

1шт.

16

84151572

SLOTTED NUT

Arbor Bolt

2шт.

17

21932750

SEAL

8 Bolt Hub

2шт.

18

145769C91

OIL SEAL

6 Bolt Hub

2шт.

19

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

Arbor Bolt

2шт.

20

87567027

SCRAPER BLADE

Left

1шт.

21

87566995

SCRAPER

Left

1шт.

22

87567021

SCRAPER BLADE

Right

1шт.

23

87567013

SCRAPER

Right

1шт.

24

47639555

SEAL KIT

Hydrulic Leveling Cylinder

1шт.

25

47639366

SEAL KIT

Transport Lift Cylinder 47719404

1шт.

26

47638924

SEAL KIT

Wing Lift/ Transport Lift Cylinder 47719399

1шт.

27

47638913

SEAL KIT

Wing Lift Cylinder 47719392

1шт.

28

47638792

SEAL KIT

Wing Fold Cylinder 47719766

1шт.

29

47638856

SEAL KIT

Wing Fold Cylinder 47719762

1шт.

30

47430171

SEAL KIT

2 x 4Hydraulic Basket Cylinder

1шт.

31

47638830

SEAL KIT

Hydraulic Cylinder 47719768 47719415

1шт.

32

47453057

SPINDLE

Rolling Basket Spindle

2шт.

33

86988372

SPRING

Cushion Bearing C-Hanger

2шт.

34

195109A1

TRUNNION

Pivot Gang Bearing

2шт.

35

60615C1

WASHER

End Gang Bolt

2шт.

36

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor Bolt

2шт.

37

549973R2

SQ HOLE WASHER

Gang Bolt

1шт.

38

87343929

BOLT

5/8" Wheel

8шт.

39

198056

WHEEL BOLT,1/2" - 20 x 1.031"

6 Bolt Hub

6шт.

40

554480R1

WHEEL NUT

5/8" 8 Bolt Hub

8шт.

41

47401689

PLATE

Gang Scraper

2шт.

42

87442998

PLOW DISC

20" x 5mm Sharp

2шт.

43

87443000

PLOW DISC

22" x 6.5 mm Sharp

2шт.

44

87443002

PLOW DISC

22.5" x 6.5 mm Sharp

2шт.

45

87443003

PLOW DISC

24" x 5 mm Sharp

2шт.

46

87443004

PLOW DISC

24" x 6.5mm Sharp

2шт.

47

87401019

PLOW DISC

508 x 5 mm Tri-Lobe

2шт.

48

87442999

PLOW DISC

22" x 5 mm Sharp

2шт.

49

87443001

PLOW DISC

22.5" x 5mm Sharp

2шт.

50

87443005

PLOW DISC

24.5" x 5mm Sharp

2шт.

51

87443006

PLOW DISC

24.5" x 6.5 mm Sharp

2шт.
