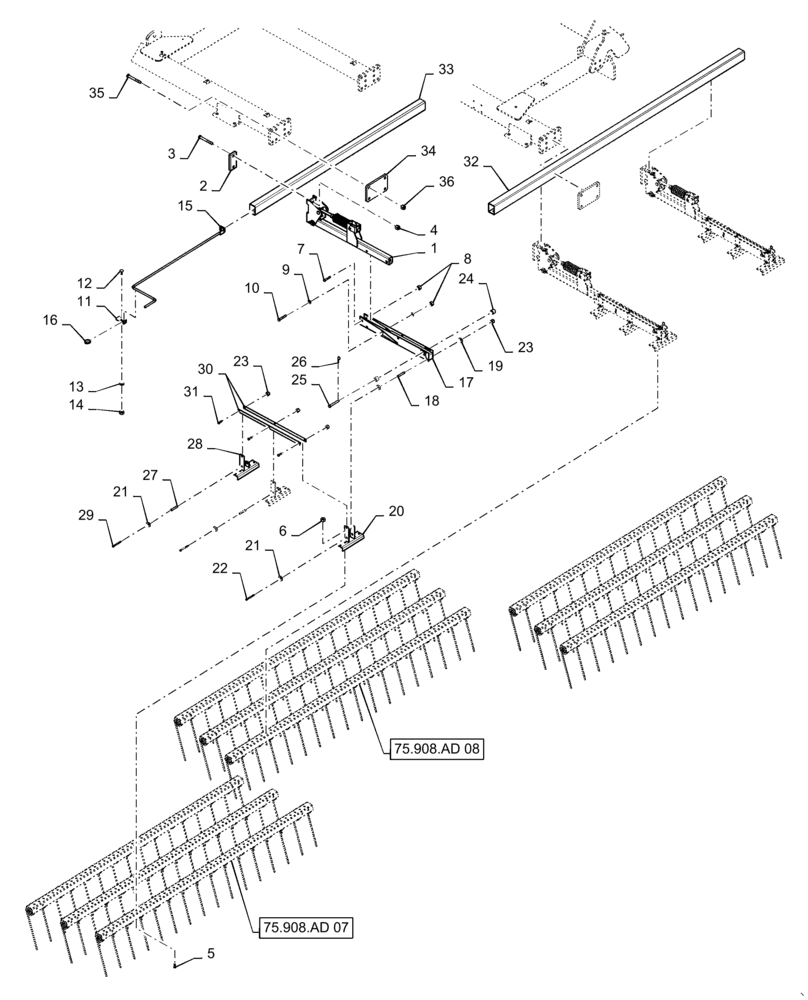

Запчасти Case IH TRUE-TANDEM 345 (75.908.AD[03]) - THREE BAR COIL TINE 28 FOOT (75) - SOIL PREPARATION

1

06251400

CHANNEL

Tine Harrow Painted

6шт.

2

06250334

SPACER

6шт.

3

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

12шт.

4

280375

NUT,3/4"-10, GC

12шт.

5

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

36шт.

6

86992215

LOCK NUT,1/2"-13, GC

36шт.

7

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

6шт.

8

280431

NUT,1/2"-13, G5

12шт.

9

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

12шт.

10

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

6шт.

11

87404819

BRACKET

Crank Storage

1шт.

12

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

13

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

14

86992213

NUT

.375 Hex

1шт.

15

06251395

CRANK

Handle

1шт.

16

D33805

PIN

1шт.

17

06251331

LINKAGE

Pivot Painted

1шт.

18

84411570

BUSHING

Pivot Plated

1шт.

19

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

20

06250155

CHANNEL

Mount Painted

1шт.

21

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

22

280796

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

1шт.

23

88902

NUT,3/8"-16

6шт.

24

06250210

BUSHING

Stop

2шт.

25

14810290

HEADED PIN

1шт.

26

14720411

COTTER PIN

1/8" x 2"

1шт.

27

84411068

SPACER

Pivot

2шт.

28

06250150

CHANNEL

Mount Painted

2шт.

29

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

2шт.

30

06250358

LINK

Tine Long Painted

2шт.

31

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

32

47710333

TUBE

1шт.

33

47706889

TUBE

REAR MOUNT, 91IN

2шт.

34

47719277

PLATE

Harrow Mount

6шт.

35

87477172

BOLT

.875 X 6.50

24шт.

36

87681198

NUT,Hex, 7/8"-9, 0.45 high

24шт.
