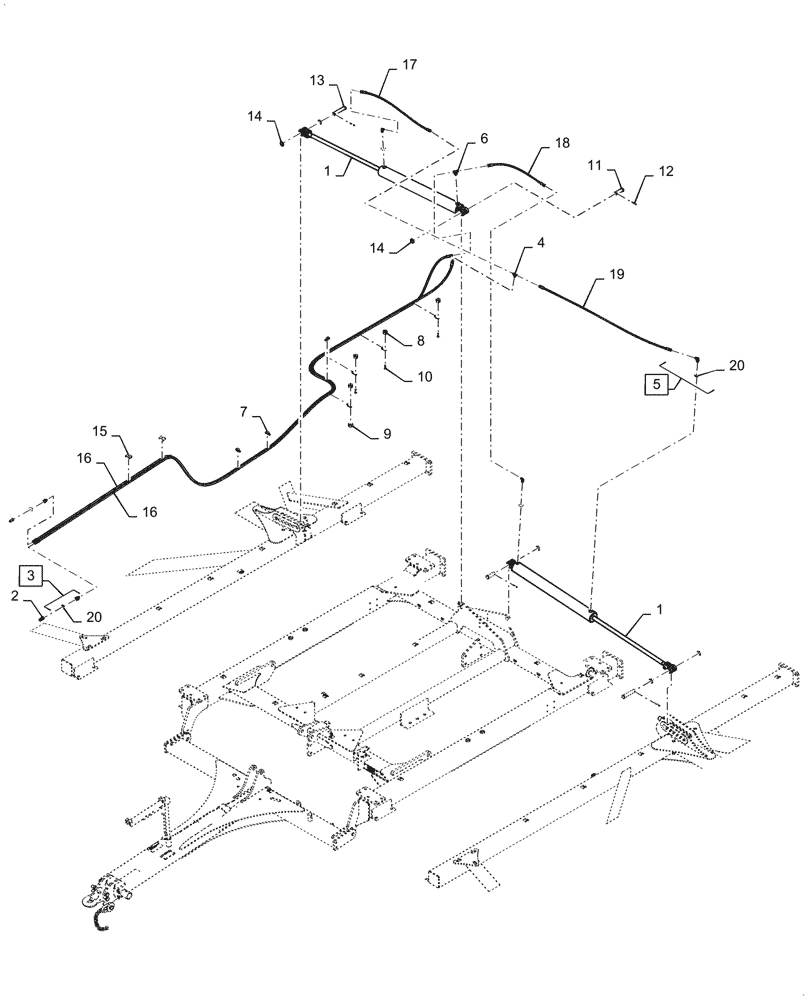

Запчасти Case IH TRUE-TANDEM 345 (35.106.AA[02]) - HYDRAULIC WING FOLD, 4" CYLINDERS (35) - HYDRAULIC SYSTEMS

1

47406417

HYDRAULIC CYLINDER

4.0 x 42 W/ 1.50

2шт.

2

25705041

COUPLING

2шт.

3

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Incl 20

2шт.

4

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

5

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Incl 20

3шт.

6

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

7

22510700

HOSE CLAMP,15.86mm

7шт.

8

88902

NUT,3/8"-16

4шт.

9

9628503

NUT,3/8"-16, G5

1шт.

10

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

3шт.

11

84156994

CLEVIS PIN

2шт.

12

88182

COTTER PIN,1/4" OD x 2" L

4шт.

13

84156995

PIN

2шт.

14

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

6шт.

15

06200125

HOSE CLAMP

2шт.

16

435691A1

HYDRAULIC HOSE

7620mm L

2шт.

17

1284278C1

HYDRAULIC HOSE

1040mm L

1шт.

18

47629237

HYDRAULIC HOSE

785mm L

1шт.

19

97478C1

HOSE,6.35 mm ID x 1905.00 mm, SAE 100 R1

1шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5шт.
