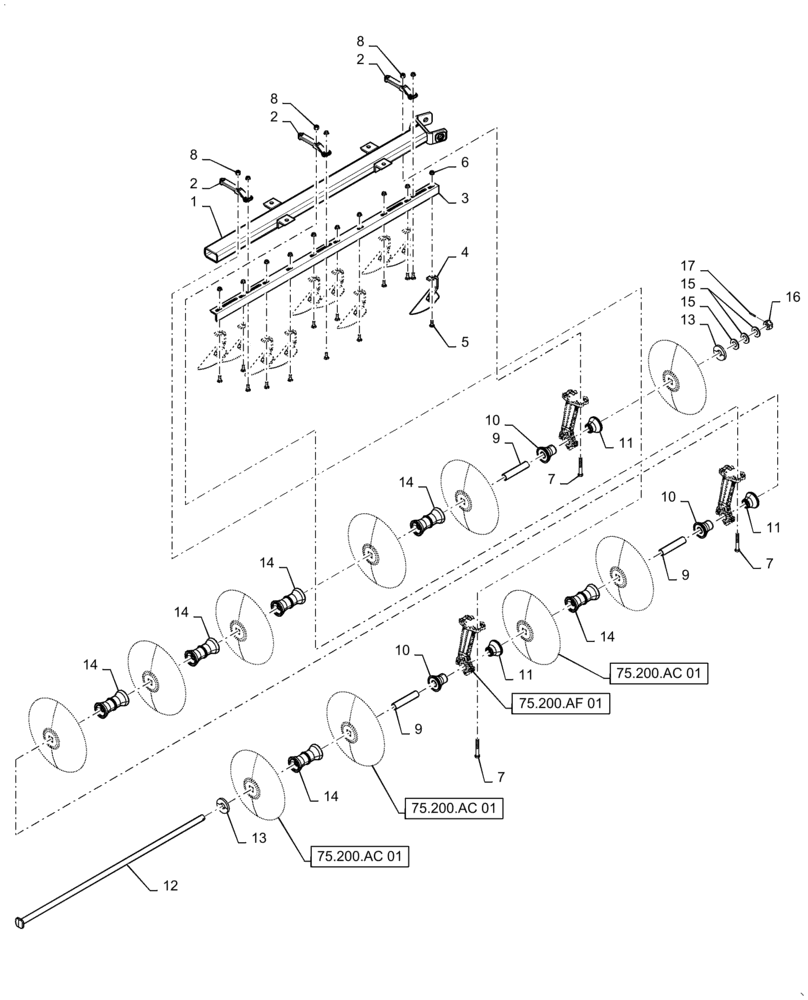

Запчасти Case IH TRUE-TANDEM 345 (75.200.AE[23]) - LEFT REAR WING-RIGID GANG WITH 9 IN. SPACING (75) - SOIL PREPARATION

1

47559313

TUBE

Gang Small LH RR

1шт.

2

231649A2

SUPPORT

Scraper Angle

3шт.

3

47559702

SCRAPER

10 Blade 9"

1шт.

4

47401585

SCRAPER

Right

10шт.

5

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

13шт.

6

84180923

FLANGE NUT

13шт.

7

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

6шт.

8

280375

NUT,3/4"-10, GC

6шт.

9

112410C1

TUBE

Arbor Bolt

3шт.

10

101191C1

SPOOL

3шт.

11

101190C1

SPOOL

3шт.

12

1263540C6

BOLT,Arbor, 1-1/2" - 6 x 2171mm, Drilled

1шт.

13

139773C1

WASHER

End

2шт.

14

139918C1

SPACER

6шт.

15

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor Bolt

1шт.

16

84151572

SLOTTED NUT

1шт.

17

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

1шт.
