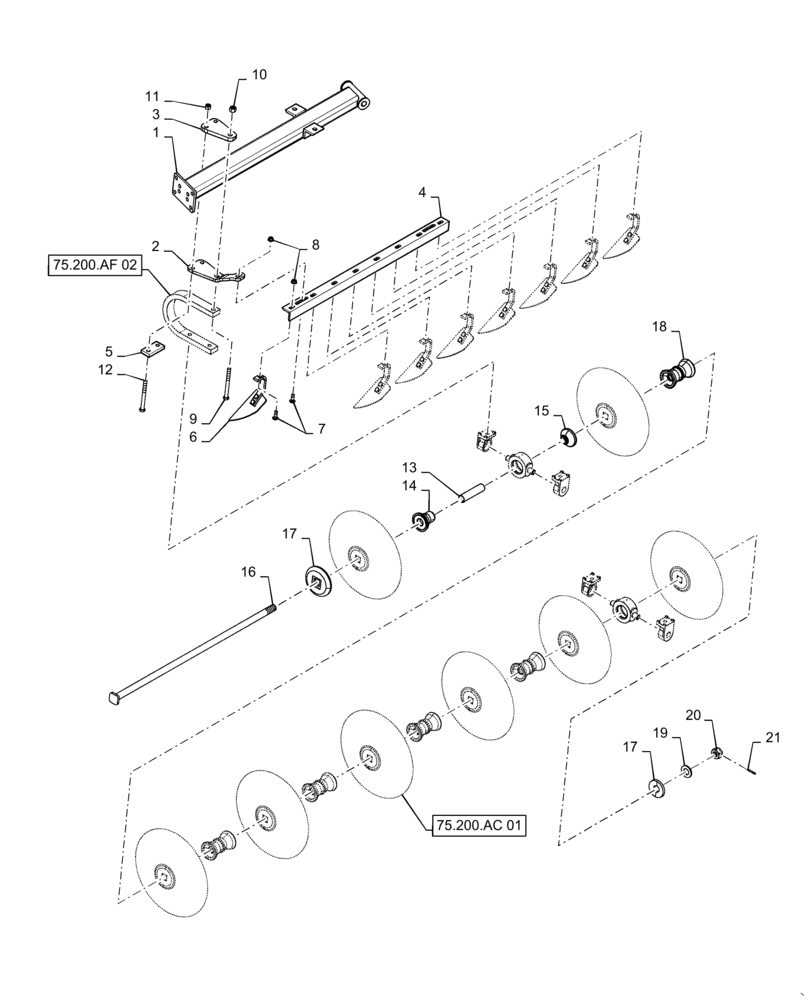

Запчасти Case IH TRUE-TANDEM 345 (75.200.AE[13]) - LEFT REAR MAIN-CUSHION GANG WITH 7.5 IN. SPACING (75) - SOIL PREPARATION

1

47481059

TUBE

Main Gang Small RH FR/LH RR

1шт.

2

47476848

PLATE

Mounting Gang Scraper

2шт.

3

47401630

PLATE

Gang Mount 3 X 5"

2шт.

4

47559489

SCRAPER

7.5"

1шт.

5

47481252

PLATE

Strap Gangs

2шт.

6

47401585

SCRAPER

Right

7шт.

7

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

9шт.

8

84180923

FLANGE NUT

9шт.

9

87490802

BOLT

.875 X 7.00"

2шт.

10

87681198

NUT,Hex, 7/8"-9, 0.45 high

2шт.

11

88945

BOLT,Hex, 3/4" - 10 x 8", Gr 5

4шт.

12

280375

NUT,3/4"-10, GC

4шт.

13

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

Arbor Bolt

2шт.

14

101191C1

SPOOL

2шт.

15

101189C1

SPOOL

2шт.

16

1263612C5

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1438mm, Drilled

1шт.

17

139773C1

WASHER

2шт.

18

1263631C1

SPOOL

7.5"

5шт.

19

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor Bolt

1шт.

20

84151572

SLOTTED NUT

1шт.

21

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

1шт.
