Запчасти Case IH TRUE-TANDEM 335 BARRACUDA (35.525.AA[03]) - HYDRAULIC BASKET 34 FOOT (35) - HYDRAULIC SYSTEMS

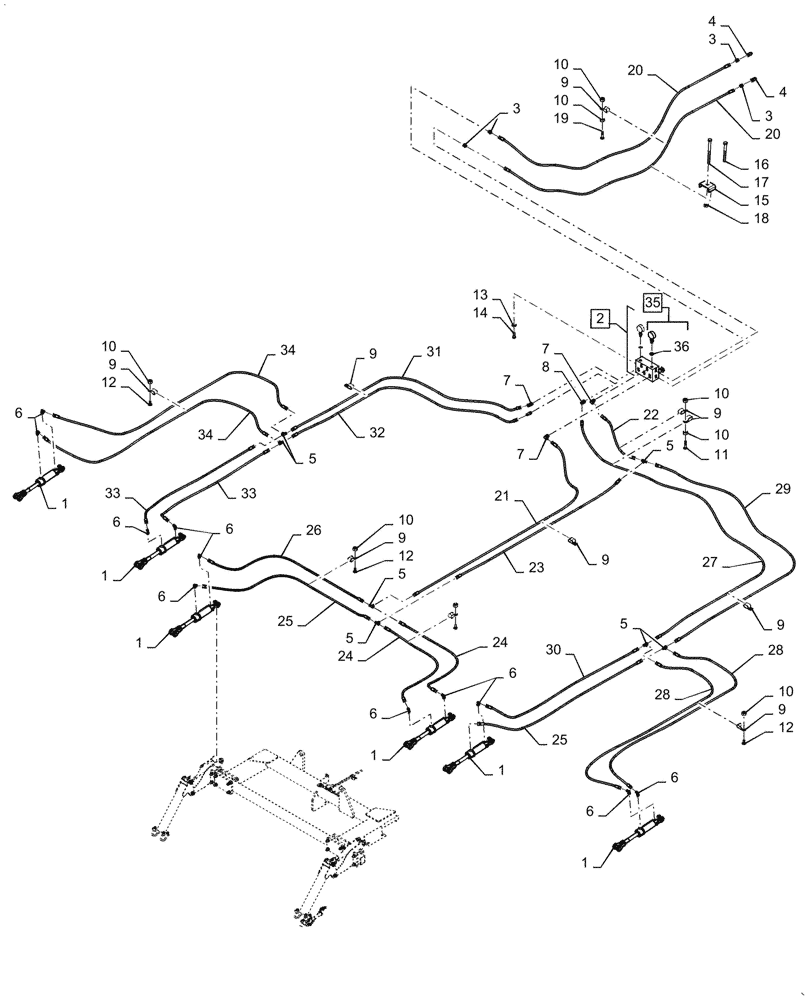

Схема запчастей Case IH TRUE-TANDEM 335 BARRACUDA - (35.525.AA[03]) - HYDRAULIC BASKET 34 FOOT (35) - HYDRAULIC SYSTEMS
36
1
21
7
5
12
6
9
15
1
11
12
20
19
25
33
24
28
10
34
3
32
29
28
1
10
6
7
22
27
3
16
18
1
5
10
4
6
17
3
10
8
9
5
34
9
25
9
9
14
10
6
33
2
6
5
13
30
6
9
12
35
23
5
20
24
10
26
1
6
7
6
1
4
31
9
9
10

Артикул

Название

Примечание

Количество

1

47404915

HYDRAULIC CYLINDER

2.0 x 4 W/1.13 Chrome Rod

7шт.

2

47442359

VALVE SECTION

Combination, Incl 35, 36

1шт.

3

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

4шт.

4

25705041

COUPLING

Male

2шт.

5

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

7шт.

6

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

14шт.

7

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

8

84313

ELBOW,45 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

1шт.

9

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

10

22510700

HOSE CLAMP,15.86mm

3/8" Clamp

40шт.

11

9628503

NUT,3/8"-16, G5

26шт.

12

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

13

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

20шт.

14

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

2шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

16

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

06200125

HOSE CLAMP

2шт.

18

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

19

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

2шт.

20

86992213

NUT

2шт.

21

810606C1

FLEXIBLE HOSE

1/4" X195"

2шт.

22

1254526C2

HOSE ASSY.

1/4" X 135"

1шт.

23

1254576C2

HOSE ASSY.

1/4" X 43"

1шт.

24

1284366C1

HYDRAULIC HOSE

1/4" X 100"

2шт.

25

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

1шт.

26

147878C1

HOSE

1/4" X 65"

3шт.

27

1284291C1

HYDRAULIC HOSE

1/4" X 95"

1шт.

28

87501984

HYDRAULIC HOSE

1/4" X 240"

1шт.

29

97478C1

HOSE,6.35 mm ID x 1905.00 mm, SAE 100 R1

1шт.

30

97646C1

HYDRAULIC HOSE,12.70 mm ID x 381.00 mm, SAE 100 R1

1/4" X 150"

3шт.

31

139517C1

HYDRAULIC HOSE

1/4" X 80"

1шт.

32

1261399C1

HYDRAULIC HOSE,6.35mm ID x 4570mm L

2шт.

33

810205C1

HYDRAULIC HOSE,6.35mm ID x 1820mm L, SAE 100R17

1/4" X 70"

2шт.

34

147779C1

HYDRAULIC HOSE

1/4 X 145"

1шт.

35

47933428

Pressure, 1500 Psi, Incl 36

GAUGE

2шт.

36

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

Выбрано товаров: 36
