Запчасти Case IH TRUE-TANDEM 335 BARRACUDA (75.200.AG[13]) - RIGHT REAR WING-CUSHION GANG WITH 7.5 IN. SPACING (75) - SOIL PREPARATION

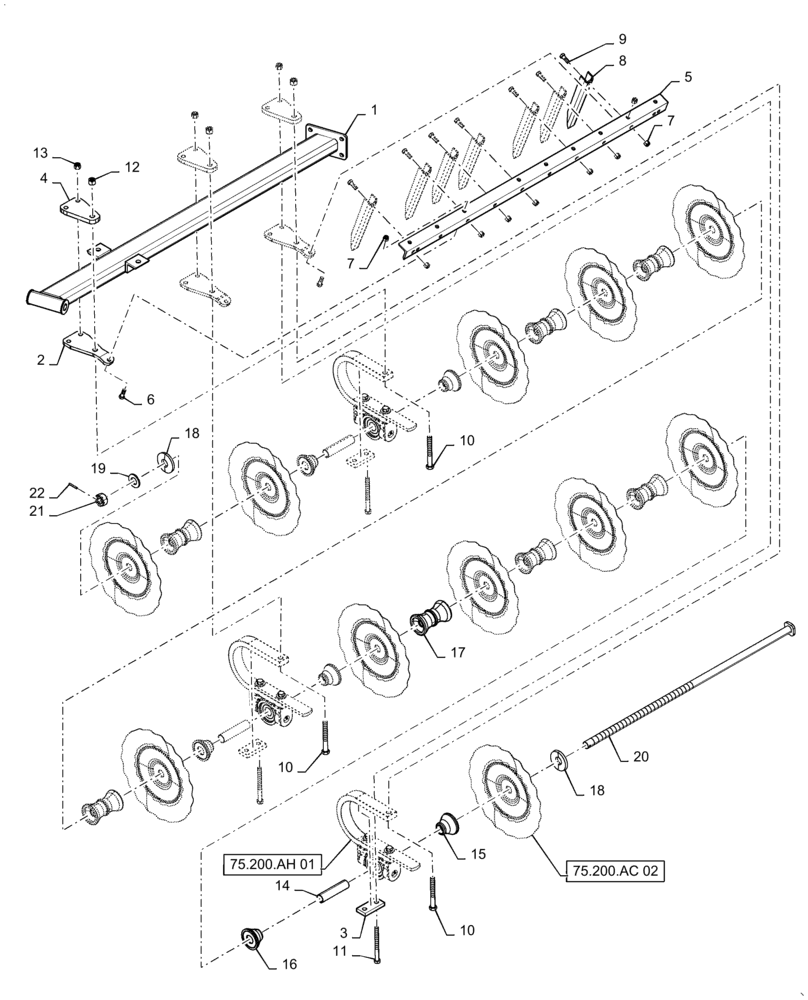

Схема запчастей Case IH TRUE-TANDEM 335 BARRACUDA - (75.200.AG[13]) - RIGHT REAR WING-CUSHION GANG WITH 7.5 IN. SPACING (75) - SOIL PREPARATION
21
14
10
22
3
12
2
10
9
7
15
5
8
19
75.200.ac 02
7
13
10
17
18
6
75.200.ah 01
20
1
18
16
11
4

Артикул

Название

Примечание

Количество

1

47594317

TUBE

Wing Gang, Small

1шт.

2

47601530

PLATE

Moungint, Gang Scraper

3шт.

3

47481252

PLATE

Strap

3шт.

4

47401630

PLATE

Gang Mound, 3X5

3шт.

5

47594326

SCRAPER

Angle

1шт.

6

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3шт.

7

85700693

NUT,5/8" - 11, Gr C

13шт.

8

47569499

SCRAPER

Formed Channel

10шт.

9

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

10шт.

10

87490802

BOLT

.875X7.00 Grade 5

3шт.

11

88945

BOLT,Hex, 3/4" - 10 x 8", Gr 5

6шт.

12

87681198

NUT,Hex, 7/8"-9, 0.45 high

3шт.

13

280375

NUT,3/4"-10, GC

6шт.

14

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

Arbor Bolt

3шт.

15

101190C1

SPOOL

Bearing, Short

3шт.

16

1263636C1

SPOOL

Bearing, Short

3шт.

17

1263631C1

SPOOL

7.5" Spacing

9шт.

18

139773C1

WASHER

End

2шт.

19

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor Bolt

1шт.

20

1986247C5

SPECIAL BOLT,1 1/2" - 6 x 94.88"

1шт.

21

84151572

SLOTTED NUT

1.5-6 UNC Grade 5

1шт.

22

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

.312X2.250"

1шт.

Выбрано товаров: 22
