Запчасти Case IH TRUE-TANDEM 335 BARRACUDA (90.100.AA[01]) - DECALS 335 (90) - PLATFORM, CAB, BODYWORK AND DECALS

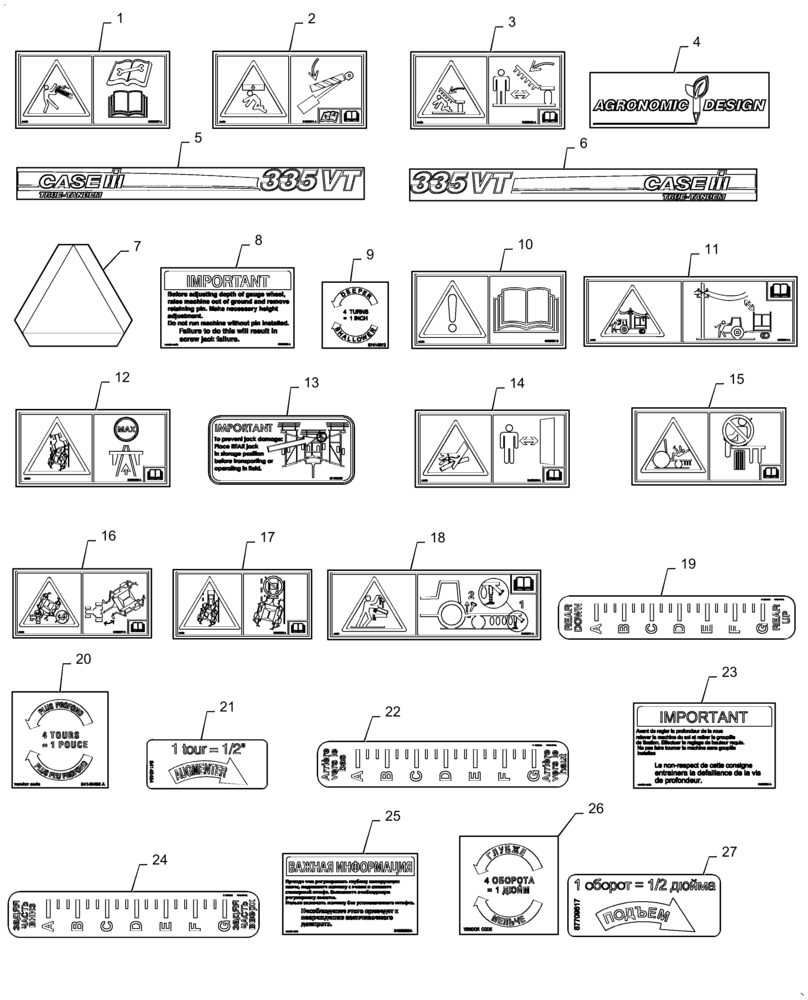

Схема запчастей Case IH TRUE-TANDEM 335 BARRACUDA - (90.100.AA[01]) - DECALS 335 (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
home
19
1
10
7
27
15
8
23
11
6
24
2
18
5
13
14
26
3
16
25
21
22
20
9
12
4

Артикул

Название

Примечание

Количество

1

84599877

DECAL

WARNING, STORED ENERGY HAZ.

1шт.

2

84599911

CAUTION DECAL

CYLINDER LOCK

1шт.

3

84599919

DECAL

DANGER, CRUSHING HAZARD

1шт.

4

47623656

DECAL

AGRONOMIC

1шт.

5

47584754

DECAL

335 TRUE TANDEM, RH

1шт.

6

47584753

DECAL

335 TRUE TANDEM, LH

1шт.

7

311858A1

DECAL

SLOW MOVING VEHICLE EMBLEM

1шт.

8

84252093

DECAL

IMPORTANT SCREW JACK INSTRUCTIONS

1шт.

9

87414072

DECAL

SPDC DEPTH

1шт.

10

47358801

CAUTION DECAL

CAUTION, ISO

1шт.

11

84599914

DECAL

ELECTRIC SHOCK

1шт.

12

84599866

DECAL

TOWING MAX SPEED

1шт.

13

87425680

DECAL

CYLINDER LOCK

1шт.

14

84600501

WARNING DECAL

PRESSURIZED FLUID

1шт.

15

84599913

DECAL

NO RIDERS

1шт.

16

84599872

DECAL

WARNING, TURNING HAZARD

1шт.

17

84600535

DECAL

TOWING HAZARD

1шт.

18

84599771

DECAL

WARNING, UNHITCH

1шт.

19

84161568

DECAL

DEPTH INDICATOR

1шт.

20

84142452

DECAL

SPDC, DEPTH

1шт.

21

84142454

DECAL

DEPTH ADJ, TINE HARRDW (FR)

1шт.

22

84183221

DECAL

DEPTH INDICATOR French

1шт.

23

84252534

DECAL

IMPORTANT GAUGE WHEEL

1шт.

24

84183220

DECAL

LEVEL LIFT INDICATOR Russian

1шт.

25

84252535

DECAL

IMPORTANT GAUGE WHEEL

1шт.

26

87709612

DECAL

SPDC, DEPTH

1шт.

27

87709617

DECAL

DEPTH ADJUST, TINE HARRDW

1шт.

Выбрано товаров: 27
