Запчасти Case IH TRUE-TANDEM 335 BARRACUDA (75.200.AG[21]) - RIGHT REAR WING-CUSHION GANG WITH 7.5 IN. SPACING (75) - SOIL PREPARATION

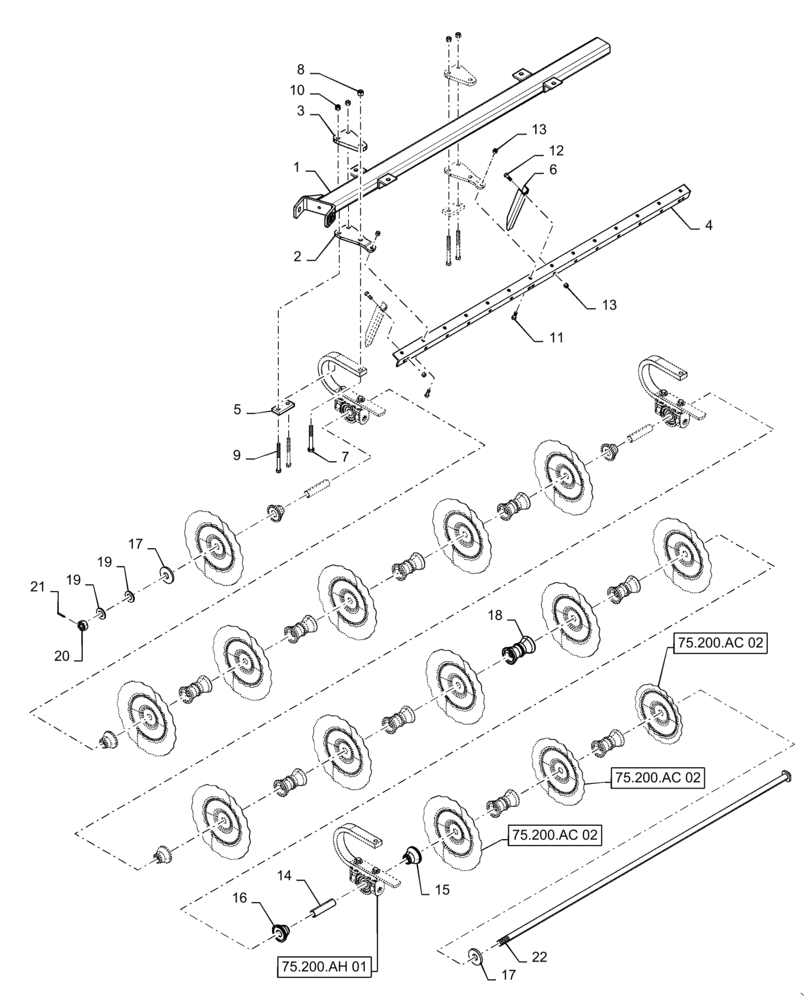

Схема запчастей Case IH TRUE-TANDEM 335 BARRACUDA - (75.200.AG[21]) - RIGHT REAR WING-CUSHION GANG WITH 7.5 IN. SPACING (75) - SOIL PREPARATION
12
19
11
9
16
5
17
15
10
1
8
7
21
13
20
3
6
75.200.ac 02
22
2
4
18
75.200.ac 02
75.200.ac 02
19
14
17
75.200.ah 01
13

Артикул

Название

Примечание

Количество

1

47480993

TUBE

Wing Gang, Med

1шт.

2

47601530

PLATE

Mounting, Gang Scraper

3шт.

3

47401630

PLATE

Gang Mount, 3X5

3шт.

4

47678170

SCRAPER

Angle

1шт.

5

47481252

PLATE

Strap

3шт.

6

47569499

SCRAPER

Formed Channel

11шт.

7

87490802

BOLT

.875X7.00" Grade 5

3шт.

8

87681198

NUT,Hex, 7/8"-9, 0.45 high

3шт.

9

88945

BOLT,Hex, 3/4" - 10 x 8", Gr 5

6шт.

10

280375

NUT,3/4"-10, GC

6шт.

11

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3шт.

12

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

11шт.

13

85700693

NUT,5/8" - 11, Gr C

14шт.

14

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

Arbor Bolt

3шт.

15

101190C1

SPOOL

Bearing, Short

3шт.

16

1263636C1

SPOOL

Bearing, Short

3шт.

17

139773C1

WASHER

End

2шт.

18

1263631C1

SPOOL

7.5" Spacing

10шт.

19

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor Bolt

1шт.

20

84151572

SLOTTED NUT

1.5-6 UNC, Grade 5

1шт.

21

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

.312X2.250"

1шт.

22

1263616C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 2584mm, Drilled

1шт.

Выбрано товаров: 22
