(90.100.AA[03]) - HEAVY DUTY EYEBOLT UPGRADE KIT LEFT 370

Запчасти Case IH RMX370 (90.100.AA[03]) - HEAVY DUTY EYEBOLT UPGRADE KIT LEFT 370 (90) - PLATFORM, CAB, BODYWORK AND DECALS

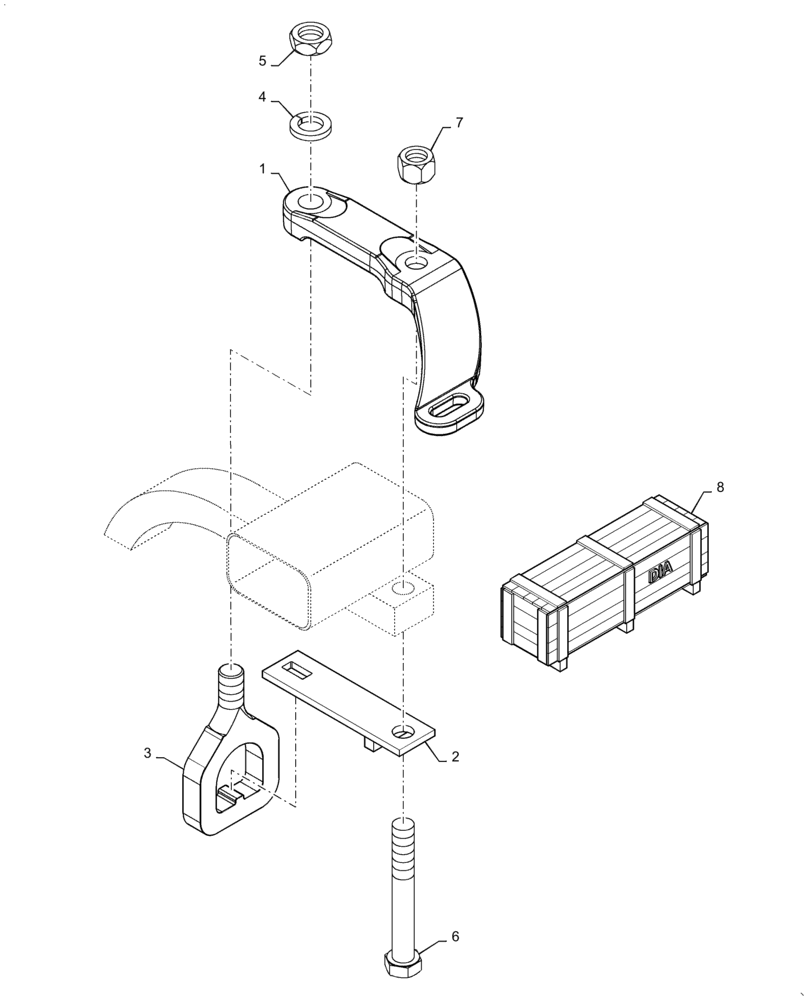

Схема запчастей Case IH RMX370 - (90.100.AA[03]) - HEAVY DUTY EYEBOLT UPGRADE KIT LEFT 370 (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
6
4
1
7
2
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47762500

MOUNT

Scraper 1 In Eyebolt 370 LH

1шт.

2

84559560

RETAINER

1шт.

3

84554629

EYEBOLT

1шт.

4

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

1шт.

5

87553819

JAM NUT

1.000-8

1шт.

6

87477172

BOLT

.875 X 6.50

1шт.

7

87012309

LOCK NUT,7/8"-9, GB

1шт.

8

47762405

KIT

heavy duty eyebolt upgrade kit Left 370 Incl 1 - 7 Ins Sheet 47708608

1шт.
