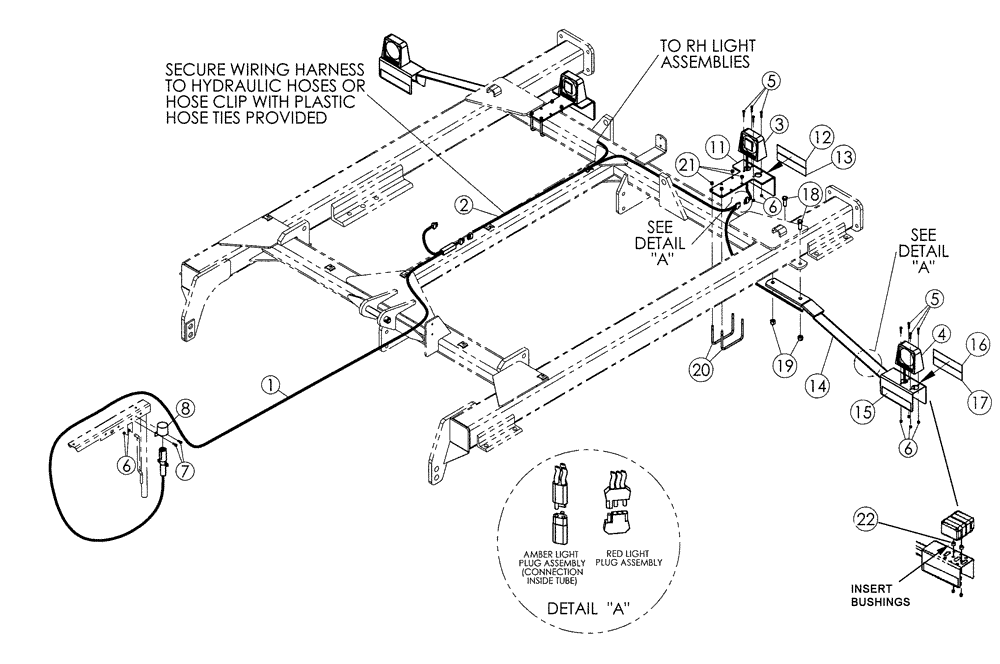

Запчасти Case IH RMX370 (55.404.02) - 25 - 34 FOOT LIGHT PARTS (55) - ELECTRICAL SYSTEMS

1

446578A1

HARNESS

Front Wiring

1шт.

1

87446680

WIRE HARNESS

Front Wiring

1шт.

Used On Serial Number JFH0031778 And After

1шт.

2

27602224

HARNESS

Rear Wiring

1шт.

2

87446684

WIRE HARNESS

Rear Wiring

1шт.

Used On Serial Number JFH0031778 And After

1шт.

3

27602202

LIGHT ASSY.

Red

2шт.

3

87446791

LAMP

Red

2шт.

Used On Serial Number JFH0031778 And After

1шт.

4

27602201

LIGHT ASSY.

Amber

2шт.

4

87446792

LAMP,12V, 21W, Amber

Amber

2шт.

Used On Serial Number JFH0031778 And After

1шт.

5

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.

6

86992211

NUT

1/4 NC Lock

18шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

8

27601214

HOLDER

Seven Pin Connector Storage

1шт.

9

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP Hose Tie

1шт.

10

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP Hose Tie

1шт.

11

87459351

BRACKET

Red Light Inc. 12, 13

2шт.

11

84181706

BRACKET

Red Light, Lh, Inc. 12 - 13

1шт.

Used On 2009 And After Models

1шт.

11

84181672

BRACKET

Red Light, Rh, Inc. 12 - 13

1шт.

Used On 2009 And After Models

1шт.

12

311863A1

REFLECTOR

Flourescent

1шт.

13

311865A1

REFLECTOR

Red

1шт.

14

87403283

BRACKET

Amber Light LH 34 ft Inc. 15 - 17

1шт.

Used On 2007 And Prior Models

1шт.

14

87343510

BRACKET

Amber Light, Lh, 34 ft, Inc. 15 - 17

1шт.

Used On 2008 And After Models

1шт.

14

84188459

BRACKET

Amber Light, Lh

1шт.

Used On 2009 And After Models

1шт.

14

87454253

BRACKET

Amber Light RH 34 ft Inc. 15 - 17

1шт.

Used On 2007 And Prior Models

1шт.

14

87343502

BRACKET

Amber Light, Rh, 34 ft, Inc. 15 - 17

1шт.

Used On 2008 And After Models

1шт.

14

84188463

BRACKET

Amber Light, Rh

1шт.

Used On 2009 And After Models

1шт.

14

87459245

BRACKET

Amber Light LH 25 - 31 ft Inc. 15 - 17

1шт.

Used On 2007 And Prior Models

1шт.

14

87333818

BRACKET

Amber Light, Lh, 25 - 31 ft, Inc. 15 - 17

1шт.

Used On 2008 And After Models

1шт.

14

87459246

BRACKET

Amber Light RH 25 - 31 ft Inc. 15 - 17

1шт.

Used On 2007 And Prior Models

1шт.

14

87333813

BRACKET

Amber Light, Rh, 25 - 31 ft, Inc. 15 - 17

1шт.

Used On 2008 And After Models

1шт.

15

311864A1

REFLECTOR

Yellow

1шт.

16

311863A1

REFLECTOR

Flourescent

1шт.

17

311865A1

REFLECTOR

Red

1шт.

18

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

19

85700693

NUT,5/8" - 11, Gr C

4шт.

20

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8 x 4 x 6

4шт.

20

87405402

U-BOLT

BOLT "U" 3/8 x 3 x 5

4шт.

For Units Equipped With Factory Harrow Option

1шт.

21

86992213

NUT

3/8 NC Lock

8шт.

22

87449661

SPACER

Bushing, Amber Light

4шт.

Used On Serial Number JFH0031778 And After

1шт.

23

87459024

LENS

Red, Not Shown

1шт.

Used On 87446791 Lamp

1шт.

23

87459023

LENS

Amber, Not Shown

1шт.

Used On 87446792 Lamp

1шт.
