Запчасти Case IH RMX370 (44.100.10) - WING TANDEM 6-BOLT PARTS (44) - WHEELS

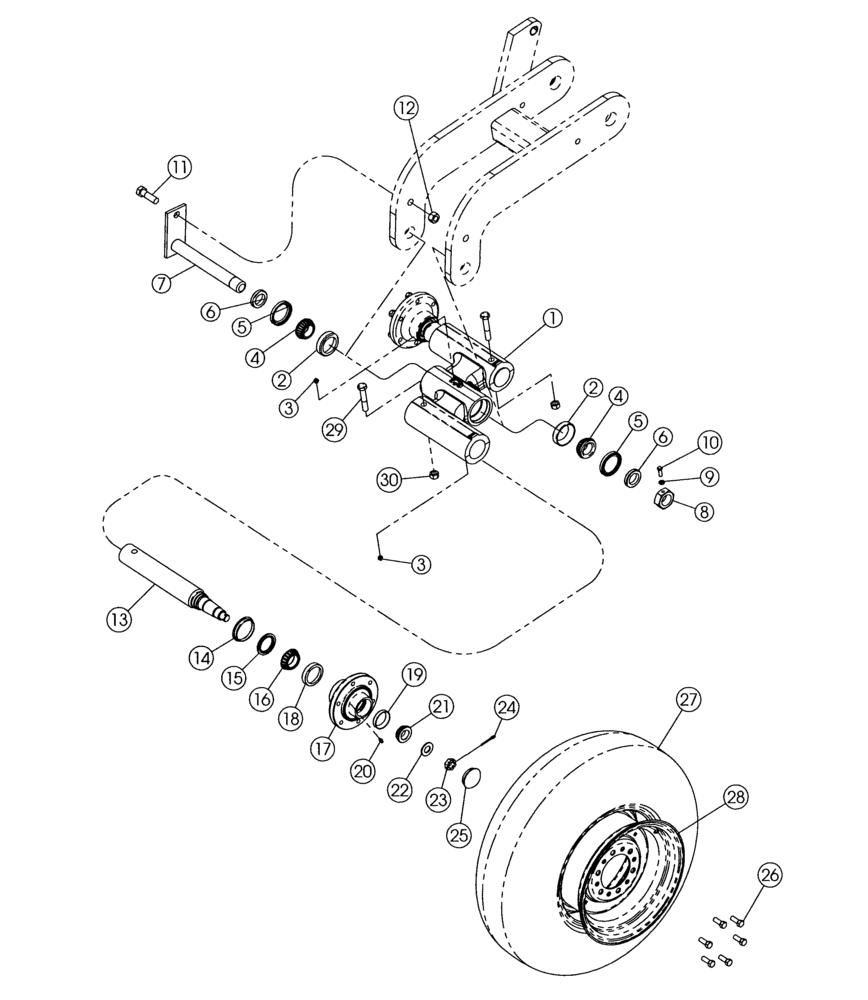

Схема запчастей Case IH RMX370 - (44.100.10) - WING TANDEM 6-BOLT PARTS (44) - WHEELS
4
1
17
16
3
28
11
25
2
8
30
7
24
9
4
21
2
3
12
18
13
23
22
6
27
20
6
19
5
14
26
29
10
5
15

Артикул

Название

Примечание

Количество

1

397171A1

TUBE

6-Bolt Tandem Axle, Inc 2

1шт.

Prior to 2007 Models

1шт.

Replaced By 87561153 (1) & 87517019 (2)

1шт.

1

87561153

CASTING

6 Bolt Tandem Axle

1шт.

Used On 2007 And After Models

1шт.

2

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

3.000 OD

2шт.

3

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

4

21871501

BEARING CONE,38.1mm ID x 25.65mm W

1.50 ID

2шт.

5

21932510

SEAL

2.29 ID

2шт.

6

06400573

SPACER

Bearing

2шт.

7

87401183

PIN,38.07mm OD x 325mm L

1-1/2, Tandem

1шт.

8

14032409

NUT

1-1/2, Jam

1шт.

9

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

10

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1, Set, Square Head

1шт.

11

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

12

280375

NUT,3/4"-10, GC

1шт.

13

86990480

SPINDLE

6 Bolt

2шт.

Prior to 2007 Models

1шт.

13

87517011

STUB AXLE/STEERING S

6 Bolt

2шт.

Used On 2007 And After Models

1шт.

14

594703R1

SLEEVE

Wear

2шт.

15

594702R91

SEAL

Type X15

2шт.

16

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625 ID

2шт.

17

87426111

HUB

Machined, Inc. 18, 19

2шт.

18

663558R1

BEARING CUP

2.892 OD

2шт.

19

651817R1

BEARING CUP

2.33 OD

2шт.

19

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

20

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

21

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 ID

2шт.

22

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

23/32 ID

2шт.

23

70120D

SLOTTED NUT,7/8"-14

2шт.

24

432-832

COTTER PIN,1/8" x 2"

2шт.

25

224066C1

HUB CAP

2шт.

26

277538A1

BOLT,1/2" - 20 x 1.42"

Wheel

12шт.

27

NSS

NOT SOLD SEPARAT

Tire - 12.5L x 15 (10 Ply) I-1 Tubeless

2шт.

27

NSS

NOT SOLD SEPARAT

11L x 15 (8 Ply) I-1 Tubeless

2шт.

28

10110254

WHEEL ASSY.

15 X 10LB SAE, Silver

2шт.

28

10108254

WHEEL

15 x 8LBH, Silver

2шт.

29

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

30

85700693

NUT,5/8" - 11, Gr C

2шт.

Выбрано товаров: 40
