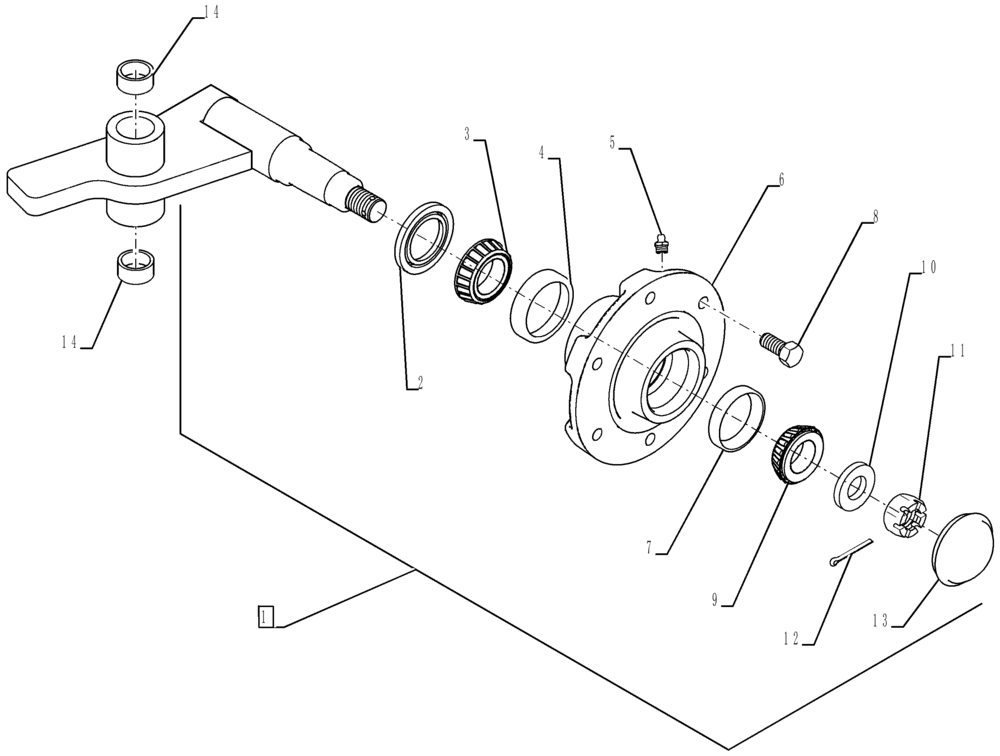

Запчасти Case IH RMX370 (44.100.07[02]) - GAUGE WHEEL WELDMENT HUB COMPONENTS 2009 - AFTER 19 THROUGH 34 FOOT MODEL (44) - WHEELS

1

87604185

PIVOT

1шт.

2

614410R91

SEAL

1шт.

3

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

4

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

5

87019498

FITTING

1шт.

6

Included In Ref 1

1шт.

7

651817R1

BEARING CUP

1шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

6шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

10

17915000

WASHER

1шт.

11

84151573

NUT

1шт.

12

88350

COTTER PIN,5/32" x 1-1/2"

1шт.

13

28477700

HUB CAP

1шт.

14

87584013

BEARING LINER,25.634 mm ID x 31.87 mm OD x 12.7 mm

2шт.
