Запчасти Case IH RMX370 (44.100.07[01]) - GAUGE WHEEL PARTS 2009 AND AFTER UNITS 19 THROUGH 34 FOOT ONLY (44) - WHEELS

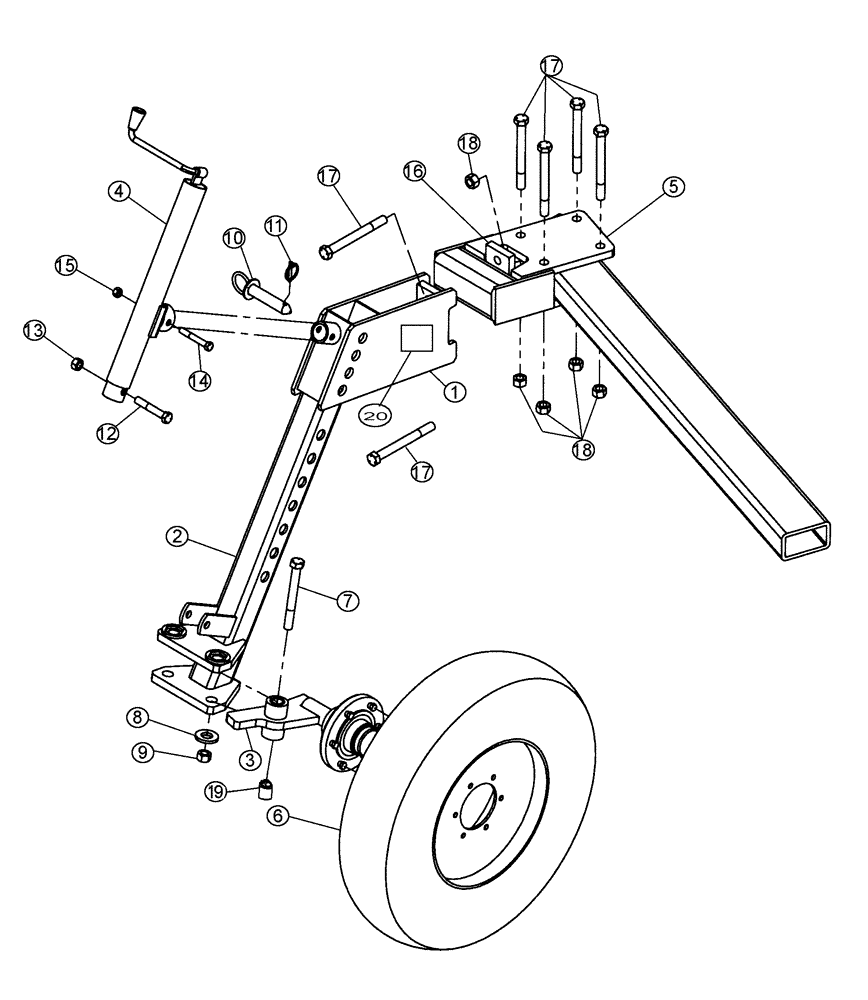

Схема запчастей Case IH RMX370 - (44.100.07[01]) - GAUGE WHEEL PARTS 2009 AND AFTER UNITS 19 THROUGH 34 FOOT ONLY (44) - WHEELS
6
12
19
5
7
18
20
17
8
11
13
3
4
9
2
15
17
10
14
17
1
18
16

Артикул

Название

Примечание

Количество

1

87604180

BRACKET

Mount, Gauge Wheel

1шт.

2

87604184

BRACKET

Gauge Wheel

1шт.

3

87604185

PIVOT

Weld

1шт.

4

87604193

JACK

Screw

1шт.

Used On 2008 And After Models

1шт.

4

84163961

JACK

Screw

1шт.

Used On 2009 And After Units

1шт.

5

87681851

BRACKET

Mount Gauge Wheel

1шт.

6

87451736

WHEEL ASSY.

7.6 x 15, Tube, Silver

1шт.

7

5971

BOLT,Hex, 1" - 8 x 6 3/8", Gr 5

1шт.

8

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

2шт.

9

86992219

LOCK NUT

1 Inch, Stover

1шт.

10

14816348

PIN,25.4mm OD x 133.35mm L

1шт.

11

A30338

PIN

Klick

1шт.

12

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

1шт.

13

85700693

NUT,5/8" - 11, Gr C

1шт.

14

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

15

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

16

87698627

BRACKET

Flat Mount

1шт.

17

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

6шт.

18

280375

NUT,3/4"-10, GC

6шт.

19

87584013

BEARING LINER,25.634 mm ID x 31.87 mm OD x 12.7 mm

2шт.

20

84252093

DECAL

Pull Pin

1шт.

Выбрано товаров: 23
