Запчасти Case IH RMX370 (44.100.06) - GAUGE WHEEL PARTS 2008 AND AFTER UNITS (44) - WHEELS

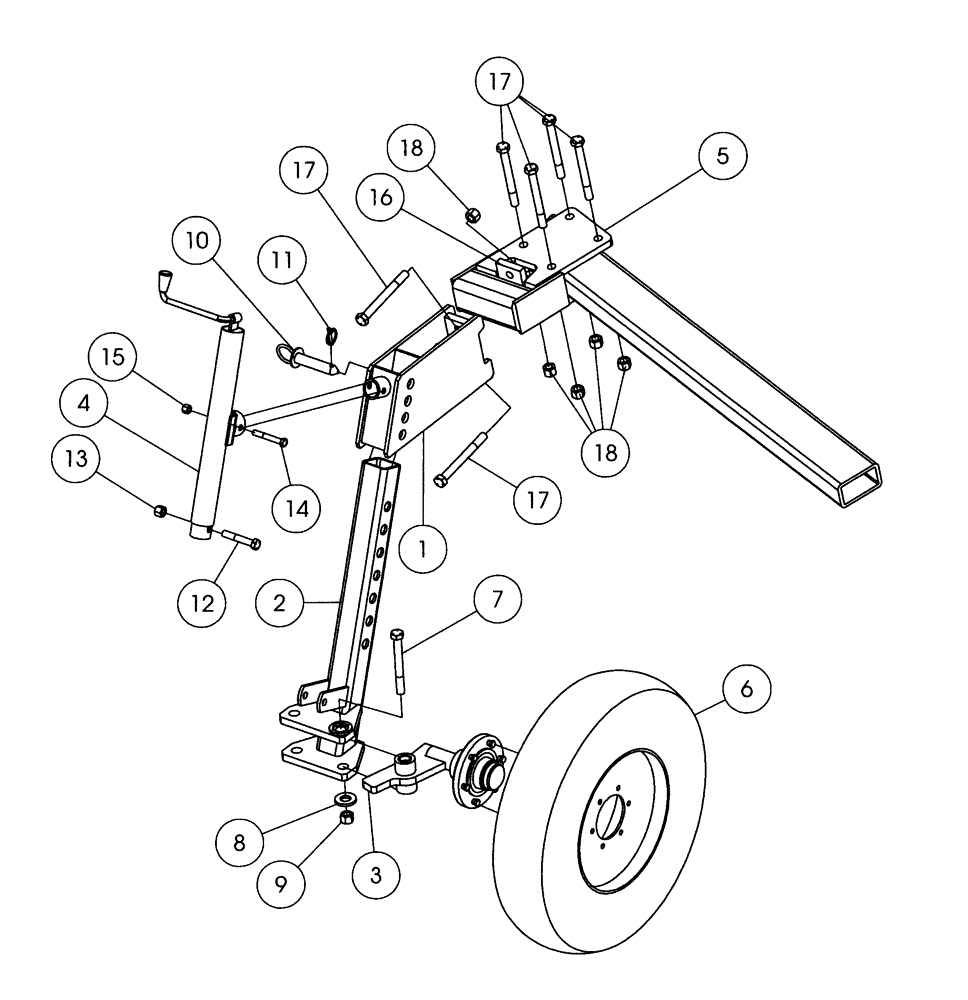

Схема запчастей Case IH RMX370 - (44.100.06) - GAUGE WHEEL PARTS 2008 AND AFTER UNITS (44) - WHEELS
4
2
12
7
10
11
8
14
17
17
18
16
17
18
13
9
15
6
3
5
1

Артикул

Название

Примечание

Количество

1

87604180

BRACKET

Mount, Gauge, Wheel

1шт.

2

87604184

BRACKET

Gauge Wheel

1шт.

3

87604185

PIVOT

Weld

1шт.

4

87604193

JACK

Screw

1шт.

Used On 2008 And After Models

1шт.

4

84163961

JACK

Screw

1шт.

Used On 2009 And After Units

1шт.

5

87681851

BRACKET

Mount Gauge Wheel

1шт.

6

87451736

WHEEL ASSY.

7.6 x 15, Tube Silver

1шт.

7

5971

BOLT,Hex, 1" - 8 x 6 3/8", Gr 5

1шт.

8

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

2шт.

9

86992219

LOCK NUT

1, Stover

1шт.

10

14816348

PIN,25.4mm OD x 133.35mm L

1шт.

11

A30338

PIN

Klick

1шт.

12

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

1шт.

13

85700693

NUT,5/8" - 11, Gr C

1шт.

14

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

15

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

16

87698627

BRACKET

Flat Mount

1шт.

17

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

2шт.

18

280375

NUT,3/4"-10, GC

2шт.

Выбрано товаров: 21
