Запчасти Case IH RMX370 (44.100.01) - ROCKSHAFT DUAL 6-BOLT PARTS (44) - WHEELS

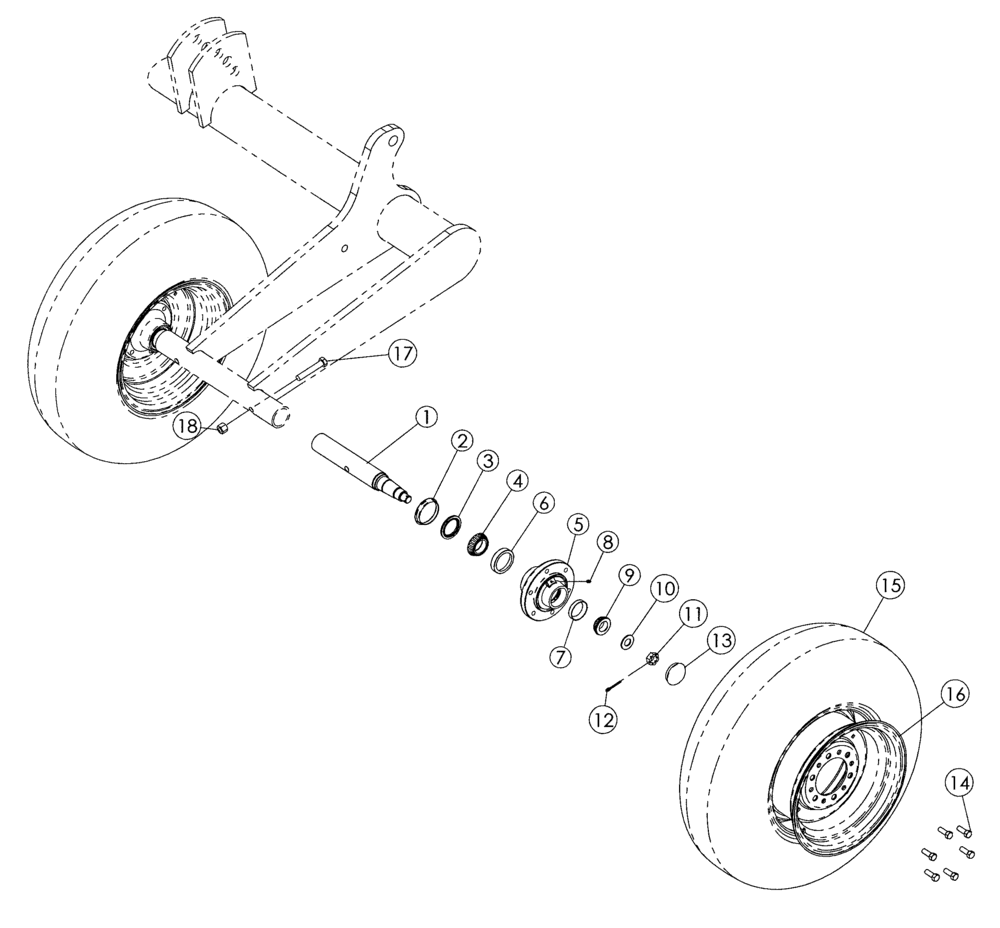

Схема запчастей Case IH RMX370 - (44.100.01) - ROCKSHAFT DUAL 6-BOLT PARTS (44) - WHEELS
8
13
16
15
6
7
9
4
1
10
17
5
2
18
14
3
12
11

Артикул

Название

Примечание

Количество

1

86990480

SPINDLE

6 Bolt

4шт.

2

594703R1

SLEEVE

Wear

4шт.

3

594702R91

SEAL

Type X 15

4шт.

4

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625, ID

4шт.

5

87426111

HUB

Machined, Inc 6, 7

4шт.

6

663558R1

BEARING CUP

2.892, OD

4шт.

7

651817R1

BEARING CUP

2.33, OD

4шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

4шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25, ID

4шт.

10

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

23/32, ID

4шт.

11

70120D

SLOTTED NUT,7/8"-14

4шт.

12

432-832

COTTER PIN,1/8" x 2"

4шт.

13

224066C1

HUB CAP

4шт.

14

277538A1

BOLT,1/2" - 20 x 1.42"

Wheel

24шт.

15

NSS

NOT SOLD SEPARAT

12.5L x 15 (10 Ply) I-1 Tubeless

4шт.

16

10110254

WHEEL ASSY.

15 x 10 lb SAE, Silver

4шт.

17

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

4шт.

18

85700693

NUT,5/8" - 11, Gr C

4шт.

Выбрано товаров: 19
