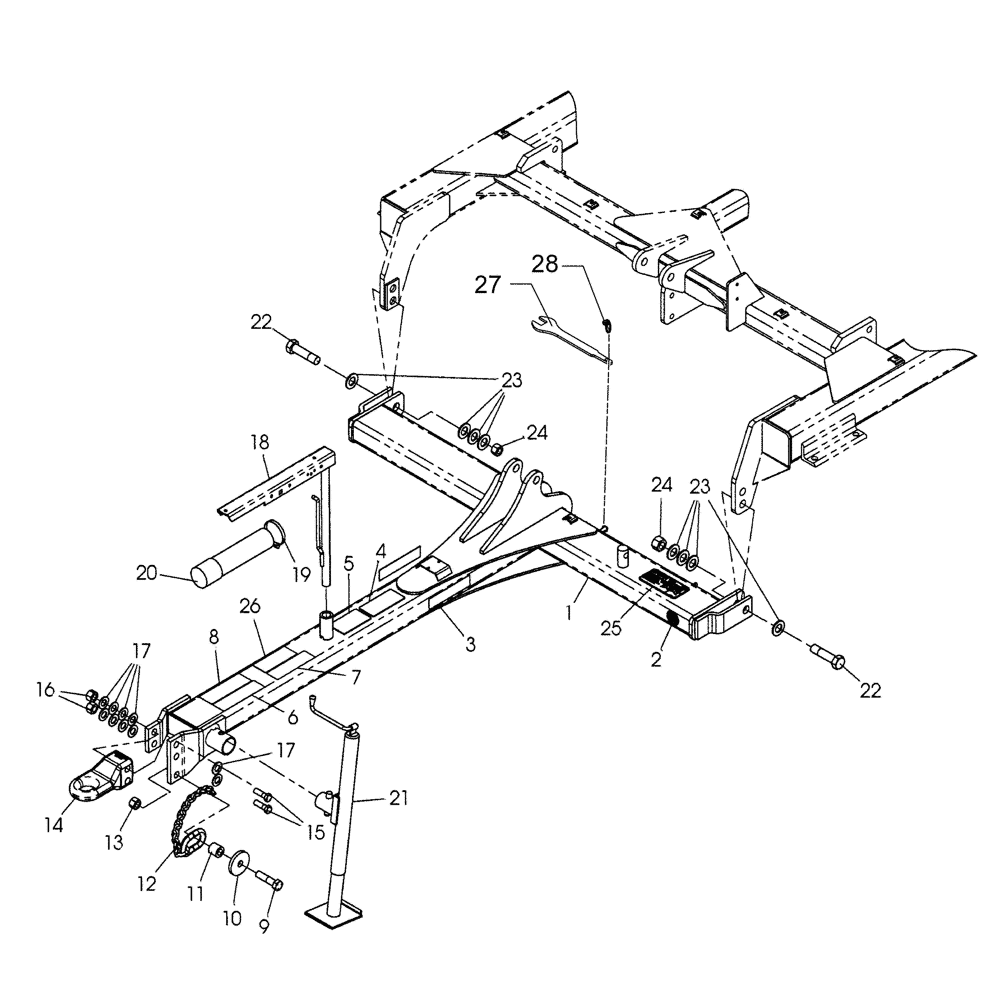

Запчасти Case IH RMX370 (39.100.03) - PULL FRAME PARTS (39) - FRAMES AND BALLASTING

1

86985162

FRAME ASSY

Pull, 19 - 25 ft Inc. 2 - 13

1шт.

Used On 2007 And Prior Models

1шт.

1

87673557

HITCH

Pull, 19 - 25 ft. Inc. 2 - 13

1шт.

Used On 2009 And After Models

1шт.

1

448498A1

HITCH

Pull, 28 - 34 ft, Inc. 2 - 13

1шт.

Used On 2007 And Prior Models

1шт.

1

87673554

HITCH

Pull, 28 - 34 ft, Inc. 2 - 13

1шт.

Used On 2009 And After Models

1шт.

1

84373082

FRAME

CAT V

1шт.

2

147782C1

DECAL

Earth Metal

1шт.

3

311864A1

REFLECTOR

Amber

2шт.

4

18534228

DECAL

Caution

1шт.

5

18534282

WARNING DECAL

Warning

1шт.

6

18534275

DANGER DECAL

Overhead Powerlines

1шт.

Used On 2007 And Prior Models

1шт.

6

87673548

DECAL

Overhead Powerlines

1шт.

Used On 2009 And After Models

1шт.

7

87415983

DECAL

Unhitching Hazard

1шт.

Used On 2007 And Prior Models

1шт.

7

87673549

DECAL

Unhitching Hazard

1шт.

Used On 2009 And After Models

1шт.

8

443890A1

DECAL

Towing Hazard

1шт.

Used On 2007 And Prior Models

1шт.

8

87672316

DECAL

Towing Hazard

1шт.

Used On 2009 And After Models

1шт.

9

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

10

06400065

WASHER

Heavy, Saftey Chain

1шт.

11

340324A1

BUSHING

Safety Chain

1шт.

12

87393082

CHAIN

Safety, 20,200 lb, 25 ft

1шт.

12

87389757

CHAIN

Safety, 30,400 lb, 28 - 37 ft

1шт.

13

86992219

LOCK NUT

1, NC, Stover

1шт.

14

362933A1

HITCH

Perfect, Cat III, 25 ft

1шт.

14

362934A1

HITCH ASSY

Perfect, Cat IV, 28 - 34 ft

1шт.

14

87432117

HITCH ASSY

Double, Cat II, Not Shown

1шт.

14

9602203

BOLT,Hex, 3/4" x 5", Gr 8

Double, Cat II, Not Shown, Mounting Hardware

1шт.

14

86992217

NUT

Double, Cat II, Not Shown, Mounting Hardware

1шт.

14

84303598

HITCH

CAT V, 3 Hole

1шт.

14

84418130

CASTING

CAT V, 3 Hole Casting

1шт.

14

84418127

ADJUSTING PLATE

CAT V, 3 Hole Plate

1шт.

14

84418128

SPRING

CAT V, 3 Hole Spring

1шт.

14

280461

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5

CAT V, 3 Hole Bolt

1шт.

14

280375

NUT,3/4"-10, GC

CAT V, 3 Hole Nut

1шт.

14

84156177

WASHER,0.66" ID x 1.5" OD x 0.12" Thk

CAT V, 3 Hole Washer

1шт.

15

87030492

BOLT,Hex, 1" - 8 x 7 1/4", Gr 8, Spcl

2шт.

16

86992219

LOCK NUT

1, NC

2шт.

17

495-11106

WASHER,1", SAE

10шт.

18

05302150

STAND

Hose

1шт.

19

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

20

30026030

TUBE

Manual Canister

1шт.

21

32252000

JACK ASSY.

1шт.

22

252079A1

BOLT

1-1/4 x 5, NC, gr 8

2шт.

23

496-81017

WASHER,1 3/8" x 2 1/2" x .156", HDN

8шт.

24

86992220

NUT

1-1/4, NC

2шт.

25

87425680

DECAL

Important Rear Jack

1шт.

26

87668160

DECAL

Transport, Turning Hazard

1шт.

27

84242837

OPEN END WRENCH

1шт.

28

A33497

LINCH PIN,4.76mm OD Pin

1шт.
