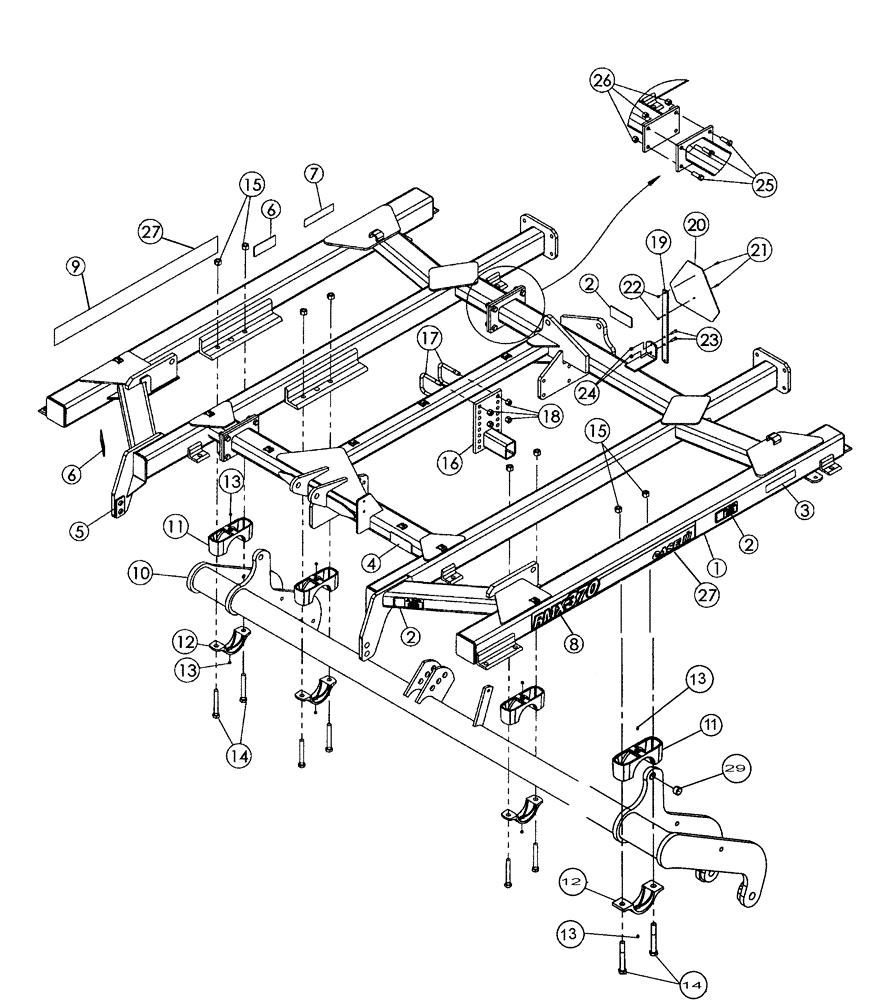

Запчасти Case IH RMX370 (39.100.02) - 28 - 37 FOOT MAIN FRAME PARTS (39) - FRAMES AND BALLASTING

1

448380A1

FRAME ASSY

Main, LH, Inc. 2 - 4

1шт.

2

18534227

DANGER DECAL

Danger

2шт.

3

311864A1

REFLECTOR

Amber

1шт.

4

18534277

DECAL

Warning

1шт.

5

448382A1

FRAME ASSY

Main, RH, Inc. 6, 7

1шт.

6

18534227

DANGER DECAL

Danger

1шт.

7

311864A1

REFLECTOR

Amber

1шт.

8

86992770

DECAL

RMX370, Lh

1шт.

Used On 2006 And Prior Units

1шт.

8

87735843

DECAL

RMX370, Lh

1шт.

Used On 2007 And After Units

1шт.

9

86992771

DECAL

RMX370, Rh

1шт.

Used On 2006 And Prior Units

1шт.

9

87735844

DECAL

RMX370, Rh

1шт.

Used On 2007 And After Units

1шт.

10

448191A1

ROCKSHAFT

Tandem

1шт.

10

87476811

ROCKSHAFT

Tandem, 37

1шт.

10

84393815

KIT

Complete Rockshaft Update, With Tandems, Not Shown

1шт.

11

86984889

BEARING,97 mm

Wheel Shaft

4шт.

12

86984888

CAP

Wheel Shaft

4шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

8шт.

14

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

7/8 x 6-1/2, NC, gr 5

8шт.

15

87681198

NUT,Hex, 7/8"-9, 0.45 high

7/8, NC

8шт.

16

442025A1

MOUNTING PARTS

Center Shank

1шт.

17

87427185

U-BOLT

3/4 x 4 x 4

2шт.

18

280375

NUT,3/4"-10, GC

4шт.

19

06000099

BRACE

SMV Bracket

1шт.

20

311860A1

EMBLEM

Plate SMV

1шт.

21

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

22

86992211

NUT

1/4, NC

2шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

24

86992213

NUT

3/8, NC

2шт.

25

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8шт.

26

280375

NUT,3/4"-10, GC

8шт.

27

87595770

DECAL

Drip Mold

2шт.

Used On 2007 And After Units

1шт.

28

87594280

DECAL

CIH Logo

2шт.

Used On 2009 And After Models

1шт.

29

112886C1

BUSHING

1-1/4 Inch ID

2шт.
