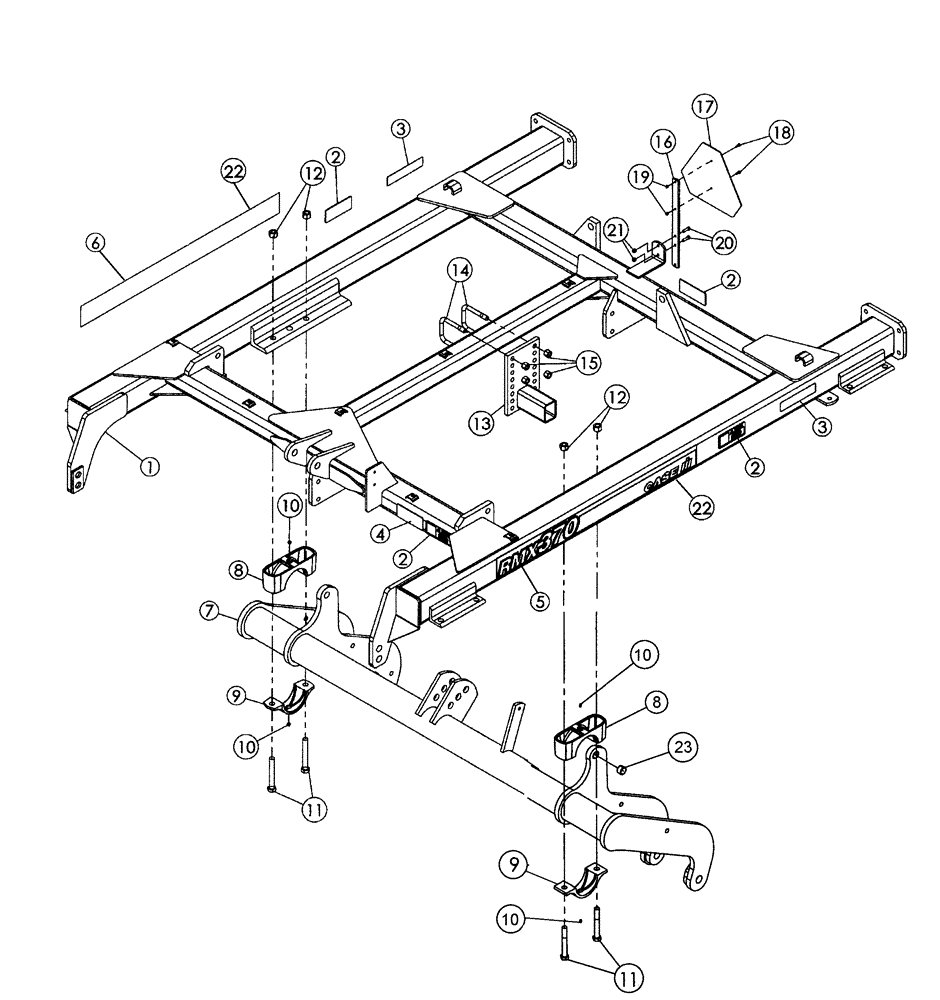

Запчасти Case IH RMX370 (39.100.01) - 19 - 25 FOOT MAIN FRAME PARTS (39) - FRAMES AND BALLASTING

1

451353A1

FRAME ASSY

Main, Inc. 2 - 4, 19 - 22 Units

1шт.

1

451354A1

FRAME ASSY

Main, Inc. 2 - 4, 25 Unit

1шт.

2

18534227

DANGER DECAL

Danger Sign

4шт.

3

311864A1

REFLECTOR

Amber

2шт.

4

18534277

DECAL

Warning Sign

1шт.

5

86992770

DECAL

RMX370, Lh

1шт.

Used On 2006 And Prior Units

1шт.

5

87735843

DECAL

RMX370, Lh

1шт.

Used On 2007 And After Units

1шт.

6

86992771

DECAL

RMX370, Rh

1шт.

Used On 2006 And Prior Units

1шт.

6

87735844

DECAL

RMX370, Rh

1шт.

Used On 2007 And After Units

1шт.

7

443040A1

ROCKSHAFT

Dual, 19 - 22 Units

1шт.

7

87411412

ROCKSHAFT

Tandem, 19 - 22 Units

1шт.

7

441537A1

ROCKSHAFT

Tandem Wheels, 25 - 31 Units

1шт.

8

86984889

BEARING,97 mm

Wheel Shaft

2шт.

9

86984888

CAP

Wheel Shaft

2шт.

10

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

11

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

4шт.

12

87681198

NUT,Hex, 7/8"-9, 0.45 high

7/8, NC

4шт.

13

442025A1

MOUNTING PARTS

Center Shank

1шт.

14

87427185

U-BOLT

3/4 x 4 x 4, (25 - 31 ft)

2шт.

15

280375

NUT,3/4"-10, GC

4шт.

16

06000099

BRACE

SMV Bracket

1шт.

17

311860A1

EMBLEM

Plate SMV

1шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

19

86992211

NUT

1/4, NC

2шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

21

86992213

NUT

3/8, NC

2шт.

22

87595770

DECAL

Case Drip Mold

2шт.

Used On 2007 And After Units

1шт.

22

87594280

DECAL

Case IH

2шт.

Used On 2009 And After Models

1шт.

22

87653276

DECAL

Case IH

2шт.

Used On 2009 And After Units

1шт.

23

87401008

BUSHING,25.4mm ID x 31.75mm OD x 25.4mm L

2шт.

23

112886C1

BUSHING

1 Inch, ID

2шт.
