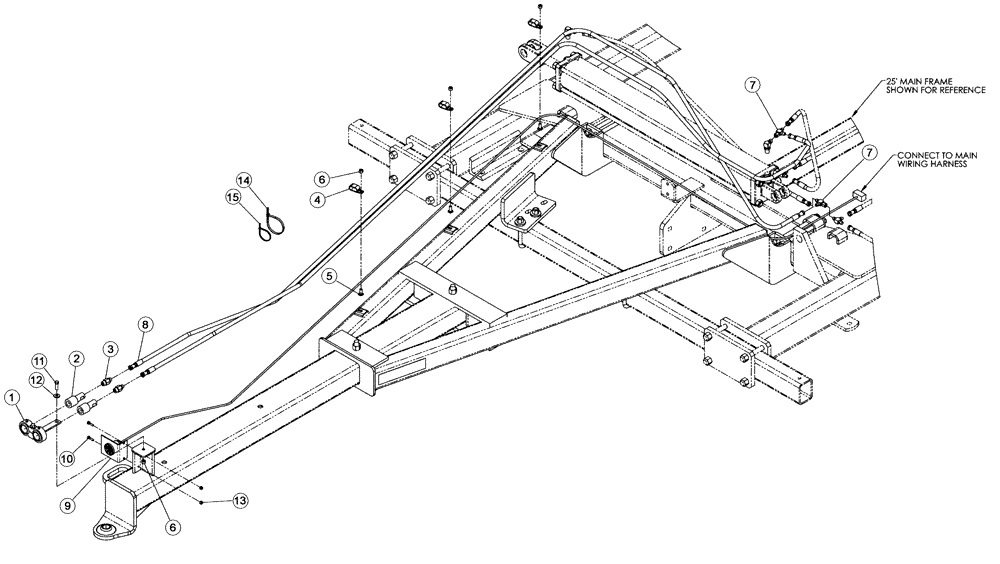

Запчасти Case IH RMX370 (35.100.13) - REAR HITCH HYDRAULICS 19 - 25 FOOT UNITS (35) - HYDRAULIC SYSTEMS

1

25705012

COUPLING

Breakaway

1шт.

2

25705021

COUPLING

Female

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

2шт.

4

22510700

HOSE CLAMP,15.86mm

5/8, Cushioned

3шт.

5

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3шт.

6

86992213

NUT

3/8

4шт.

7

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

8

810601C1

HYDRAULIC HOSE,9.53mm ID x 4191mm L

1/4 x165

2шт.

9

87360594

WIRE HARNESS

Light Harness, 19 - 25 Units

1шт.

10

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

12

495-21044

WASHER,3/8"

1шт.

13

86992211

NUT

1/4, NC

2шт.

14

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP Tie

1шт.

15

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP Tie

1шт.
