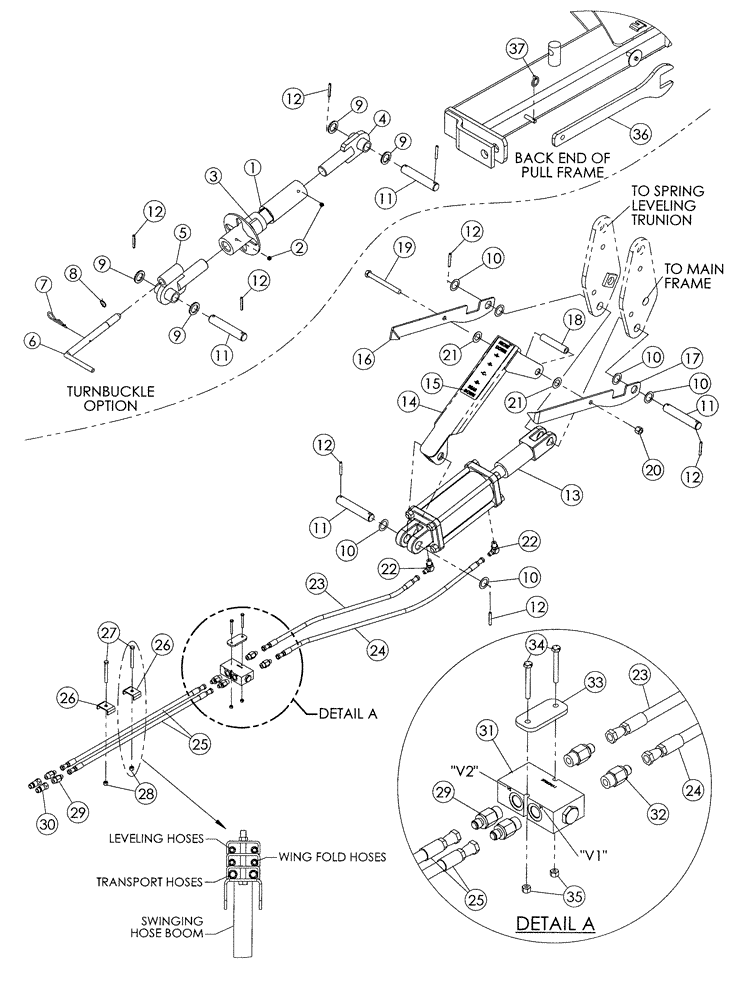

Запчасти Case IH RMX370 (35.100.04) - LEVELING PULL FRAME HYDRAULICS (OPTIONAL) (35) - HYDRAULIC SYSTEMS

1

87413124

BODY

Turnbuckle Inc. 2, 3

1шт.

2

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

3

87395867

DECAL

Depth Control, Turnbuckle

1шт.

4

87413115

CLEVIS

Turnbuckle, RH

1шт.

5

87413116

CLEVIS

Turnbuckle, LH

1шт.

6

87413119

LOCK PIN

Turnbuckle

1шт.

7

1978738C1

HAIR PIN COTTER

3/16" x 3

1шт.

8

103-11100

SNAP RING,#100, .925", Ext

Retaining

1шт.

9

496-81009

WASHER,33.33mm ID x 50.33mm OD x 5.41mm Thk

1.312 x .183

4шт.

10

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1.25, Machine Bushing, 14 ga

6шт.

11

86993942

PIN,31.75mm OD x 184mm L

1.25 Dia x 154 mm

2шт.

12

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

5/16" x 2 1/4", Slotted

4шт.

13

87388864

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 69.85mm Stroke

5 x 8 With Stop

1шт.

Chrome Rod

1шт.

13

87388864R

REMAN-HYD CYLINDER

370 TRUE-TANDEM 19'-37' DISK HARROW, RMX370 TANDEM DISK (6/03-), Both 5 x 8 With Stop, Chrome Rod

1шт.

13

87388864C

CORE-HYD CYLINDER

Return Number

1шт.

13

87388864

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 69.85mm Stroke

5 x 8, With Stop

1шт.

Black Rod (Nitro-Steel)

1шт.

87388864R

REMAN-HYD CYLINDER

370 TRUE-TANDEM 19'-37' DISK HARROW, RMX370 (6/03-)

1шт.

87388864C

CORE-HYD CYLINDER

Return Number

1шт.

14

86993914

INDICATOR

Leveling Inc. 15

1шт.

15

86993500

DECAL

Level Indicator

1шт.

16

87411878

BAR

Pointer, RH

1шт.

17

86993913

BAR

Pointer, LH

1шт.

18

86993912

BUSHING

Level Indicator

1шт.

19

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

1шт.

20

85700693

NUT,5/8" - 11, Gr C

1шт.

21

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

1, Machine Bushing, 14 ga

2шт.

22

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

2шт.

23

1969386C1

HOSE

1/4 In x 23 In

1шт.

24

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

1шт.

25

1254526C2

HOSE ASSY.

1/4 In x 135 In

2шт.

26

06200125

HOSE CLAMP

6шт.

27

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

28

86992213

NUT

3/8, NC

2шт.

29

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

4шт.

30

25705041

COUPLING

3/4 SAEF - Male ISO

2шт.

31

298624A1

VALVE

Check

1шт.

32

1263477C3

HYD CONNECTOR

Orifice - 3/4 SAEM - 9/16 JICM

2шт.

33

09987521

PLATE

Top

1шт.

34

426-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 8

2шт.

35

86992211

NUT

1/4, NC

2шт.

36

395084A1

TOOL

Wrench Turnbuckle

1шт.

37

A33497

LINCH PIN,4.76mm OD Pin

Klik, 3/16 x 1-1/4

1шт.
