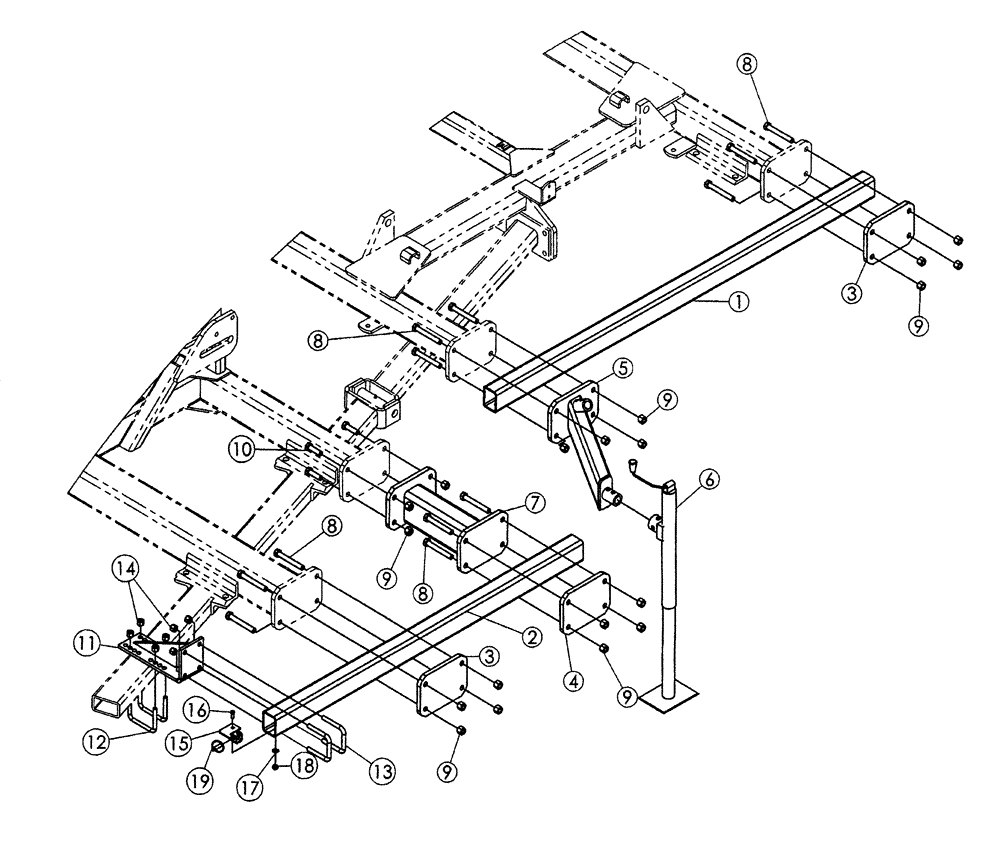

Запчасти Case IH RMX340 (75.200.18) - COIL TINE HARROW MOUNTING PARTS (75) - SOIL PREPARATION

1

86988845

TUBE,2210 mm L

Main Harrow Mount, 87 in, 19 - 22 ft

1шт.

1

86988846

TUBE,2642 mm L

Main Harrow Mount, 104 in, 25 - 34 ft

1шт.

2

86991047

TUBE,1295 mm L

Wing Harrow Mount, 51 in, 19 ft

2шт.

2

86988424

TUBE,1499 mm L

Wing Harrow Mount, 59 in, 22 ft

2шт.

2

86988419

TUBE,1803 mm L

Wing Harrow Mount, 71 in, 25 ft

2шт.

2

86988845

TUBE,2210 mm L

Wing Harrow Mount, 87 in, 28 ft

2шт.

2

86988846

TUBE,2642 mm L

Wing Harrow Mount, 104 in, 31 - 34 ft

2шт.

3

86989133

PLATE

Bolt, Harrow Mount

3шт.

4

86991349

PLATE

Bolt, Harrow Mount, 19 ft

2шт.

4

86989133

PLATE

Bolt, Harrow Mount, 22- 34 ft

2шт.

5

86991544

MOUNTING PARTS

Jack

1шт.

6

32230000

JACK

5000 lb

1шт.

7

86988422

MOUNTING PARTS

Extension, 22 - 25 ft, N/A For 19 ft

2шт.

7

451195A1

MOUNTING PARTS

Extension, 28 - 34 ft, N/A For 19 ft

2шт.

8

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

24шт.

8

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

32шт.

8

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

32шт.

9

280375

NUT,3/4"-10, GC

19 ft

24шт.

9

280375

NUT,3/4"-10, GC

22 - 34 ft

32шт.

10

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

22 - 34 ft

8шт.

11

86984844

BRACKET

Harrow Mount Support, 31 - 34 ft

2шт.

12

445844A1

U-BOLT

BOLT "U" 5/8 x 5-1/4 x 4-1/2, 31 - 34 ft

4шт.

13

87629089

U-BOLT

31 - 34 ft

4шт.

14

85700693

NUT,5/8" - 11, Gr C

16шт.

15

87404819

BRACKET

Crank Handle Storage

1шт.

16

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

17

495-21044

WASHER,3/8"

1шт.

18

86992213

NUT

3/8, NC

1шт.

19

D33805

PIN

Klik, 7/16 x 2

1шт.
