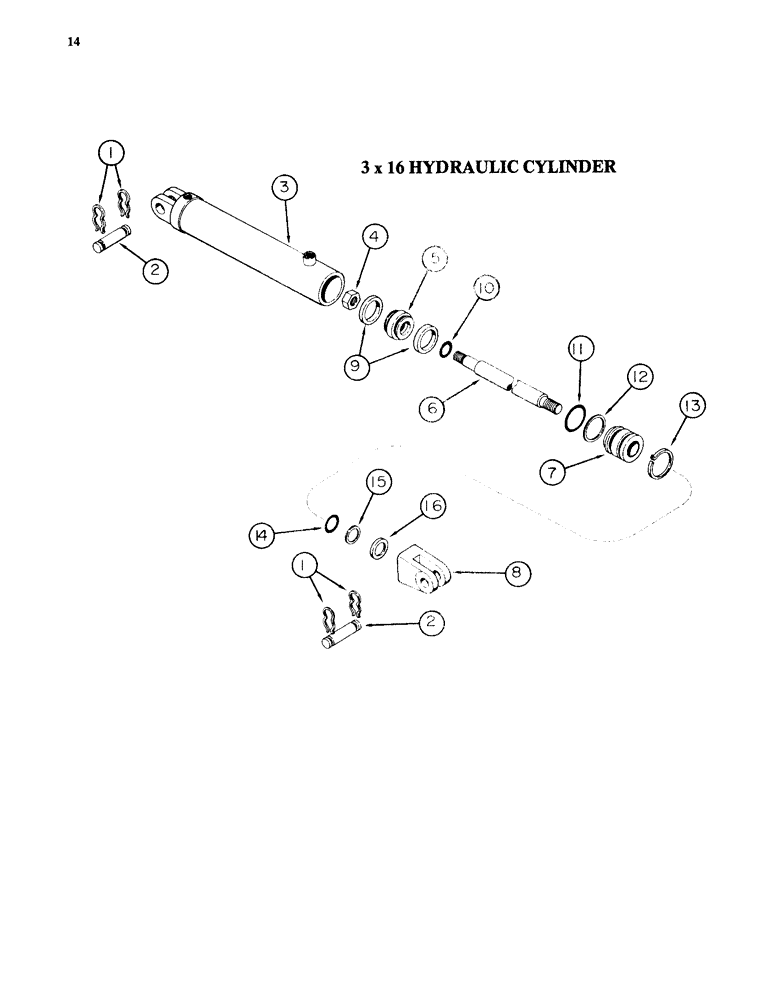

Запчасти Case IH K23A (14) - 3 X 16 HYDRAULIC CYLINDER, PRINCE #P-1046

T53214

CYLINDER

Complete (Prince #P-1046)

4шт.

1

T52926

CLIP

- Hair Pin

2шт.

2

T53058

PIN

- Clevis 1 Dia. x 3-1/2 Long

1шт.

3

T53287

Butt & Tube

1шт.

4

131-1151

Nut - Lock 3/4 - 16 NF

1шт.

5

T53289

PISTON

1шт.

6

T53286

ROD

- Piston

1шт.

REF#6 MEASURES 1 3/8" x 27" 9/4/96

1шт.

7

T53288

GLAND

1шт.

8

T53290

CLEVIS

1шт.

T63226

KIT

- Seal Repair (Prince #PMCK-P-1046)

1шт.

9

T55126

CUP

- "U"

2шт.

10

T55127

Ring - "O"

1шт.

11

D32114

O-RING,0.75" ID x 0.875" OD

Ring - "O"

1шт.

REF#11 SHOULD READ REF#14 AND REF#14 SHOULD READ REF#11 9/4/96

1шт.

12

H754614

WASHER

- Back Up

1шт.

13

T53295

RING

- Retainer

1шт.

14

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

Ring - "O"

1шт.

15

L32992

RING

Washer - Back Up

1шт.

16

T53294

WIPER SEAL

Wiper

1шт.

NOTE:THERE IS ANOTHER SEAL KIT T63254 9/4/96

1шт.
