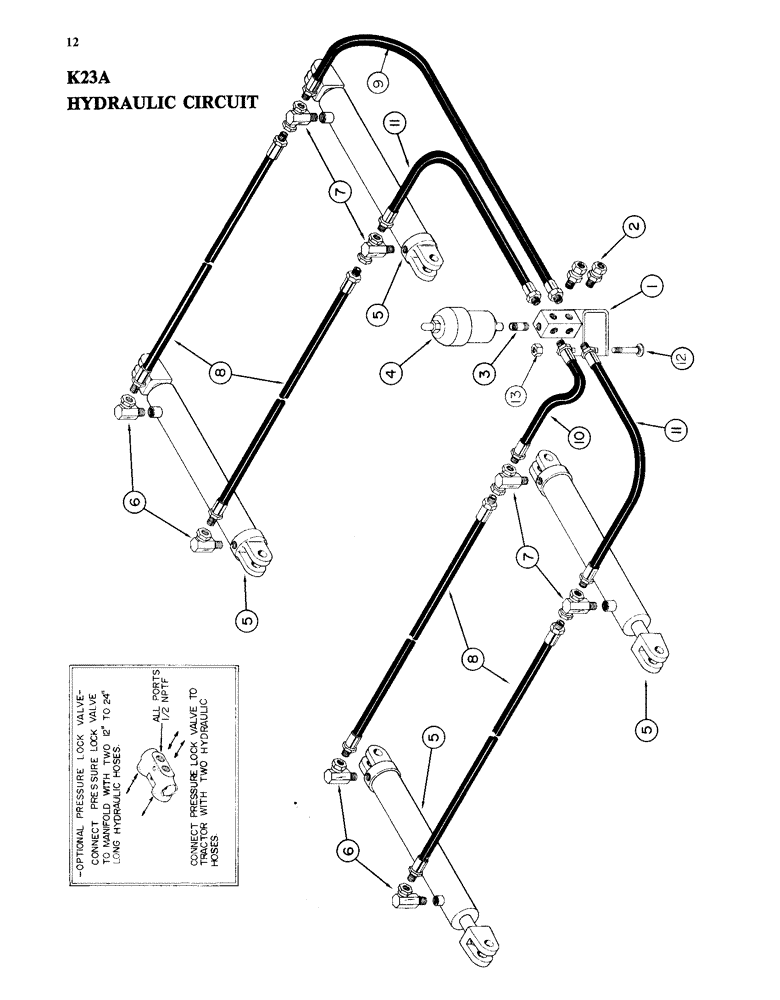

Запчасти Case IH K23A (12) - HYDRAULIC CIRCUIT

1

T54649

Assy Manifold

1шт.

2

T52726

RESTRICTOR

2шт.

3

218-5018

FITTING

Nipple - Adapter

1шт.

4

T53221

Accumulator

1шт.

5

T53214

CYLINDER

3 x 16

4шт.

6

218-922

ELBOW,90 Degree, 1/2" NPTF Male x 1/4" NPSM Fem Sw

- 90deg. Swivel 1/2 NPTF to 1/4 NPTF

4шт.

7

218-1426

FITTING

Tee - Male Branch 1/2 NPTF to 1/4 NPTF

4шт.

8

T55109

Hose - 1/4 x 96

4шт.

9

T55107

Hose - 1/4 x 72

1шт.

10

T55145

HOSE

- 1/4 x 36

1шт.

11

T55146

Hose - 1/4 x 54

2шт.

12

111-538

CARRIAGE BOLT,Short NK, 1/2"-13 x 4", G2

BOLT, CARRIAGE, Short NK, 1/2"-13 x 4", G2

1шт.

13

131-165

NUT,1/2"-13, GA

1/2 NC, PL

1шт.

T52653

Tape - Teflon (Not Shown)

1шт.

1

T55148

Pressure Lock Valve

1шт.
