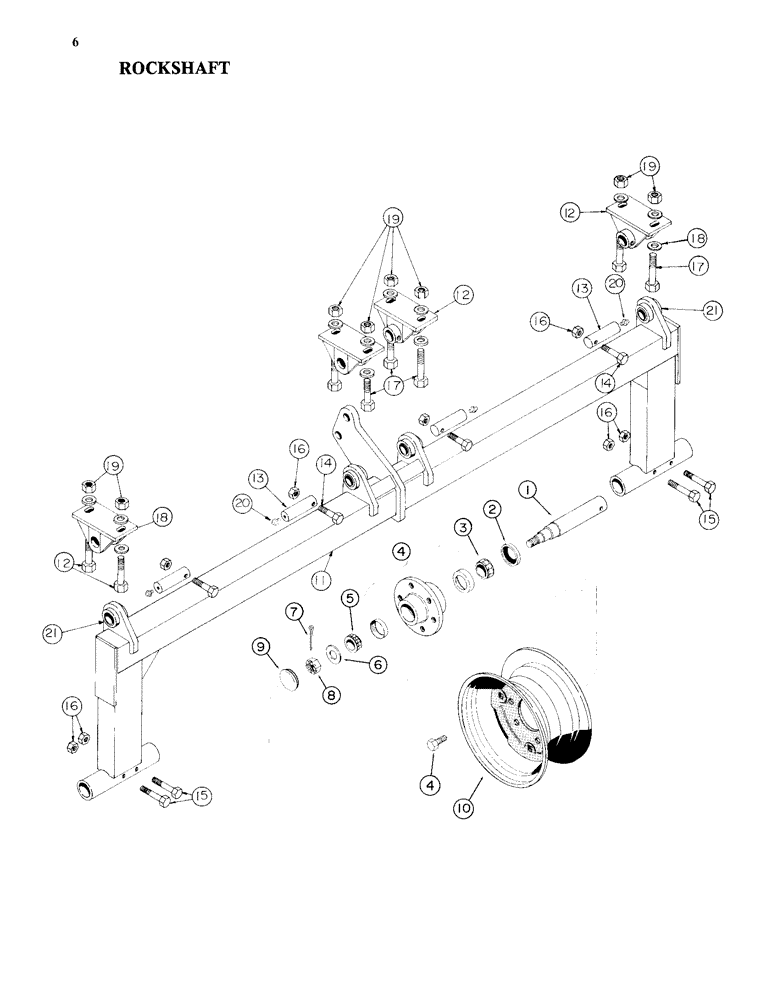

Запчасти Case IH K23A (06) - ROCKSHAFT

1

T52707

SPINDLE

1-15/16 Dia

4шт.

2

T30028

SEAL

4шт.

3

T20079

ROLLER BEARING,1.625" ID x 3.1496" OD x 1.1802"

Cone - Inner Timken 342A

4шт.

4

T30011

HUB

- W/2 Cups & 6 Hub Bolts

4шт.

4

40421

BEARING CUP

Cup - Inner Timken 332

4шт.

4

29977

Cup - Outer Timken 14276

4шт.

4

A30064

BOLT

Hub Bolt 1/2 x 1 NF

24шт.

5

29976

Cone - Outer Timken 14137A

4шт.

6

195-110

WASHER,7/8"

7/8

4шт.

7

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

4шт.

8

25-1314

SLOTTED NUT,7/8"-14, G5

7/8 NF

4шт.

9

T30029

HUB CAP

Cap - Hub

4шт.

10

T53528

WHEEL

15 x 8 - 6 Hole

4шт.

11

T53205

Rockshaft W/4 Bushings

1шт.

12

T54645

BASE

- Rockshaft Bearing HWTF10 and 11

4шт.

12

T53206

Base - Rockshaft Bearing HWTF9

4шт.

13

T51587

PIN

- Retainer 1-1/2 Dia. x 5"

4шт.

14

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Machine Bolt 3/8 x 2-1/2 NC, PL, GR5

4шт.

15

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

4шт.

16

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

3/8 NC, PL

8шт.

17

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

HWTF10 & 11 Hex, 3/4"-10 x 5", G5

8шт.

17

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

HWTF9 Hex, 5/8"-11 x 4 1/2", G5

8шт.

18

195-109

WASHER,3/4"

Cut Washer 3/4 PL HWTF10 & 11

16шт.

18

195-108

WASHER,5/8"

Cut Washer 5/8 PL HWTF9

16шт.

19

131-385

LOCK NUT,3/4"-10, GA

3/4 NC, PL HWTF10 & 11

10шт.

19

230-41110

LOCK NUT,5/8"-11, GA

5/8 NC, PL HWTF9

8шт.

20

219-15

LUBE NIPPLE,5/16" NPTF

Grease Fitting 5/16 Straight (Drive In)

4шт.

21

T51708

BUSHING

Bronze (Not Shown)

4шт.

FOOTNOTE

1шт.

FOOTNOTE

1шт.

FOOTNOTE

1шт.

FOOTNOTE

1шт.

FOOTNOTE

1шт.
