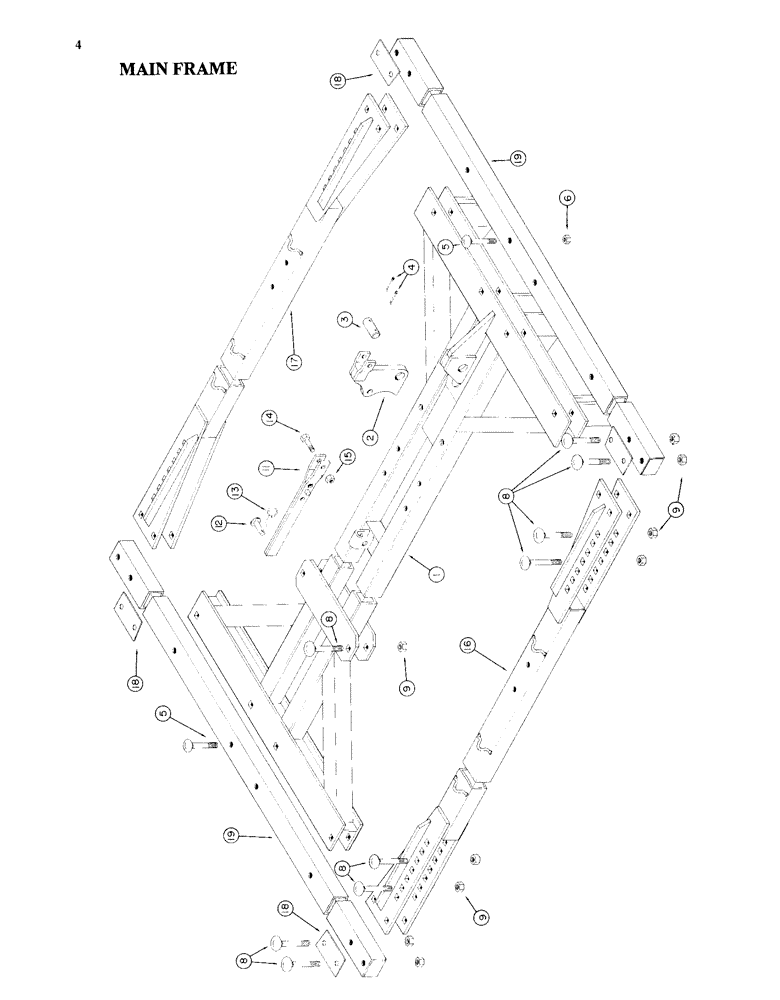

Запчасти Case IH K23A (04) - MAIN FRAME

1

T54656

Frame - Main

1шт.

2

T53200

Hydraulic Cylinder Bracket

1шт.

3

T53201

Pivot Pin

1шт.

4

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

5

111-626

CARRIAGE BOLT,Short NK, 5/8"-11 x 5", G5

5/8 x 5 NC, PL

8шт.

6

230-41110

LOCK NUT,5/8"-11, GA

5/8 NC, PL

8шт.

8

111-800

CARRIAGE BOLT,Short NK, 7/8" -9 x 5 1/2", G5

7/8 x 5-1/2 NC, PL

18шт.

9

131-1140

LOCK NUT,7/8" - 9, Gr A

7/8 NC, PL

18шт.

11

T54551

BAR

Transport Bar

1шт.

12

T53204

Transport Pin

1шт.

13

A30338

PIN

Klik Pin 1/4

1шт.

14

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

15

131-385

LOCK NUT,3/4"-10, GA

3/4 NC, PL

1шт.

16

T54643

Bar - Side RH - HWTF10 and 11

1шт.

16

T53207

Bar - Side RH - HWTF9

1шт.

17

T54644

Bar - Side LH - HWTF10 and 11

1шт.

17

T53208

Bar - Side LH - HWTF9

1шт.

18

T53209

Shim

4шт.

19

T53210

Bar - Front or Rear

2шт.
