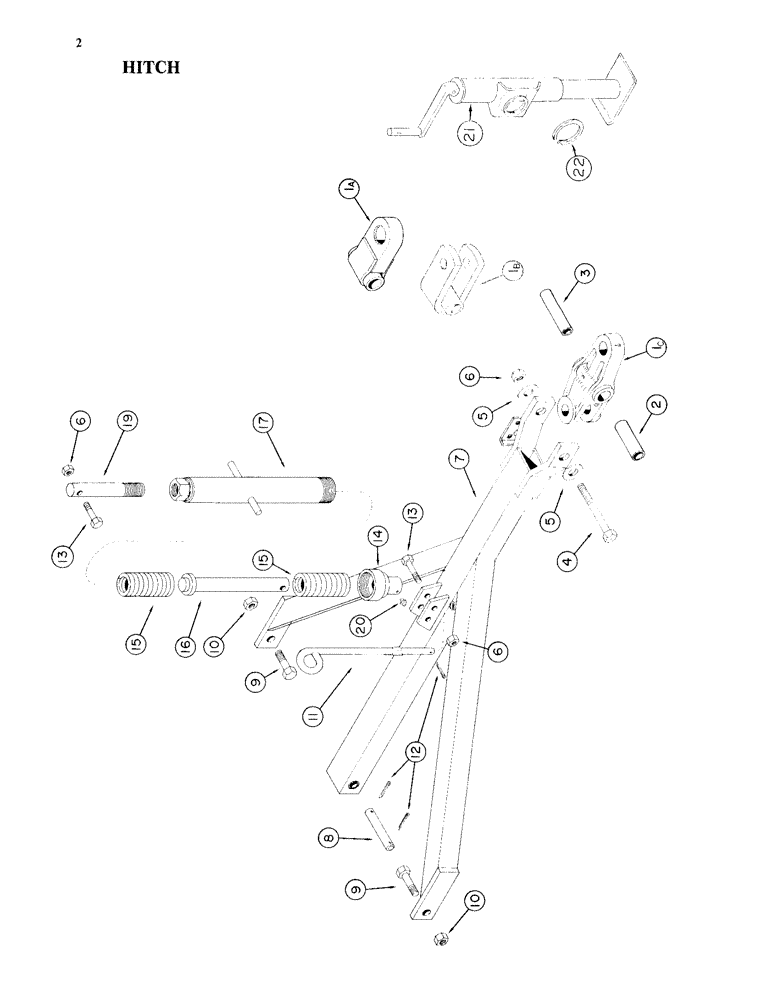

Запчасти Case IH K23A (02) - HITCH

1

T54-658

Clevis - Pull

1шт.

REF#1 REPLACED BY T55873(NOT A SUB) 9/4/96

1шт.

2

T51565

BUSHING

- Clevis

1шт.

3

T51566

BUSHING

- Clevis

1шт.

4

113-735

BOLT,Hex, 3/4" - 10 x 9", Gr 5

Machine Bolt 3/4 x 9 NC, PL

1шт.

5

195-109

WASHER,3/4"

3/4 PL

2шт.

6

131-385

LOCK NUT,3/4"-10, GA

Nut - Lock 3/4 NC, PL

3шт.

7

T53198

TOW BAR

Tongue - Pull

1шт.

8

T53202

PIN

Pivot Pin

1шт.

9

113-902

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

2шт.

10

131-163

LOCK NUT,1"-8, GA

1 NC

2шт.

11

T53995

Hose Holder

1шт.

12

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

3шт.

13

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

14

T51572

CAP

1шт.

15

T51576

SPRING

2шт.

16

T51573

ROD

Piston Rod

1шт.

17

T52699

HOUSING

Spring Housing

1шт.

19

T51574

ROD

- Stud Threaded

1шт.

20

219-98

LUBE NIPPLE,1/4" NPTF

Grease Fitting

1шт.

REF#20 SHOULD USE 219-15

1шт.

21

T51689

JACK

1шт.

22

T33700

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.
