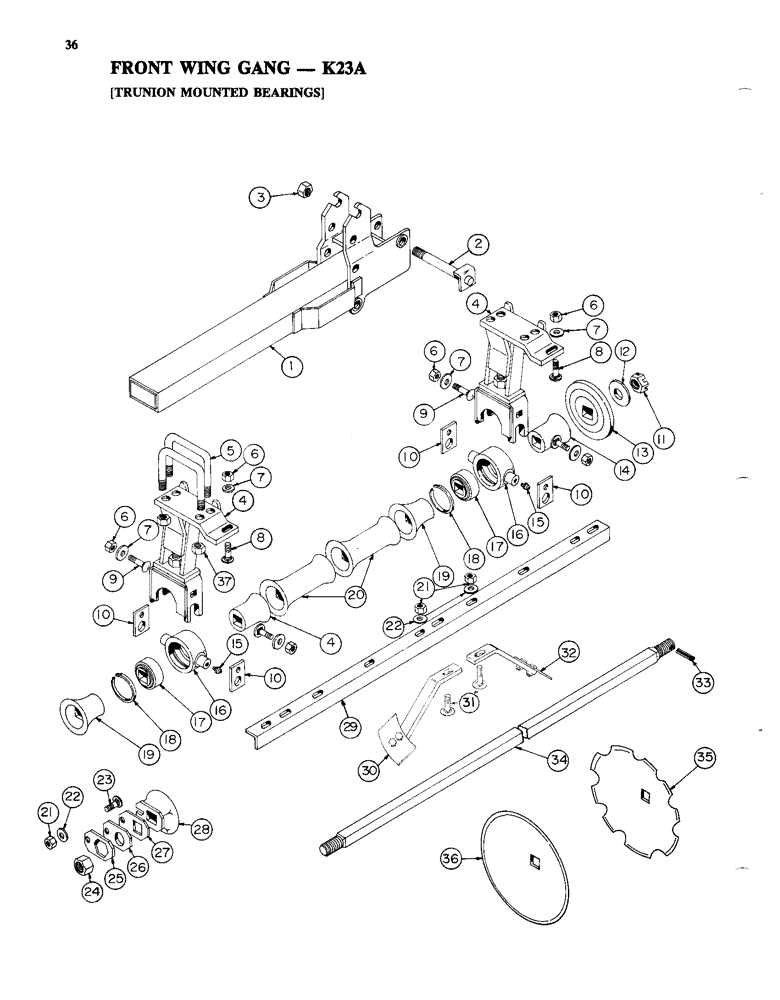

Запчасти Case IH K23A (36) - FRONT WING GANG, TRUNION MOUNTED BEARINGS

1

T54076

Frame - Wing Gang 5 Blade (54 Blade)

1шт.

1

T54079

GUARD

Frame - Wing Gang 6 Blade (58 Blade)

1шт.

1

T54080

GUARD

Frame - Wing Gang 7 Blade (62 Blade)

1шт.

2

T54077

PIN

Assy Pivot Pin

1шт.

3

230-41120

LOCK NUT,1 1/4"-7, GA

1-1/4 NC, PL

1шт.

4

T54654

Assy Bearing Riser FRH, RLH

2шт.

4

T54655

Assy Bearing Riser FLH, RRH

2шт.

5

T53186

U-BOLT

"U" Bolt 3/4 Dia

4шт.

6

131-385

LOCK NUT,3/4"-10, GA

5/8 NC, PLT

6шт.

7

195-108

WASHER,5/8"

Cut Washer 5/8 PLT

6шт.

8

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

Carriage Bolt 5/8 x 1-3/4 NC, PL

2шт.

9

111-618

BOLT,Short NK, 5/8"-11 x 2", G5

CARRIAGE, Short NK, 5/8"-11 x 2", G5

4шт.

10

T52681

CLAMP

Trunion 3/8 x 2-1/2 HRMS 3-3/4 Long

4шт.

11

25-1324

SLOTTED NUT,1 1/2"-12, G5

Nut Gang Bolt 1-1/2 NF Slotted

1шт.

12

195-114

WASHER,1 3/8"

Cut Washer 1-3/8 PLT

1шт.

13

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

Bumper Washer

1шт.

14

T51606

BELL HOUSING

End Bell - Small

2шт.

Bearing and Housing (Fully Assembled)

2шт.

15

219-3

LUBE NIPPLE,1/8" - 27 NPTF

Fitting - Grease 1/8 NPT Straight

1шт.

16

T63252

BALL BEARING,39.01mm ID x 101.6mm OD x 35.33mm W

- Bearing

1шт.

17

T51653

BEARING, BALL,38.76mm ID x 100mm OD x 33.34mm W

Bearing - (Fafnir GW211PP3)

1шт.

18

T51654

SNAP RING,4.00", Int, #400

Ring, Snap, 4.00", Int, #400

1шт.

19

T51607

BELL HOUSING

End Bell - Large

2шт.

20

T51611

SPACER

Spool (54 Blade)

1шт.

20

T51611

SPACER

Spool (58 Blade)

2шт.

20

T51611

SPACER

Spool (62 Blade)

3шт.

21

131-165

NUT,1/2"-13, GA

1/2 NC, PL (54 Blade)

5шт.

21

131-165

NUT,1/2"-13, GA

1/2 NC, PL (58 Blade)

6шт.

21

131-165

NUT,1/2"-13, GA

1/2 NC, PL (62 Blade)

7шт.

22

195-106

WASHER,1/2"

Cut Washer 1/2 PL (54 Blade)

6шт.

22

195-106

WASHER,1/2"

Cut Washer 1/2 PL (58 Blade)

7шт.

22

195-106

WASHER,1/2"

Cut Washer 1/2 PL (62 Blade)

8шт.

23

111-528

Carriage Bolt 1/2 x 2 NC, PL

1шт.

24

230-41120

LOCK NUT,1 1/4"-7, GA

1-1/4 NC, PL

1шт.

25

T55051

PLATE

Lock Plate

1шт.

26

T54646

PLATE

Bearing Plate

1шт.

27

T54647

PLATE

Spacer Plate

1шт.

28

T54657

WASHER

End Gang Washer

1шт.

29

T53188

Scraper Bar 33-5/16 (54 Blade)

1шт.

29

T53189

Scraper Bar 42-1/2 (58 Blade)

1шт.

29

T53190

Scraper Bar 51-11/16 (62 Blade)

1шт.

30

T55088

SCRAPER

LH (54 Blade)

4шт.

30

T55088

SCRAPER

LH (58 Blade)

5шт.

30

T55088

SCRAPER

LH (62 Blade)

6шт.

T55102

HALF BLADE

Scraper Blade 3/16 x 4 x 6

1шт.

T55103

SUPPORT ASSY.

Scraper Leg 1/2 x 1-1/2

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Hex Bolt 1/2 x 1-1/2 NC, PL

2шт.

131-165

NUT,1/2"-13, GA

1/2 NC, PL

2шт.

31

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

1/2 x 1-1/2 NC, PL, GR5 (54 Blade)

4шт.

31

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

1/2 x 1-1/2 NC, PL, GR5 (58 Blade)

5шт.

31

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

1/2 x 1-1/2 NC, PL, GR5 (62 Blade)

6шт.

32

T55087

SCRAPER

RH (54 Blade)

4шт.

32

T55087

SCRAPER

RH (58 Blade)

5шт.

32

T55087

SCRAPER

RH (62 Blade)

6шт.

T55012

Scraper Blade 3/16 x 4 x 6 (54 Blade)

1шт.

T55103

SUPPORT ASSY.

Scraper Leg 1/2 x 1-1/2 (54 Blade)

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Hex Bolt 1/2 x 1-1/2 NC, PL (54 Blade)

2шт.

131-165

NUT,1/2"-13, GA

1/2 NC, PL (54 Blade)

2шт.

33

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

1шт.

34

T53195

BOLT

Gang Bolt 1-1/2 SQ. 33-5/8 Long (54 Blade)

1шт.

34

T51598

BOLT

Gang Bolt 1-1/2 SQ. 42-7/8 Long (58 Blade)

1шт.

34

T51599

BOLT

Gang Bolt 1-1/2 SQ. 52-1/8 Long (62 Blade)

1шт.

35

T51615

BLADE

22 x 3/16 CO (54 Blade)

3шт.

35

T51615

BLADE

22 x 3/16 CO (58 Blade)

4шт.

35

T51615

BLADE

22 x 3/16 CO (62 Blade)

5шт.

35

T51694

BLADE

24 x 3/16 CO (54 Blade)

3шт.

35

T51694

BLADE

24 x 3/16 CO (58 Blade)

4шт.

35

T51694

BLADE

24 x 3/16 CO (62 Blade)

5шт.

35

T52697

BLADE

22 x 1/4 CO (54 Blade)

3шт.

35

T52697

BLADE

22 x 1/4 CO (58 Blade)

4шт.

35

T52697

BLADE

22 x 1/4 CO (62 Blade)

5шт.

35

T51603

DISK HARROW

Blade 20 x 3/16 Plain

1шт.

36

T51693

BLADE

24 x 3/16 Plain (54 Blade)

3шт.

36

T51693

BLADE

24 x 3/16 Plain (58 Blade)

4шт.

36

T51693

BLADE

24 x 3/16 Plain (62 Blade)

5шт.

36

T51602

BLADE

22 x 3/16 Plain (54 Blade)

3шт.

36

T51602

BLADE

22 x 3/16 Plain (58 Blade)

4шт.

36

T51602

BLADE

22 x 3/16 Plain (62 Blade)

5шт.

36

T52685

Blade 22 x 1/4 Plain (54 Blade)

3шт.

36

T52685

Blade 22 x 1/4 Plain (58 Blade)

4шт.

36

T52685

Blade 22 x 1/4 Plain (62 Blade)

5шт.

36

T51695

DISC

Blade 20 x 3/16 CO

1шт.

37

131-385

LOCK NUT,3/4"-10, GA

3/4 NC, PL

8шт.
