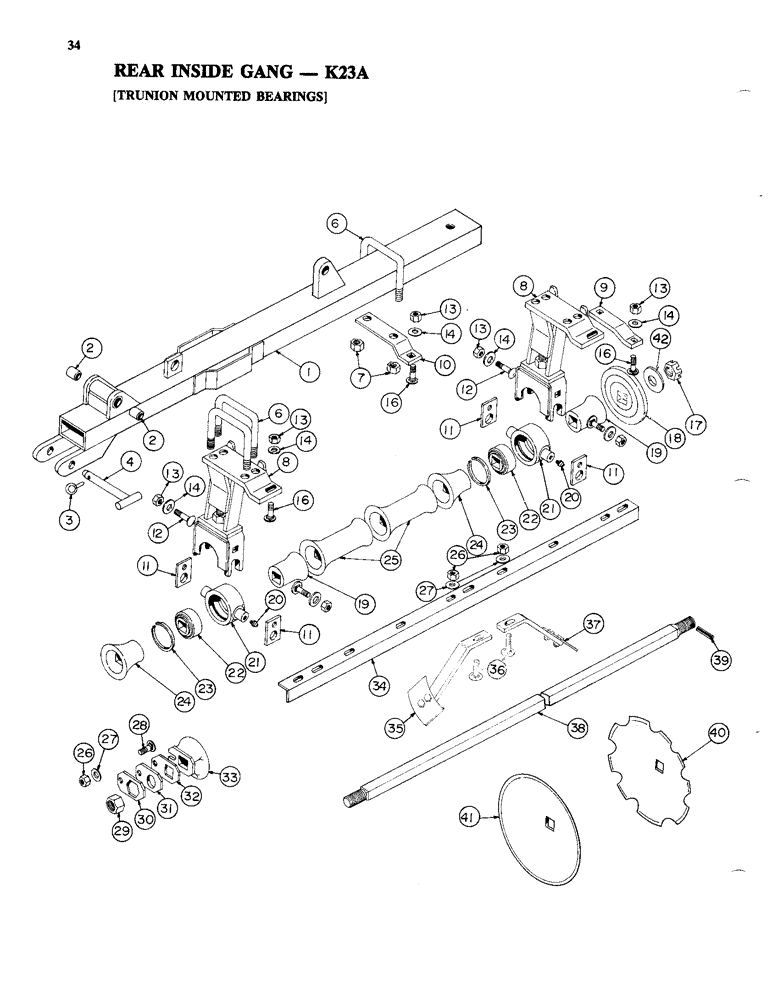

Запчасти Case IH K23A (34) - REAR INSIDE GANG, TRUNION MOUNTED BEARINGS

1

T54651

Assy Gang Frame - Rear

1шт.

2

T53178

BUSHING

[Faflon] 1-1/2 OD x 1-1/4 ID - 1-1/2 Long

2шт.

3

A30338

PIN

Klik Pin

1шт.

4

T53194

PIN

Assy Pivot Pin

1шт.

6

T53186

U-BOLT

"U" Bolt 3/4 Dia

5шт.

7

131-385

LOCK NUT,3/4"-10, GA

3/4 NC, PL

10шт.

8

T54655

Assy Bearing Riser FLH, RRH

2шт.

8

T54654

Assy Bearing Riser FRH, RLH

2шт.

9

T53191

Scraper Bar Support

1шт.

10

T54648

Scraper Bar Support 5/8 x 2 HRMS - 12 Long

1шт.

11

T52681

CLAMP

Trunion 3/8 x 2-1/2 HRMS 3-3/4 Long

4шт.

12

111-618

BOLT,Short NK, 5/8"-11 x 2", G5

CARRIAGE, Short NK, 5/8"-11 x 2", G5

4шт.

13

230-41110

LOCK NUT,5/8"-11, GA

5/8 NC, PLT

7шт.

14

195-108

WASHER,5/8"

Cut Washer 5/8 PLT

7шт.

16

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

Carriage Bolt 5/8 x 1-3/4 NC, PL

3шт.

17

25-1324

SLOTTED NUT,1 1/2"-12, G5

Nut Gang Bolt 1-1/2 NF Slotted

1шт.

18

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

Bumper Washer

1шт.

19

T51606

BELL HOUSING

End Bell - Small

2шт.

Bearing and Housing (Fully Assembled)

2шт.

20

219-3

LUBE NIPPLE,1/8" - 27 NPTF

Grease Fitting

1шт.

21

T51652

Bearing Housing

1шт.

22

T51653

BEARING, BALL,38.76mm ID x 100mm OD x 33.34mm W

Bearing (Fafnir GW211PP3)

1шт.

23

T51654

SNAP RING,4.00", Int, #400

Ring, Snap, 4.00", Int, #400

1шт.

24

T51607

BELL HOUSING

End Bell - Large

2шт.

25

T51611

SPACER

Spool

5шт.

26

131-165

NUT,1/2"-13, GA

1/2 NC, PL

8шт.

27

195-106

WASHER,1/2"

Cut Washer 1/2 PL

8шт.

28

111-528

Carriage Bolt 1/2 x 2 NC, PL

1шт.

29

230-41120

LOCK NUT,1 1/4"-7, GA

1-1/4 NC, PL

1шт.

30

T55051

PLATE

Lock Plate

1шт.

31

T54646

PLATE

Bearing Plate

1шт.

32

T54647

PLATE

Spacer Plate

1шт.

33

T54657

WASHER

End Gang Washer

1шт.

34

T53752

Scraper Bar RH 62-15/16

1шт.

34

T53757

Scraper Bar LH 62-15/16

1шт.

35

T55088

SCRAPER

LH

1шт.

T55102

HALF BLADE

Scraper Blade 3/16 x 4 x 6

1шт.

T55103

SUPPORT ASSY.

Scraper Leg 1/2 x 1-1/2

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Hex Bolt 1/2 x 1-1/2 NC, PL

2шт.

131-165

NUT,1/2"-13, GA

1/2 NC, PL

2шт.

36

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

1/2 x 1-1/2 NC, PL, GR5

7шт.

37

T55087

SCRAPER

RH

7шт.

T55102

HALF BLADE

Scraper Blade 3/16 x 4 x 6

1шт.

T55103

SUPPORT ASSY.

Scraper Leg 1/2 x 1-1/2

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Hex Bolt 1/2 x 1-1/2 NC, PL

2шт.

131-165

NUT,1/2"-13, GA

1/2 NC, PL

2шт.

38

T51625

BOLT

Gang Bolt 1-1/2 SQ 70-5/8 Long

1шт.

39

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

1шт.

40

T51615

BLADE

22 x 3/16 CO

8шт.

40

T51694

BLADE

24 x 3/16 CO

8шт.

40

T52697

BLADE

22 x 1/4 CO

8шт.

41

T51602

BLADE

22 x 3/16 Plain

8шт.

41

T51693

BLADE

24 x 3/16 Plain

8шт.

41

T52685

Blade 22 x 1/4 Plain

8шт.

42

195-114

WASHER,1 3/8"

1-3/8 PL

1шт.
