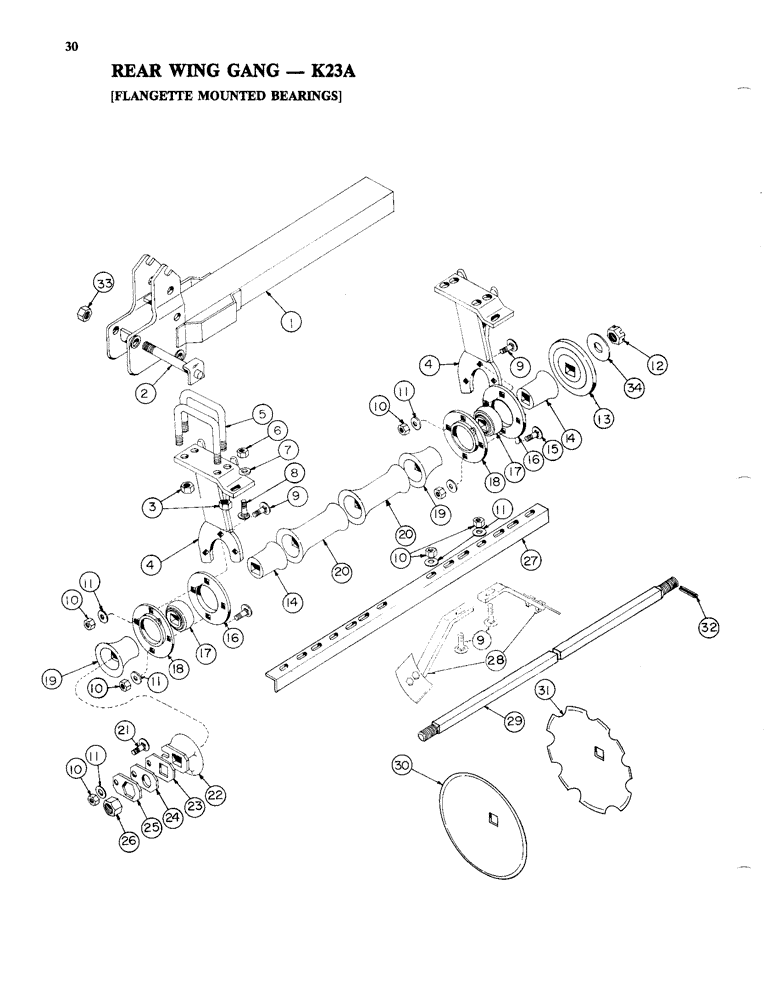

Запчасти Case IH K23A (30) - REAR WING GANG, FLANGETTE MOUNTED BEARINGS

1

T54079

GUARD

Frame - Wing Gang 5 Blade (54 Blade)

1шт.

1

T54080

GUARD

Frame - Wing Gang 6 Blade (58 Blade)

1шт.

1

T54650

Frame - Wing Gang 7 Blade (62 Blade)

1шт.

2

T54077

PIN

Assy Pivot Pin

1шт.

3

131-385

LOCK NUT,3/4"-10, GA

3/4 NC, PL

8шт.

3

131-385

LOCK NUT,3/4"-10, GA

3/4 NC, PL (62 Blade)

10шт.

4

T54652

Assy Bearing Riser FRH, RLH

2шт.

4

T54653

Assy Bearing Riser FLH, RRH

2шт.

5

T53186

U-BOLT

"U" Bolt 3/4 Dia (54, 58 Blade)

4шт.

5

T53186

U-BOLT

"U" Bolt 3/4 Dia (62 Blade)

5шт.

6

230-41110

LOCK NUT,5/8"-11, GA

5/8 NC, PL (54, 58 Blade)

2шт.

6

230-41110

LOCK NUT,5/8"-11, GA

5/8 NC, PL (62 Blade)

3шт.

7

195-108

WASHER,5/8"

Cut Washer 5/8 PLT (54, 58 Blade)

2шт.

7

195-108

WASHER,5/8"

Cut Washer 5/8 PLT (62 Blade)

3шт.

8

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

Carriage Bolt 5/8 x 1-3/4 NC, PL (54, 58 Blade)

2шт.

8

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

Carriage Bolt 5/8 x 1-3/4 NC, PL (62 Blade)

3шт.

9

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

1/2 x 1-1/2 NC, PL, GR5 (54 Blade)

12шт.

9

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

1/2 x 1-1/2 NC, PL, GR5 (58 Blade)

13шт.

9

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

1/2 x 1-1/2 NC, PL, GR5 (62 Blade)

14шт.

10

131-165

NUT,1/2"-13, GA

1/2 NC, PL (54 Blade)

13шт.

10

131-165

NUT,1/2"-13, GA

1/2 NC, PL (58 Blade)

14шт.

10

131-165

NUT,1/2"-13, GA

1/2 NC, PL (62 Blade)

15шт.

11

195-106

WASHER,1/2"

Cut Washer 1/2 PL (54 Blade)

13шт.

11

195-106

WASHER,1/2"

Cut Washer 1/2 PL (58 Blade)

14шт.

11

195-106

WASHER,1/2"

Cut Washer 1/2 PL (62 Blade)

15шт.

12

25-1324

SLOTTED NUT,1 1/2"-12, G5

Nut Gang Bolt 1-1/2 NF Slotted

1шт.

13

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

Bumper Washer

1шт.

14

T51606

BELL HOUSING

End Bell Small

2шт.

15

111-517

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G5

1/2 x 1 NC, PL

2шт.

16

T51609

FLANGE

tte G100MSB2

2шт.

17

T51610

BEARING, BALL,38.76mm ID x 100mm OD x 33.34mm W

Bearing GW211PPB3

2шт.

18

T51608

FLANGE

tte G100MSA2

2шт.

19

T51607

BELL HOUSING

End Bell Large

2шт.

20

T51611

SPACER

Spool (54 Blade)

3шт.

20

T51611

SPACER

Spool (58 Blade)

4шт.

20

T51611

SPACER

Spool (62 Blade)

5шт.

21

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

1/2 x 2 NC, PL

1шт.

22

T54657

WASHER

End Gang Washer

1шт.

23

T54646

PLATE

Bearing Plate

1шт.

24

T54647

PLATE

Spacer Plate

1шт.

25

T55051

PLATE

Lock Plate

1шт.

26

25-1124

NUT,1 1/2"-12, G5

Gang Bolt 1/2 NF

1шт.

27

T53190

Scraper Bar 51-11/16 (54 Blade)

1шт.

27

T53193

Scraper Bar 60-7/8 (58 Blade)

1шт.

27

T53837

Scraper Bar 70-1/16 (62 Blade)

1шт.

28

T55087

SCRAPER

- RH (54 Blade)

6шт.

28

T55087

SCRAPER

- RH (58 Blade)

7шт.

28

T55087

SCRAPER

- RH (62 Blade)

8шт.

T55102

HALF BLADE

Scraper Blade 3/16 x 4 x 6

1шт.

T55103

SUPPORT ASSY.

Scraper Leg 1/2 x 1-1/2

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Hex Bolt 1/2 x 1-1/2 NC, PL

2шт.

131-165

NUT,1/2"-13, GA

1/2 NC, PL

1шт.

28

T55088

SCRAPER

- LH (54 Blade)

6шт.

28

T55088

SCRAPER

- LH (58 Blade)

7шт.

28

T55088

SCRAPER

- LH (62 Blade)

8шт.

T55102

HALF BLADE

Scraper Blade 3/16 x 4 x 6

1шт.

T55103

SUPPORT ASSY.

Scraper Leg 1/2 x 1-1/2

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Hex Bolt 1/2 x 1-1/2 NC, PL

2шт.

131-165

NUT,1/2"-13, GA

1/2 NC, PL

2шт.

29

T51599

BOLT

Gang Bolt 6 Blade 1-1/2 SQ. 52-1/8 Long (54 Blade)

1шт.

29

T51621

BOLT

Gang Bolt 7 Blade 1-1/2 SQ. 61 3/8 Long (58 Blade)

1шт.

29

T51625

BOLT

Gang Bolt 8 Blade 1-1/2 SQ. 70-5/8 Long (62 Blade)

1шт.

30

T51602

BLADE

22 x 3/16 Plain (54 Blade)

4шт.

30

T51602

BLADE

22 x 3/16 Plain (58 Blade)

5шт.

30

T51602

BLADE

22 x 3/16 Plain (62 Blade)

6шт.

30

T51603

DISK HARROW

Blade 20 x 3/16 Plain

1шт.

30

T52689

BLADE

16 x 11 GA. Plain

1шт.

31

T51615

BLADE

22 x 3/16 CO (54 Blade)

4шт.

31

T51615

BLADE

22 x 3/16 CO (58 Blade)

5шт.

31

T51615

BLADE

22 x 3/16 CO (62 Blade)

6шт.

31

T51695

DISC

Blade 20 x 3/16 CO

1шт.

32

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

1шт.

33

230-41120

LOCK NUT,1 1/4"-7, GA

1-1/4 NC, PL

1шт.

34

195-114

WASHER,1 3/8"

Cut Washer 1-3/8 PLT

1шт.
