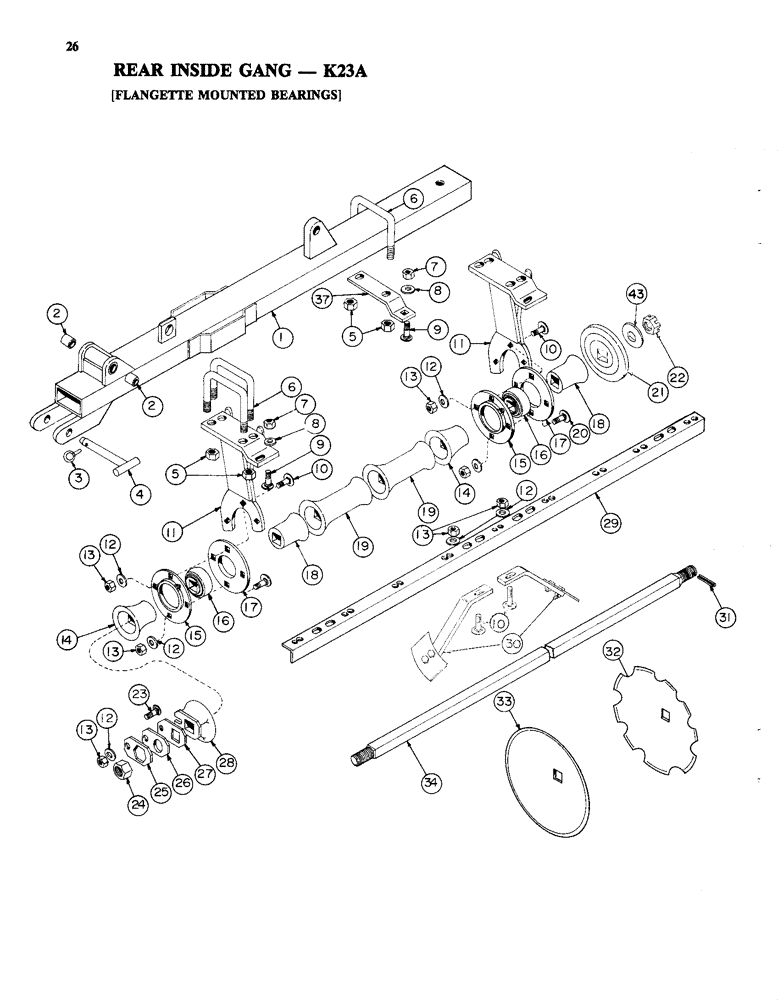

Запчасти Case IH K23A (26) - REAR INSIDE GANG, FLANGETTE MOUNTED BEARINGS

1

T54651

Assy Gang Frame - Rear

1шт.

2

T53178

BUSHING

(Faflon) 1-1/2 OD x 1-1/4 ID 1-1/2 L

2шт.

3

A30338

PIN

Klik Pin

1шт.

4

T53194

PIN

Assy. Pivot Pin

1шт.

5

131-385

LOCK NUT,3/4"-10, GA

3/4 NC, PL

10шт.

6

T53186

U-BOLT

"U" Bolt 3/4 Dia

5шт.

7

230-41110

LOCK NUT,5/8"-11, GA

5/8 NC, PL

3шт.

8

195-108

WASHER,5/8"

Cut Washer 5/8 PL

3шт.

9

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

Carriage Bolt 5/8 x 1-3/4 NC, PL

3шт.

10

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

1/2 x 1-1/2 NC, PL, GR5

17шт.

11

T54652

Assy Bearing Riser FRH, RLH

2шт.

11

T54653

Assy Bearing Riser FLH, RRH

2шт.

12

195-106

WASHER,1/2"

Cut Washer 1/2 PL

21шт.

13

131-165

NUT,1/2"-13, GA

1/2 NC, PL

21шт.

14

T51607

BELL HOUSING

End Bell - Large

2шт.

15

T51608

FLANGE

tte G100 MSA2

2шт.

16

T51610

BEARING, BALL,38.76mm ID x 100mm OD x 33.34mm W

Bearing GW 211PPP3

2шт.

17

T51609

FLANGE

tte G100MSB2

2шт.

18

T51606

BELL HOUSING

End Bell - Small

2шт.

19

T51611

SPACER

Spool

5шт.

20

111-517

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G5

1/2 x 1 NC, PL

2шт.

21

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

Bumper Washer

1шт.

22

25-1324

SLOTTED NUT,1 1/2"-12, G5

Nut Gang Bolt 1-1/2 NF Slotted

1шт.

23

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

1/2 x 2 NC, PL

1шт.

24

25-1124

NUT,1 1/2"-12, G5

Gang Bolt 1-1/2 NF, CH

1шт.

25

T55051

PLATE

Lock Plate

1шт.

26

T54646

PLATE

Bearing Plate

1шт.

27

T54647

PLATE

Spacer Plate

1шт.

28

T54657

WASHER

End Gang Washer

1шт.

29

T53752

Scraper Bar RH 62-15/16 Long

1шт.

29

T53757

Scraper Bar LH 62-15/16 Long

1шт.

30

T55087

SCRAPER

- RH

7шт.

T55102

HALF BLADE

Scraper Blade 3/16 x 4 x 6

1шт.

T55103

SUPPORT ASSY.

Scraper Leg 1/2 x 1-1/2

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Hex Bolt 1/2 x 1-1/2 NC, PL

2шт.

131-165

NUT,1/2"-13, GA

1/2 NC, PL

2шт.

30

T55088

SCRAPER

- LH

7шт.

T55102

HALF BLADE

Scraper Blade 3/16 x 4 x 6

1шт.

T55103

SUPPORT ASSY.

Scraper Leg 1/2 x 1-1/2

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Hex Bolt 1/2 x 1-1/2 - NC, PL

2шт.

131-165

NUT,1/2"-13, GA

1/2 NC, PL

2шт.

31

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

1шт.

32

T51615

BLADE

22 x 3/16 CO

8шт.

33

T51602

BLADE

22 x 3/16 Plain

8шт.

34

T51625

BOLT

Gang Bolt 1-1/2 SQ. 70-5/8 Long

1шт.

37

T54648

Washer 1-3/8

1шт.

43

195-114

WASHER,1 3/8"

Scraper Bar Mount 5/8 x 2 x 12 Long

1шт.
