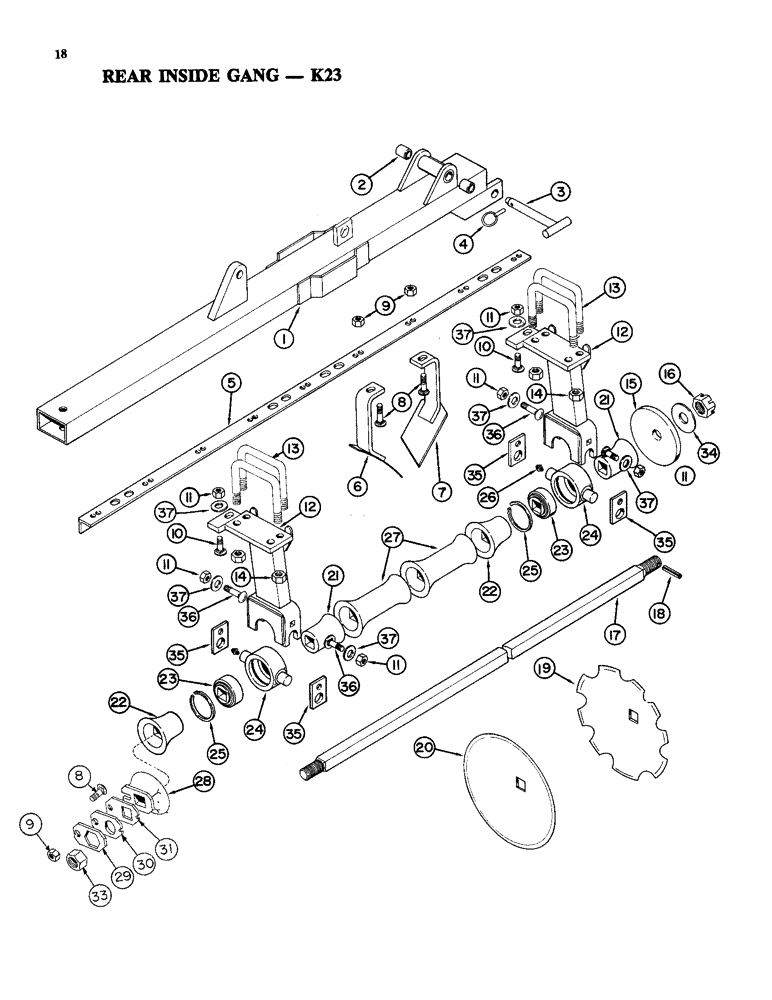

Запчасти Case IH K23A (18) - REAR INSIDE GANG

1

T53177

Frame - Gang Rear

1шт.

2

T53178

BUSHING

- Faflon

2шт.

3

T53194

PIN

- Pivot

1шт.

4

A30338

PIN

- Klik

1шт.

5

T53187

Bar - Scraper 79-1/4

1шт.

6

T53196

SCRAPER

- FRH, RLH

9шт.

7

T53197

SCRAPER

FLH, RRH

9шт.

8

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

Bolt - Carriage 1/2 x 1-1/2 NC, PL, GR5

10шт.

9

131-165

NUT,1/2"-13, GA

Nut - Lock 1/2 NC, PL

10шт.

10

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4 NC, PL

3шт.

11

230-41110

LOCK NUT,5/8"-11, GA

Nut - Lock 5/8 NC, PL

9шт.

12

T53183

RISER

- Bearing FRH, RLH

3шт.

12

T53184

RISER

- Bearing FLH, RRH

3шт.

13

T53186

U-BOLT

Bolt - "U"

6шт.

14

131-385

LOCK NUT,3/4"-10, GA

Nut - Lock 3/4 NC, PL

12шт.

15

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- Bumper

1шт.

16

25-1324

SLOTTED NUT,1 1/2"-12, G5

Nut - Gang Bolt 1-1/2 NF Slotted

1шт.

17

T51638

BOLT

Bolt - Gang 9 Blade 79-7/9

1шт.

18

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

1шт.

19

T51694

BLADE

- 24 Dia x 3/16 CO

9шт.

19

T52697

BLADE

- 22 Dia x 1/4 CO

9шт.

19

T51615

BLADE

- 22 Dia x 3/16 CO

9шт.

20

T51693

BLADE

- 24 Dia x 3/16 Plain

9шт.

20

T52685

Blade - 22 Dia x 1/4 Plain

9шт.

20

T51602

BLADE

- 22 Dia x 3/16 Plain

9шт.

21

T51606

BELL HOUSING

Bell - End Small

3шт.

22

T51607

BELL HOUSING

Bell - End Large

3шт.

Bearing and Housing (Fully Assemblied)

3шт.

23

T51653

BEARING, BALL,38.76mm ID x 100mm OD x 33.34mm W

Bearing - (Fafnir GW211PP3)

1шт.

24

T51652

1шт.

25

T51654

SNAP RING,4.00", Int, #400

Ring, Snap, 4.00", Int, #400

1шт.

26

219-3

LUBE NIPPLE,1/8" - 27 NPTF

Fitting - Grease 1/8 NPT Straight

1шт.

27

T51611

SPACER

Spool - Spacer

5шт.

28

T54657

WASHER

- End Gang

1шт.

29

T51613

PLATE

- Lock

1шт.

30

T54646

PLATE

Bearing Plate

1шт.

31

T54647

PLATE

Spacer Plate

1шт.

33

25-1124

NUT,1 1/2"-12, G5

- Gang Bolt 1-1/2 NF

1шт.

34

195-114

WASHER,1 3/8"

- 1-3/8 PL

1шт.

35

T52681

CLAMP

- Trunion

6шт.

36

111-618

BOLT,Short NK, 5/8"-11 x 2", G5

CARRIAGE, Short NK, 5/8"-11 x 2", G5

6шт.

37

195-108

WASHER,5/8"

- 5/8 PL

9шт.

T53150

SPACER

- 3/8 Thick x 6 Dia (Not Shown)

1шт.
